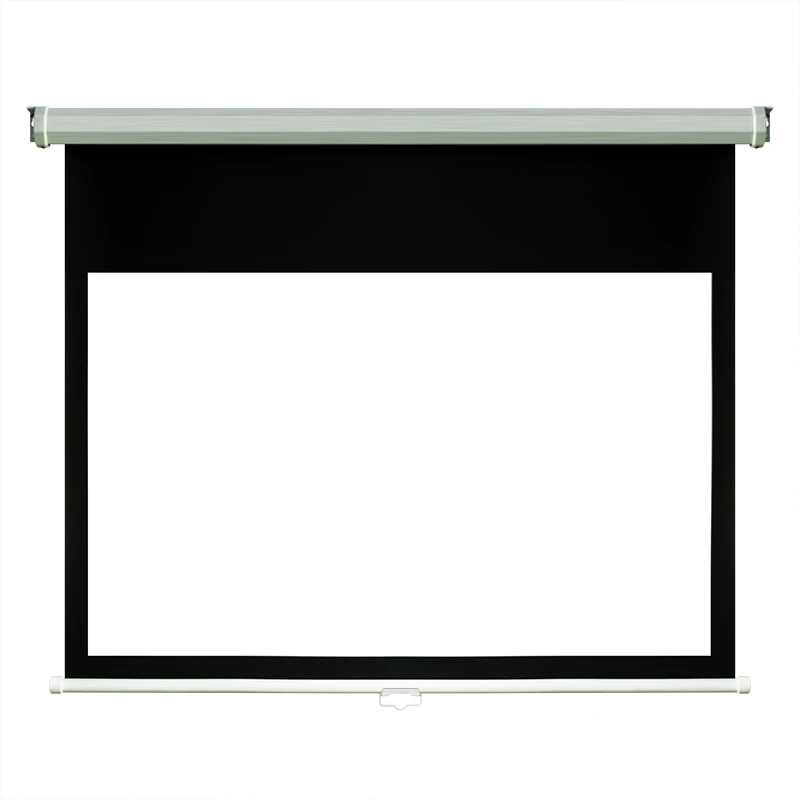

Hexagonal Manual Self-Lock Projection Screen

Hexagonal Manual Series

A six-sided manual pull-down projection screen with a spring self-lock mechanism and easy pull-ring design.

Where This Screen Works Best

Features & Benefits

Self-Locking Pull-Down System

Supports controlled manual stopping at practical viewing heights

Hexagonal Reinforced Structure

Cold-rolled steel hexagonal casing for ceiling or wall mounted installation

Manual Control

Manual self-locking operation with no motor or app control

Hexagonal Casing Design

Ceiling or wall mounted setup for classrooms, meeting rooms and home cinema

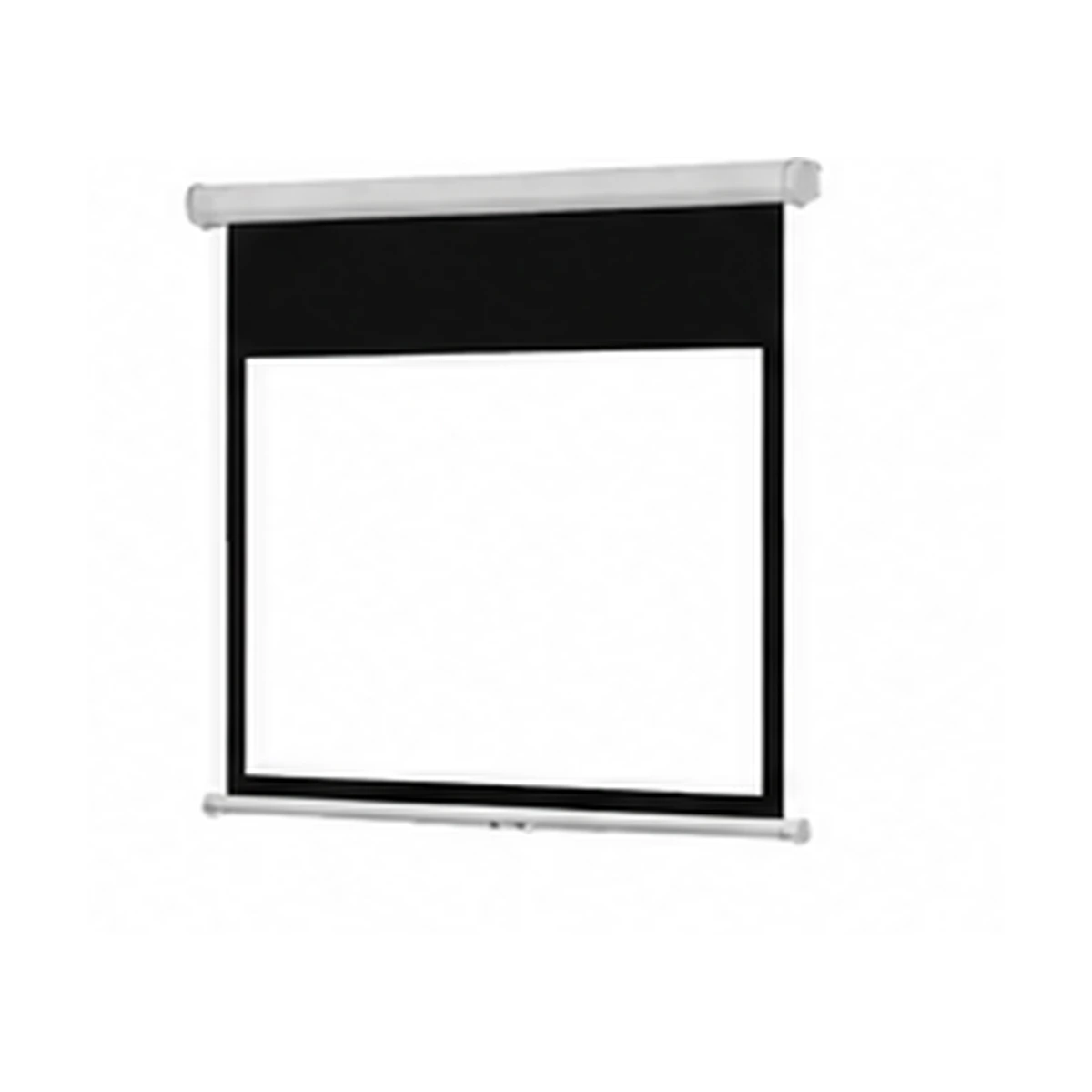

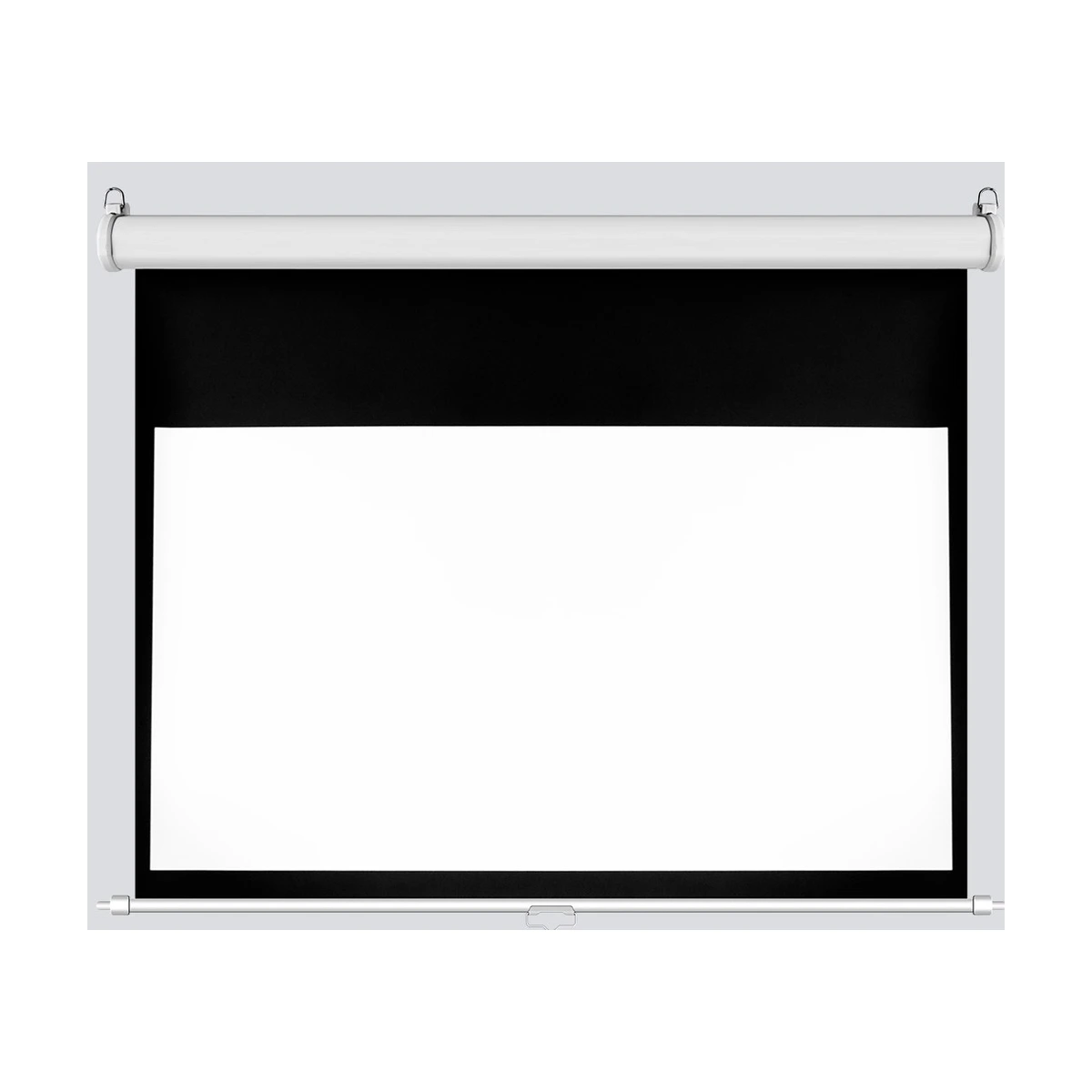

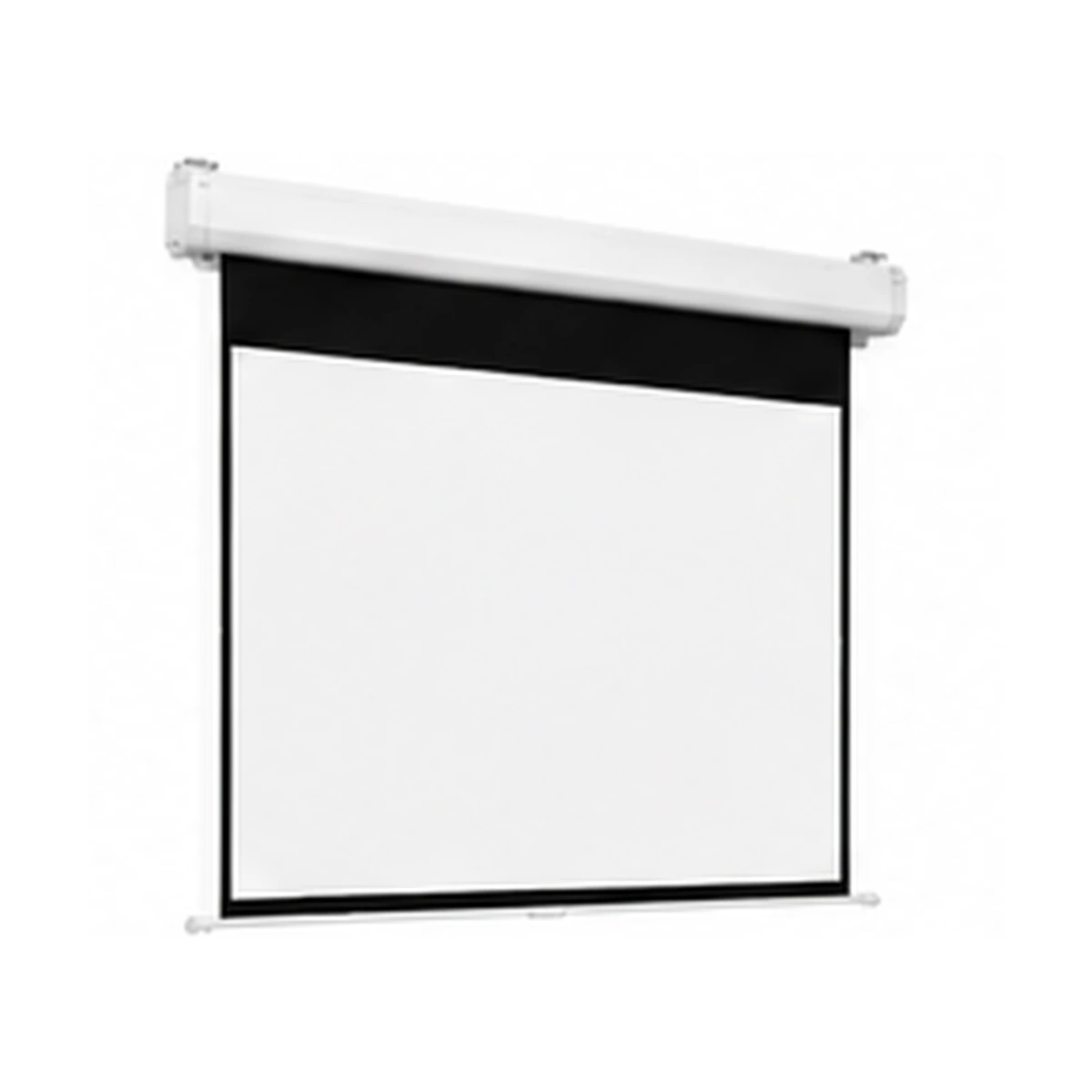

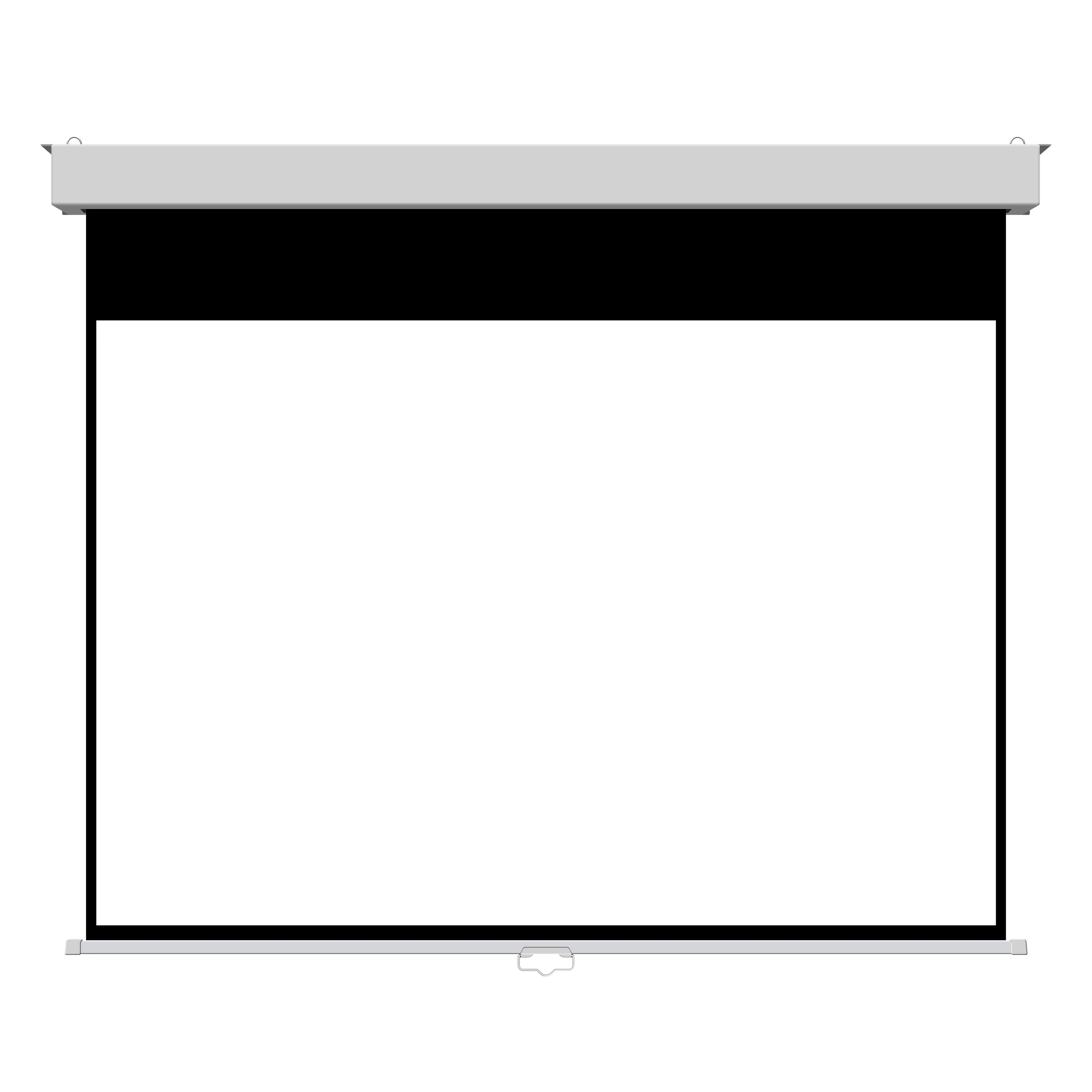

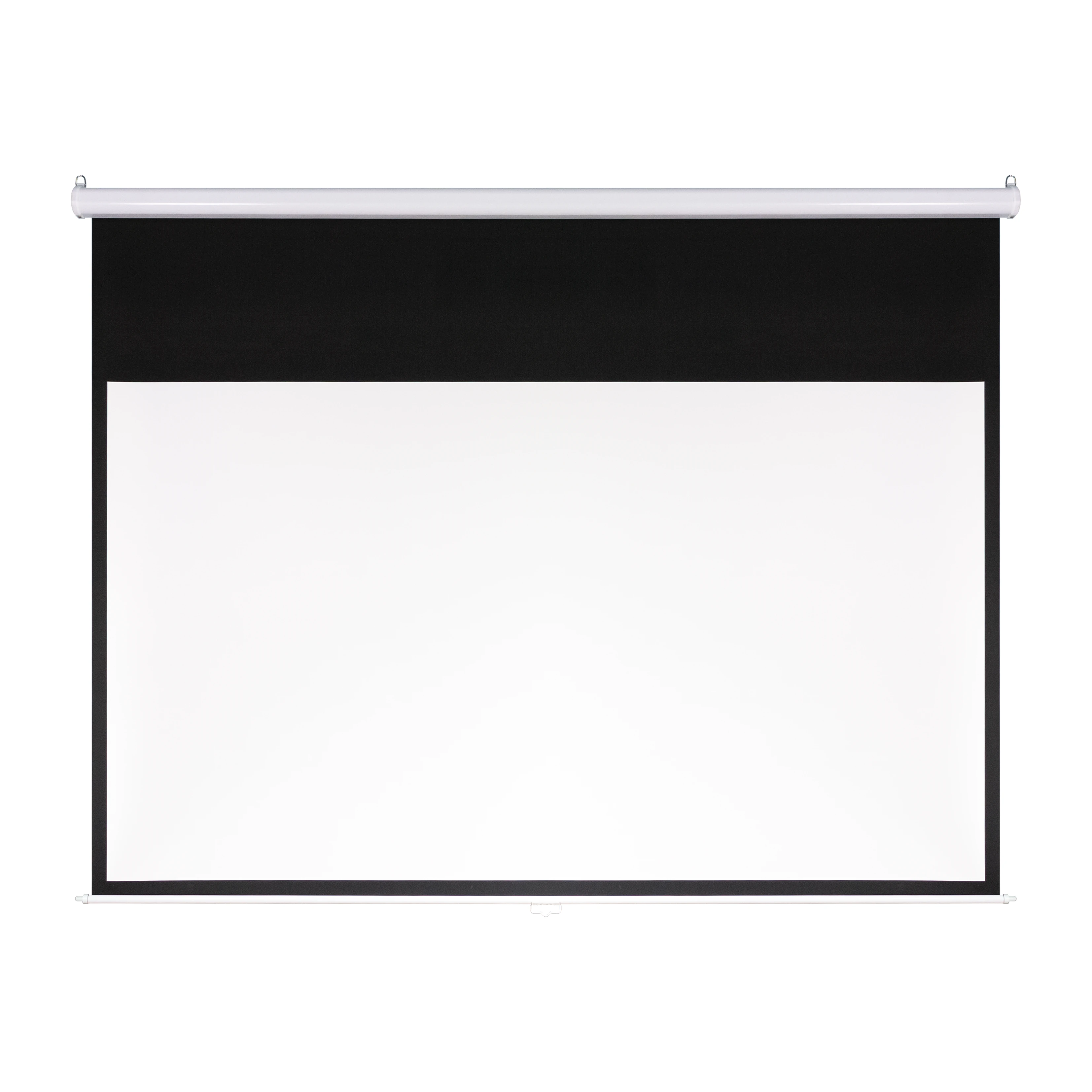

Projection screen extended against a white background

Technical Specifications

SeriesHexagonal Manual Self-Lock Series
Product TypeHexagonal Manual Self-Lock Projection Screen
Available Sizes84″ / 92″ / 100″ / 110″ / 120″
Aspect Ratios4:3 / 16:9
Screen Material Options4 compatible materials — View options
InstallationCeiling or Wall Mounted
ControlManual Self-Locking Operation
Typical Applicationshome cinema, classrooms and training spaces
CustomizationOEM / ODM and project-specific sizes available

Choose a Material for This Screen

White PVC Fabric 1000D projection screen material sample
Default

White PVC Fabric 1000D

A white PVC option listed across selected electric, manual and portable screen specifications.

View material details
White Fiberglass Fabric material sample

White Fiberglass Fabric

A white fiberglass option listed for selected electric, manual and portable screen formats.

View material details
PVC Coated Fabric material sample

PVC Coated Fabric

A coated PVC option listed for selected electric, manual and portable screen formats.

View material details
Grey Fiberglass Fabric material sample

Grey Fiberglass Fabric

A grey fiberglass option listed for selected electric, manual and tripod screen specifications.

View material details
Hexagonal Manual Self-lock Projection Screen + White PVC Fabric 1000D Request This Configuration

Product Details

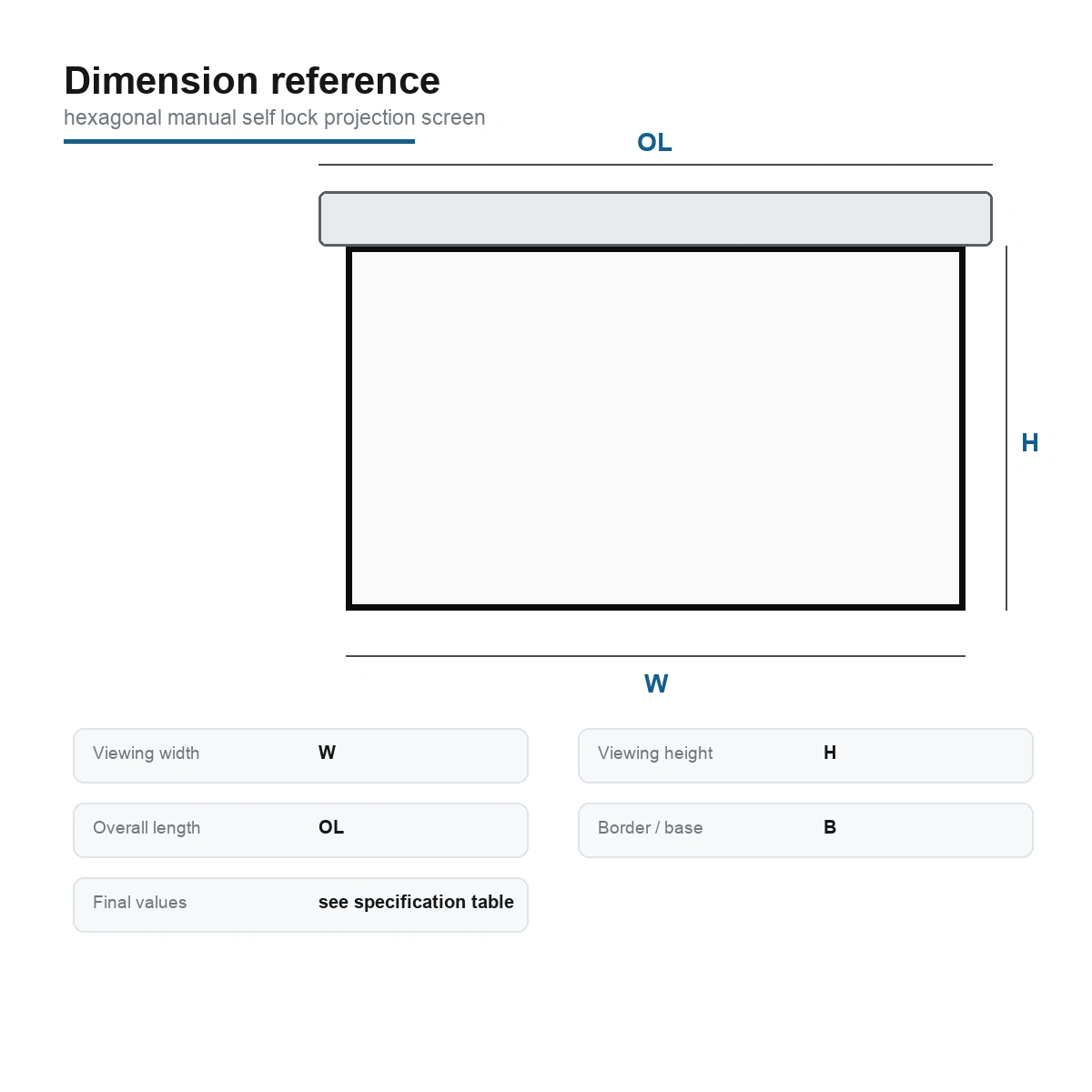

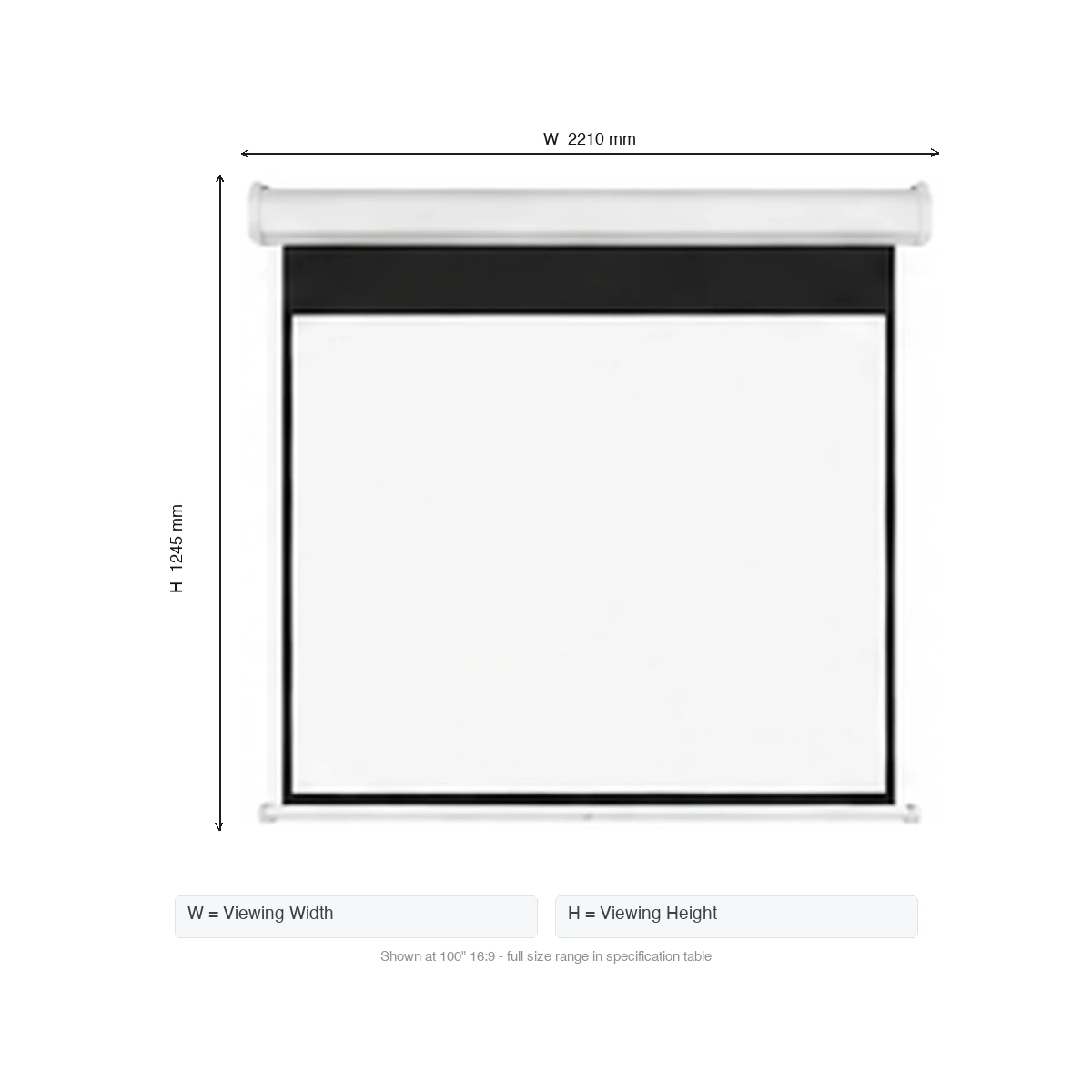

The size illustration is a viewing-area reference. Request the drawing for the selected size to confirm the overall housing dimensions, fixing points and drop.

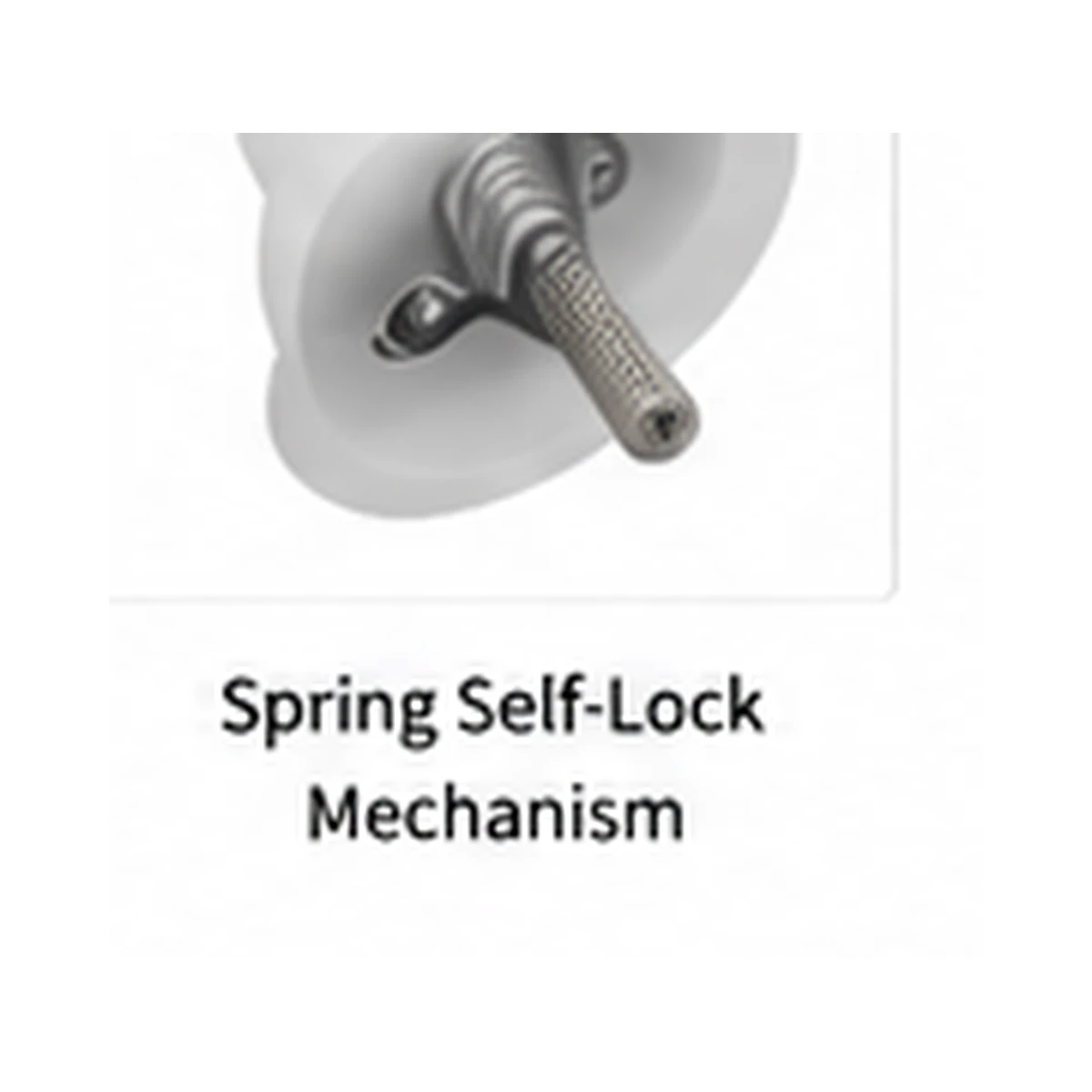

Spring self-lock mechanism

Illustrative viewing-area reference

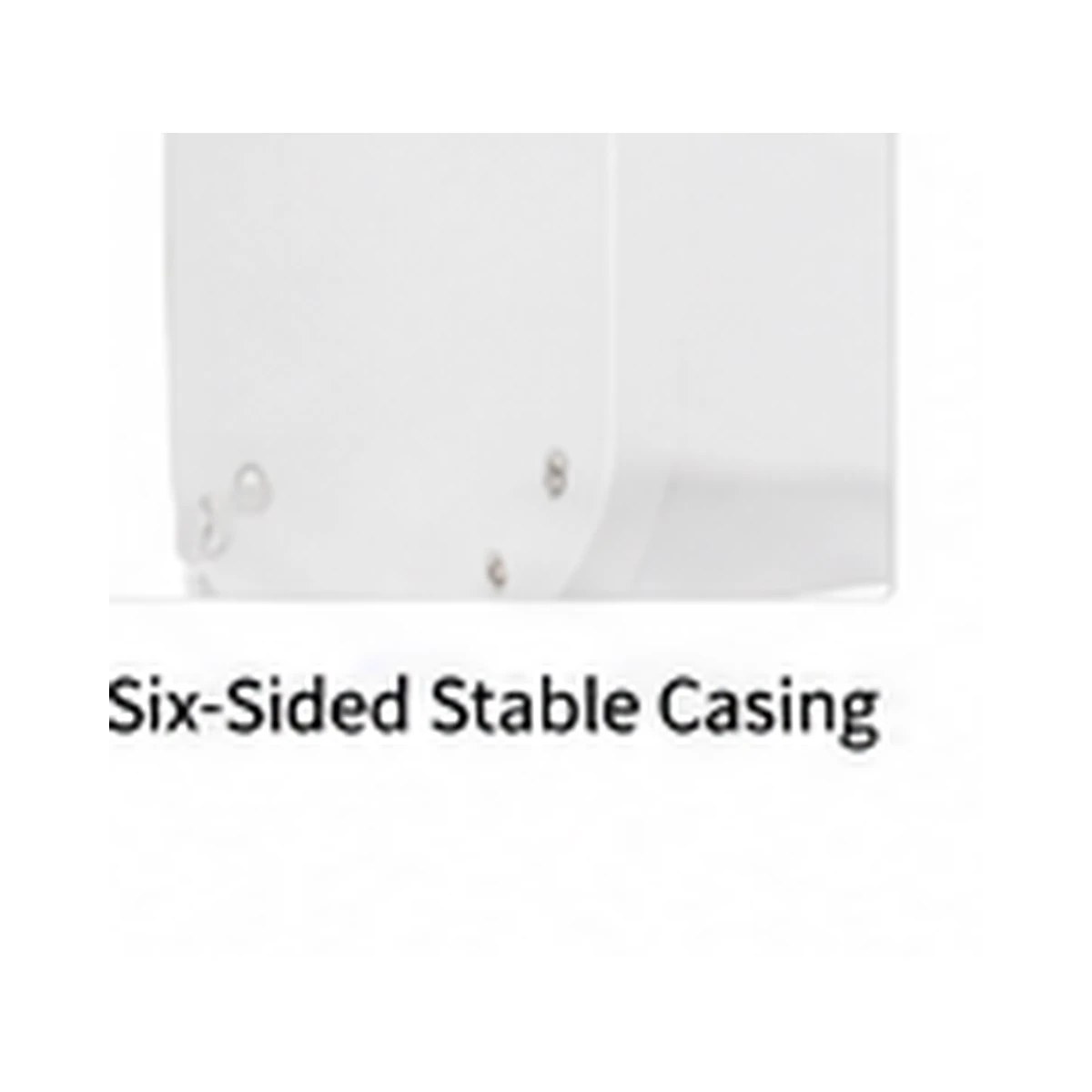

Six-sided housing detail

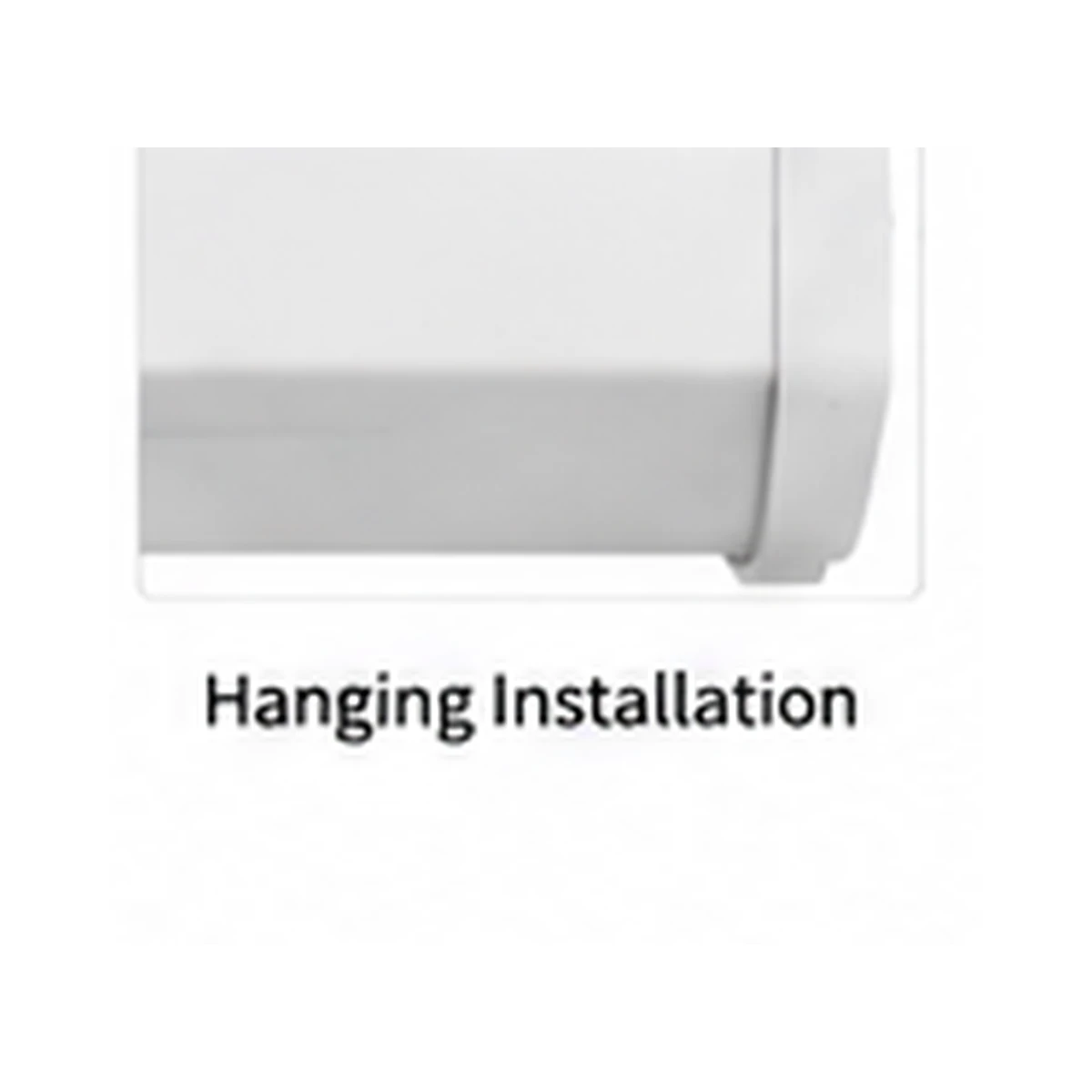

Housing end cap and hanging area

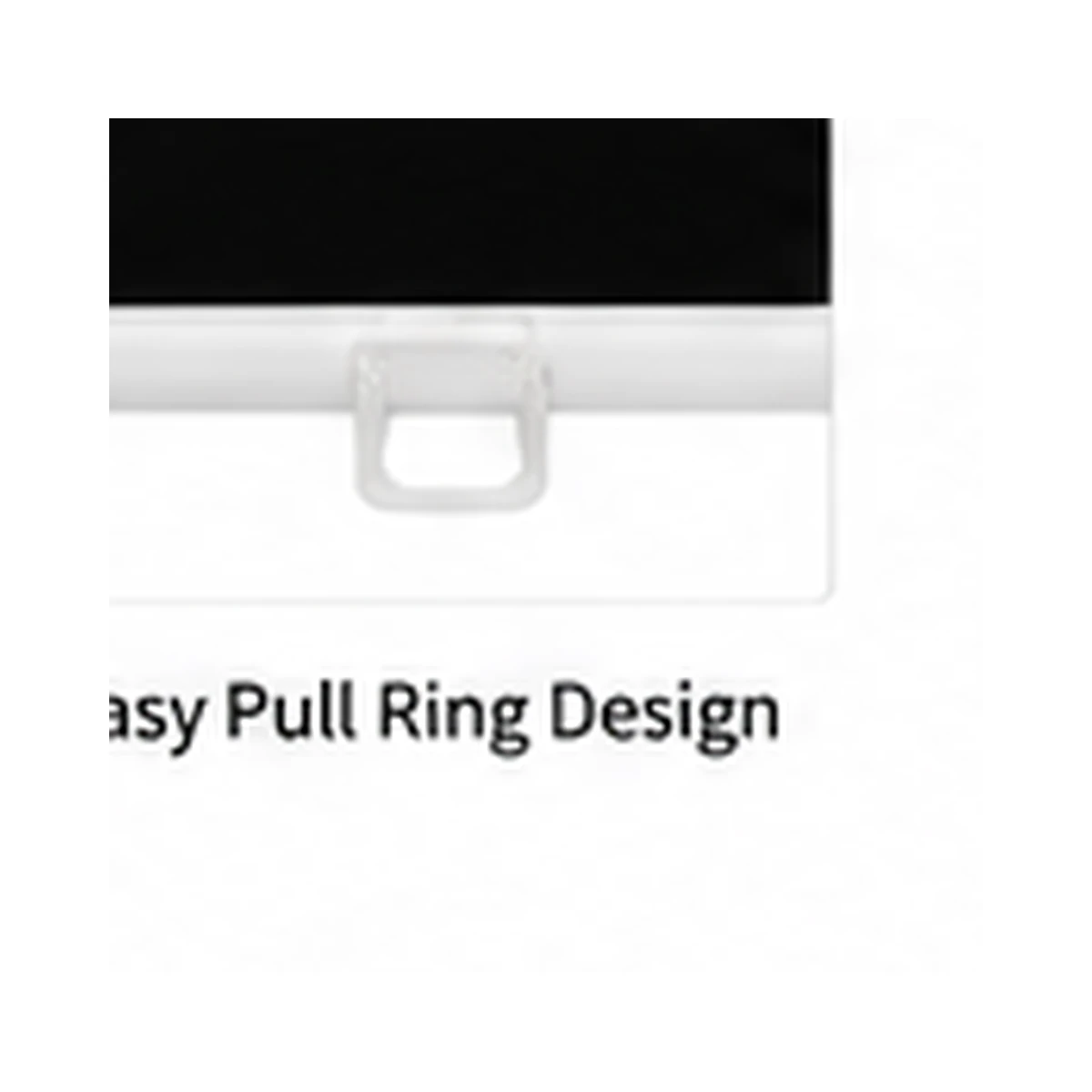

Manual pull ring

Installation & Control

Installation

Control Methods

Product Documents

Request the dimensional sheet, mounting drawing and manual deployment and retraction instructions for the Hexagonal Manual Self-Lock model. Identify the size and surface to confirm the supplied brackets and accessories.

Frequently Asked Questions

It is designed for home cinema, classrooms and training spaces. The final screen material and size should be selected according to projector type, viewing distance and ambient light.

Catalogue sizes include 84″ / 92″ / 100″ / 110″ / 120″, with aspect ratios including 4:3 / 16:9. Project-specific and OEM sizes can also be discussed.

Available material options include White PVC Fabric 1000D / White Fiberglass Fabric / PVC Coated Fabric / Grey Fiberglass Fabric. Contact MGF Screens with your projector type and room-lighting conditions for a material recommendation.

Installation: Ceiling or wall mounted. Control: Manual self-locking operation.

Yes. MGF Screens supports OEM, ODM and project-specific customization, including screen size, aspect ratio, screen material, housing finish, control configuration and packaging.
