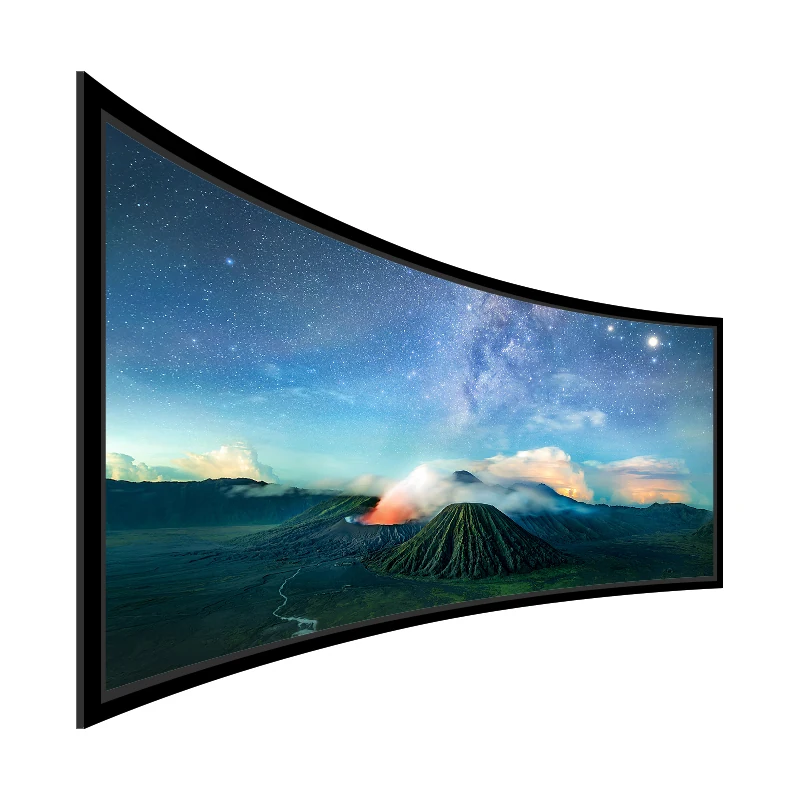

Large Curved Fixed Frame Projection Screen curved side product view with landscape image

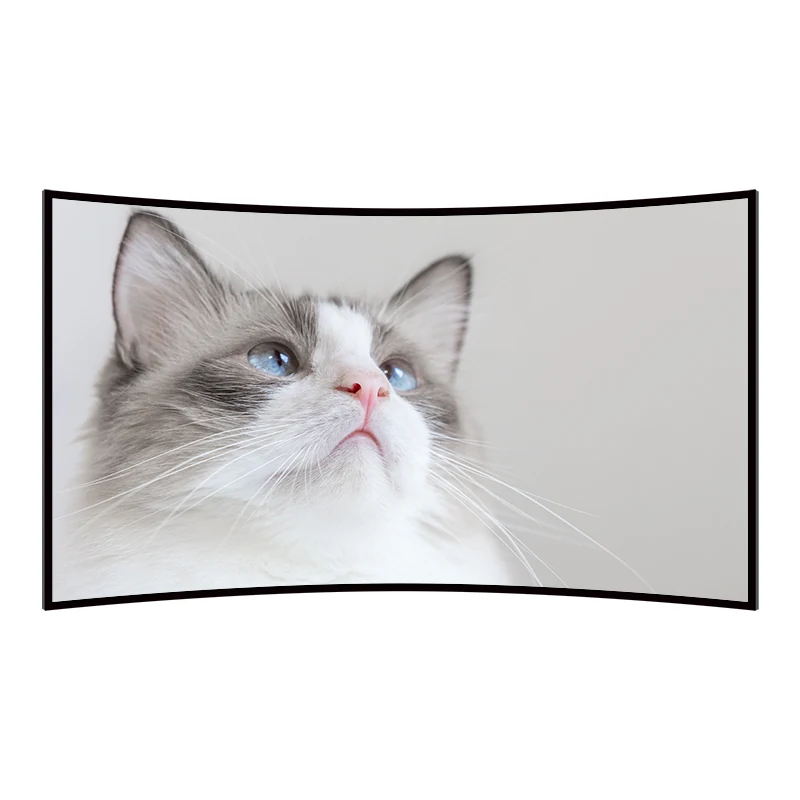

Large Curved Fixed Frame Projection Screen front view with cat image

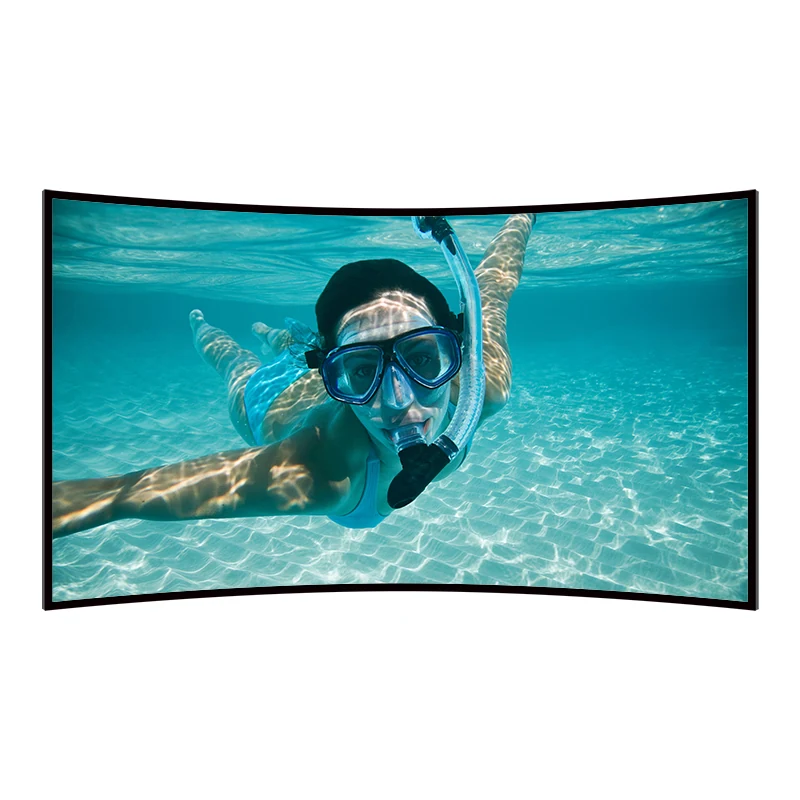

Large Curved Fixed Frame Projection Screen front view with underwater image

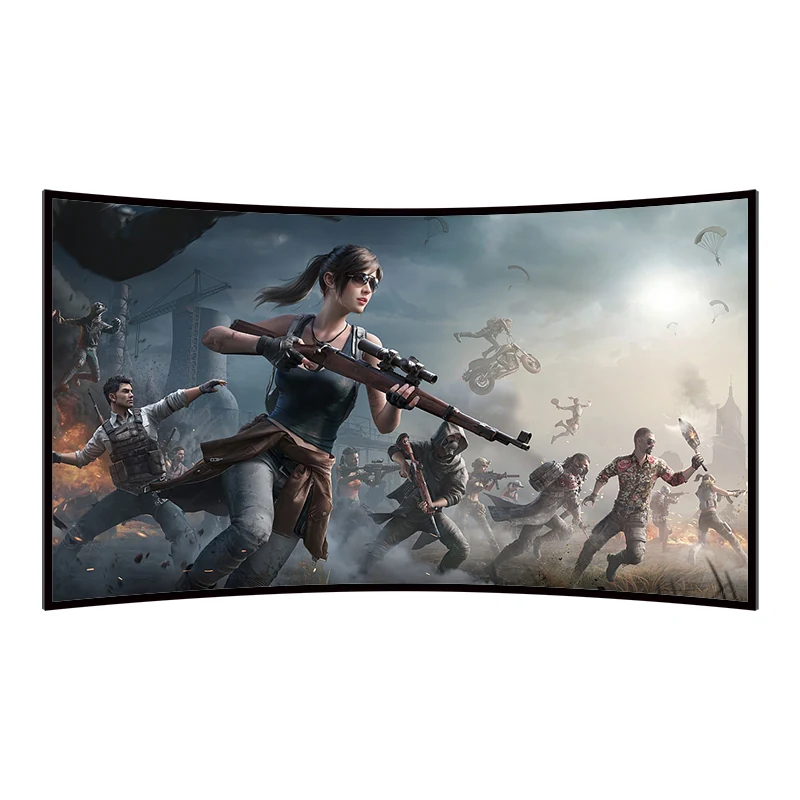

Large Curved Fixed Frame Projection Screen front view with action image

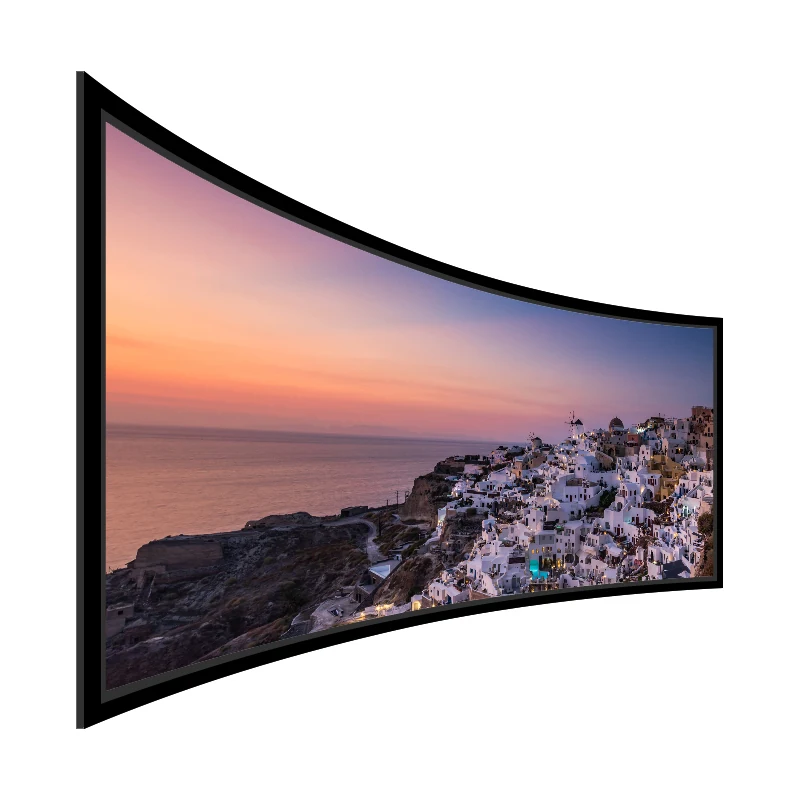

Large Curved Fixed Frame Projection Screen curved side product view with sunset image

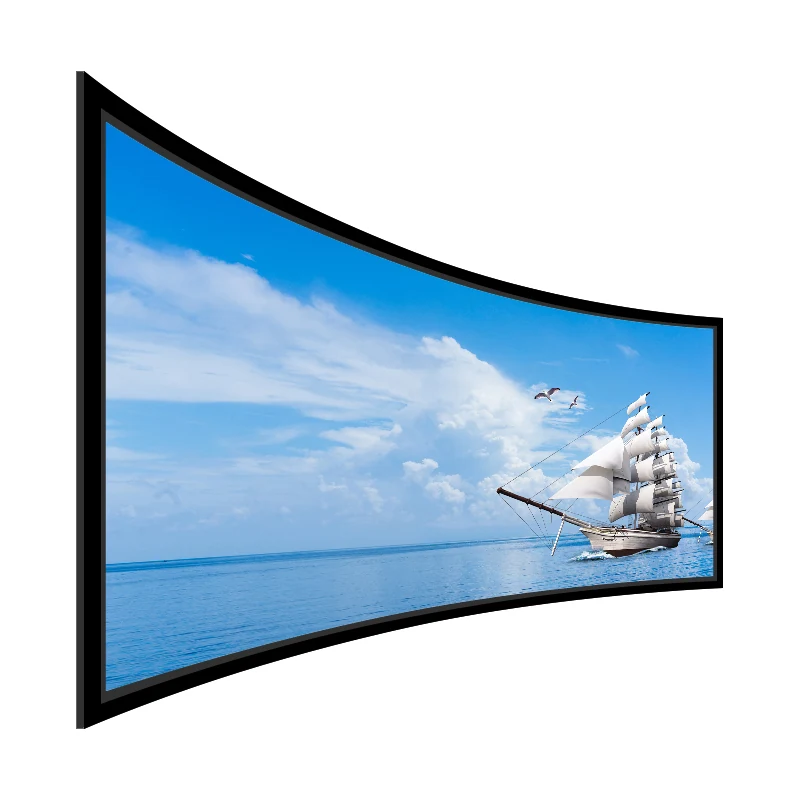

Large Curved Fixed Frame Projection Screen curved side product view with sailing image
Large Curved Fixed Frame Projection Screen blank front product view
Large Curved Fixed Frame Projection Screen rear spring tension detail

Large Curved Fixed Frame Projection Screen

Large Curved Fixed Frame Series

A large curved fixed frame projection screen with an aluminum alloy curved frame, precision spring tensioning and a stable immersive surface for government facilities, large cinema spaces, hotel venues and multimedia display spaces.

  • Aluminum Alloy Frame
  • Inner Insert Frame Structure
  • Curved Screen Profile
  • Precision Spring Tensioning System
  • Permanent Wall Installation
  • Large Venue Projection Fit
Get A Quote View Material Options

Where This Screen Works Best

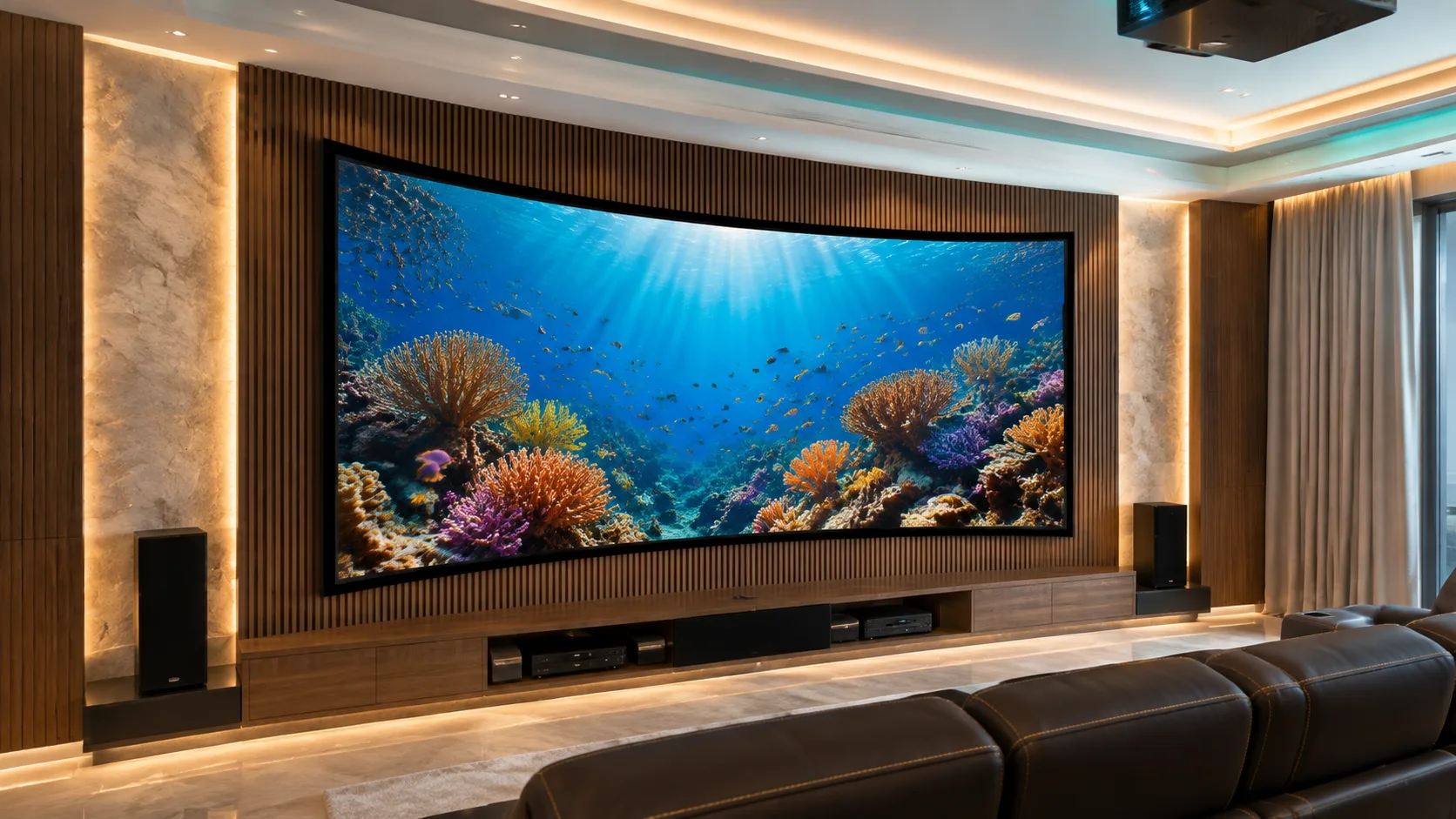

Luxury Panoramic Home Cinema with Large Curved Fixed Frame Projection Screen

Luxury Panoramic Home Cinema

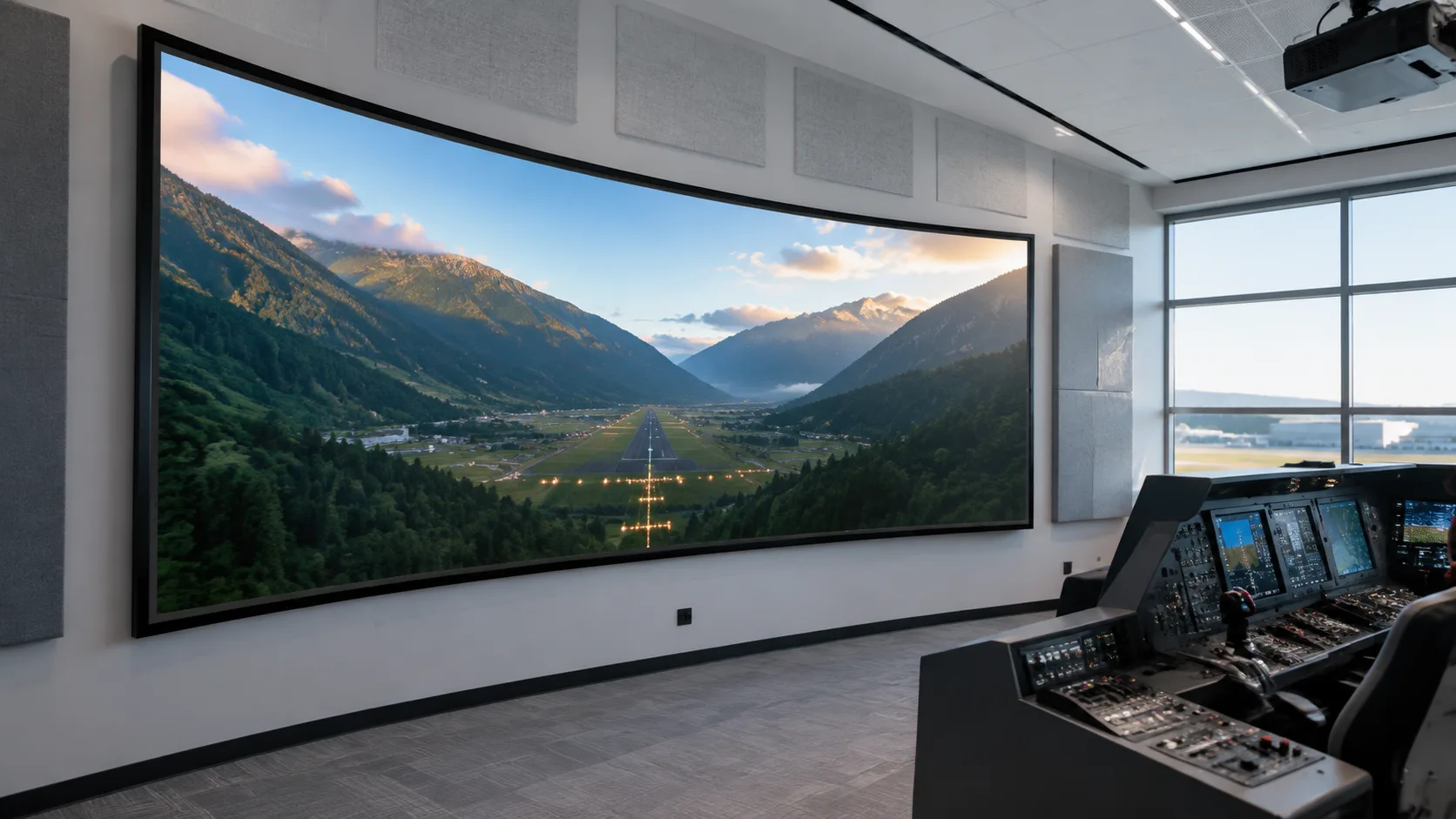

Professional Flight Simulation Training Center with Large Curved Fixed Frame Projection Screen

Professional Flight Simulation Training Center

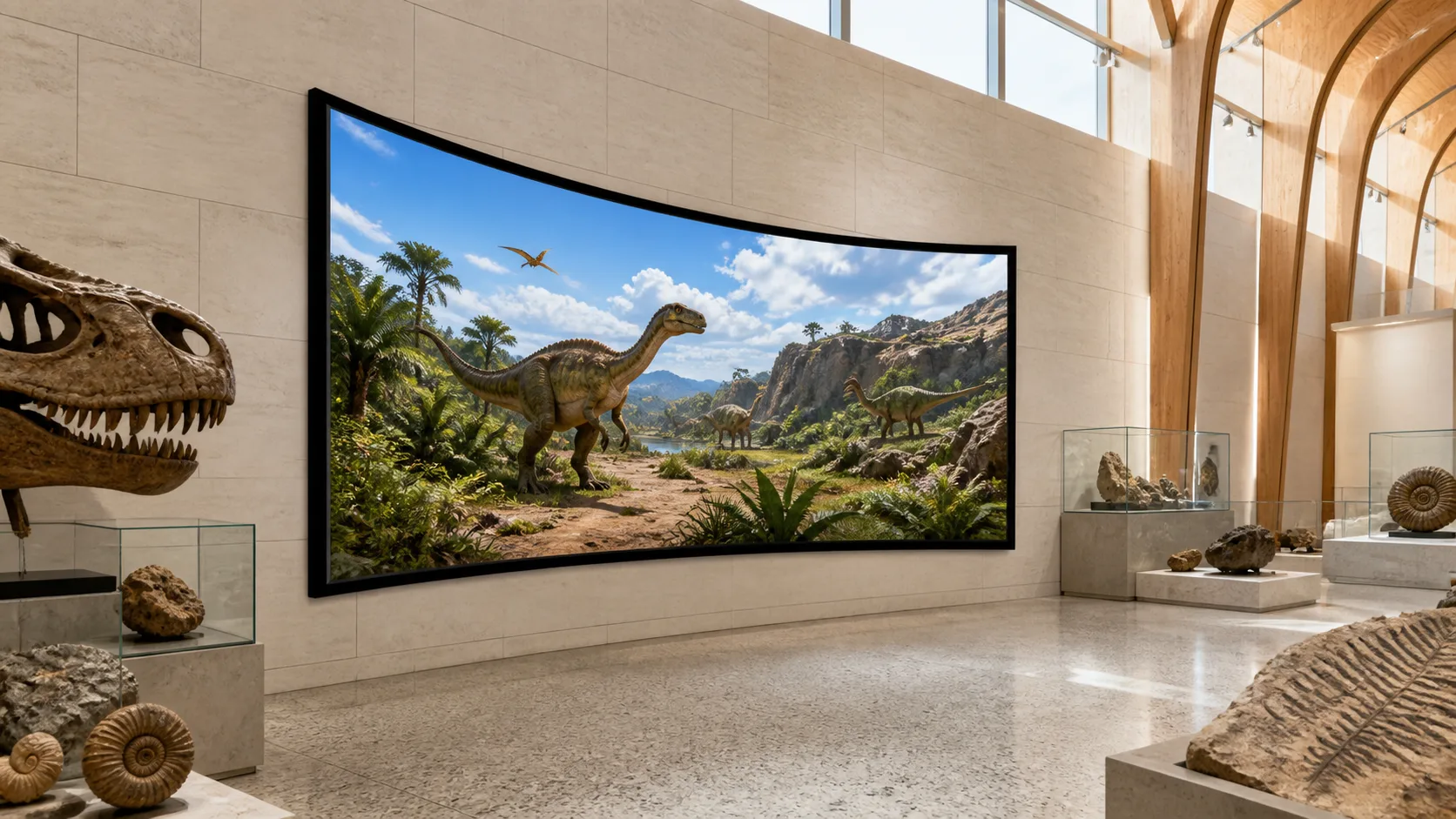

Immersive Natural History Museum Gallery with Large Curved Fixed Frame Projection Screen

Immersive Natural History Museum Gallery

Urban Planning Visualization Center with Large Curved Fixed Frame Projection Screen

Urban Planning Visualization Center

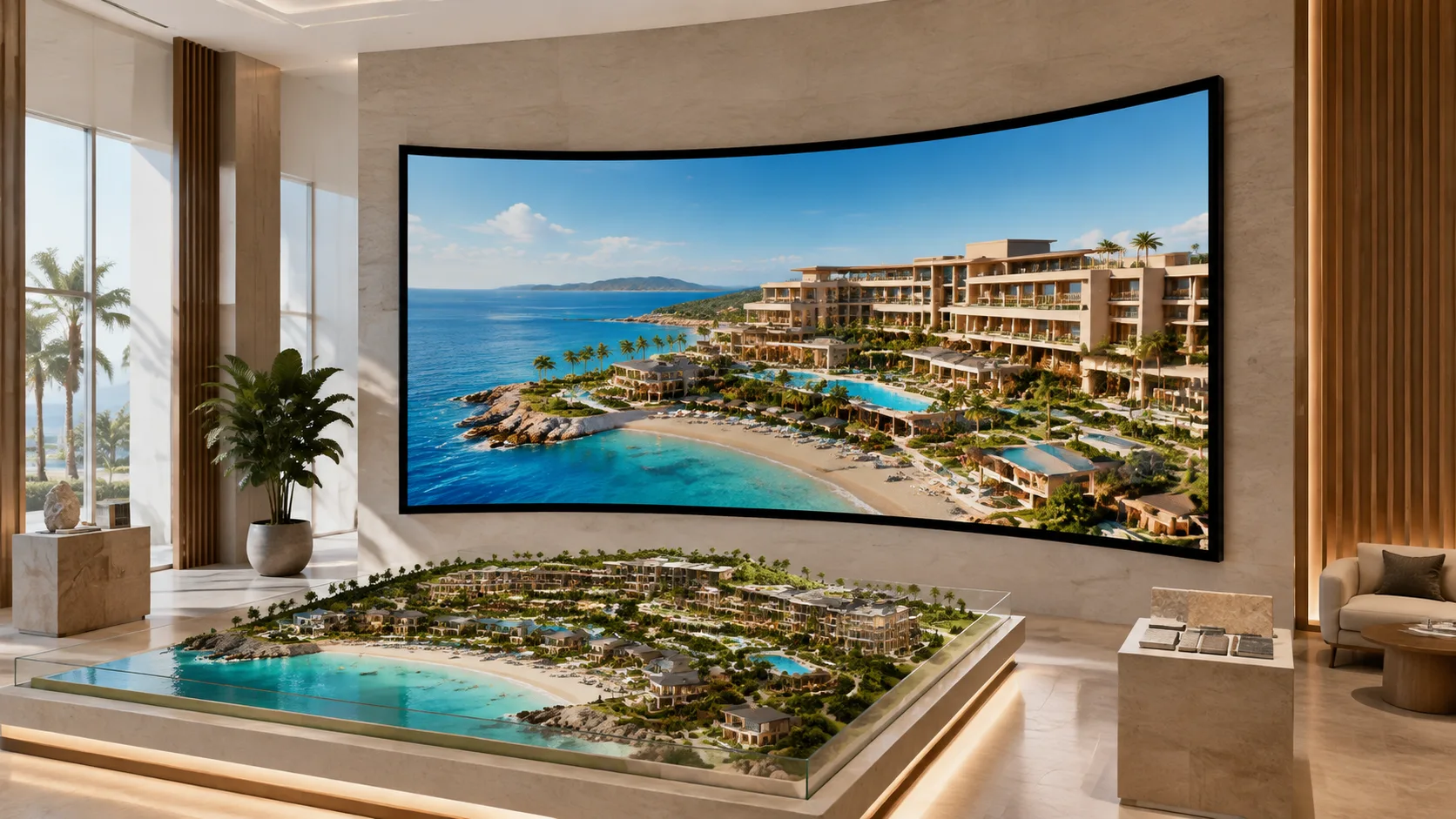

Luxury Real Estate Experience Gallery with Large Curved Fixed Frame Projection Screen

Luxury Real Estate Experience Gallery

Features & Benefits

Curved Fixed Frame Structure

Supports immersive viewing with a curved projection surface

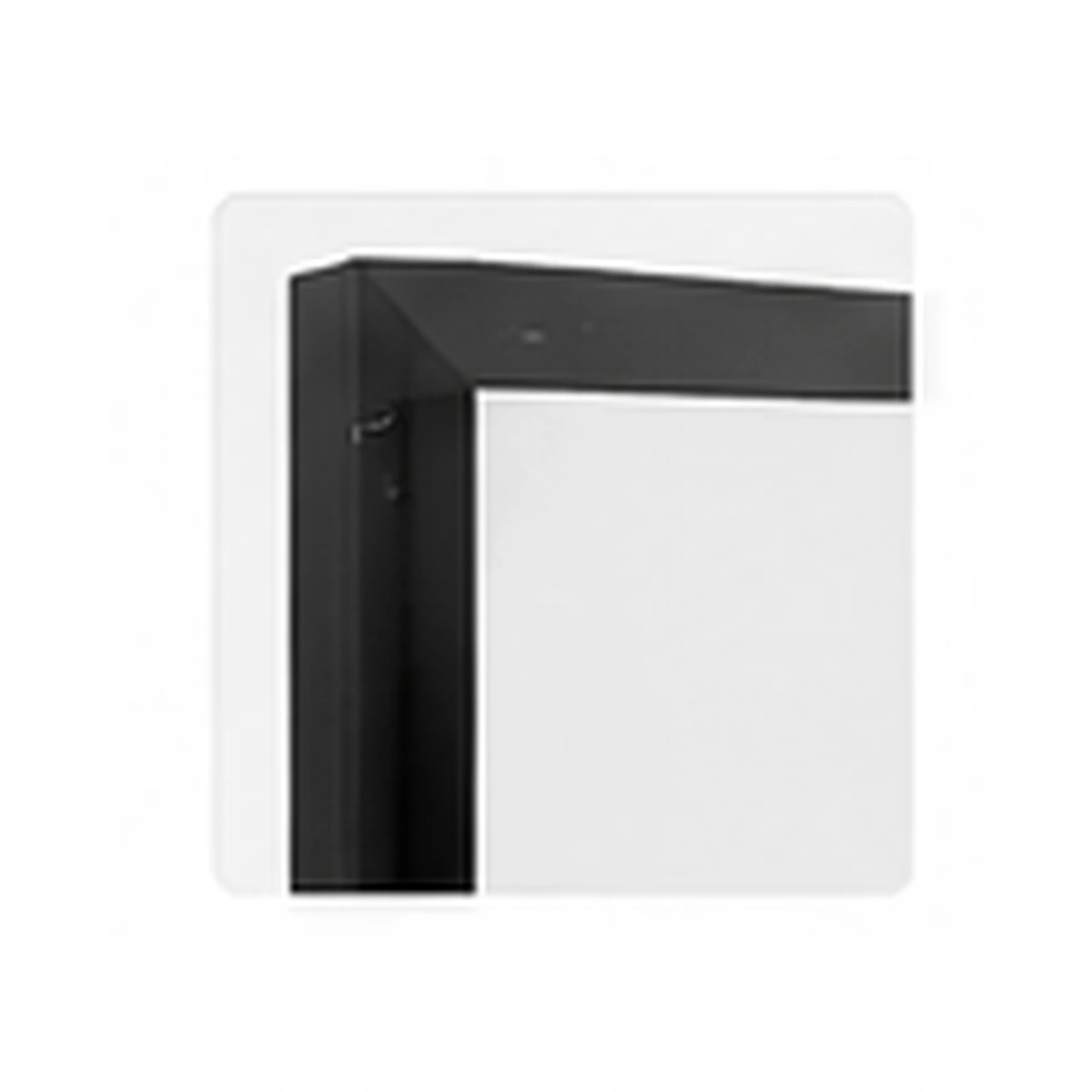

Aluminum Alloy Frame

Stable aluminum curved frame for permanent installations

No Electrical Control Required

Fixed-frame screen with no motor, remote or app control system

Precision Spring Tensioning System

Keeps the projection surface evenly tensioned across large screen sizes

Technical Specifications

SeriesLarge Curved Fixed Frame Series
Product TypeLarge Curved Fixed Frame Projection Screen

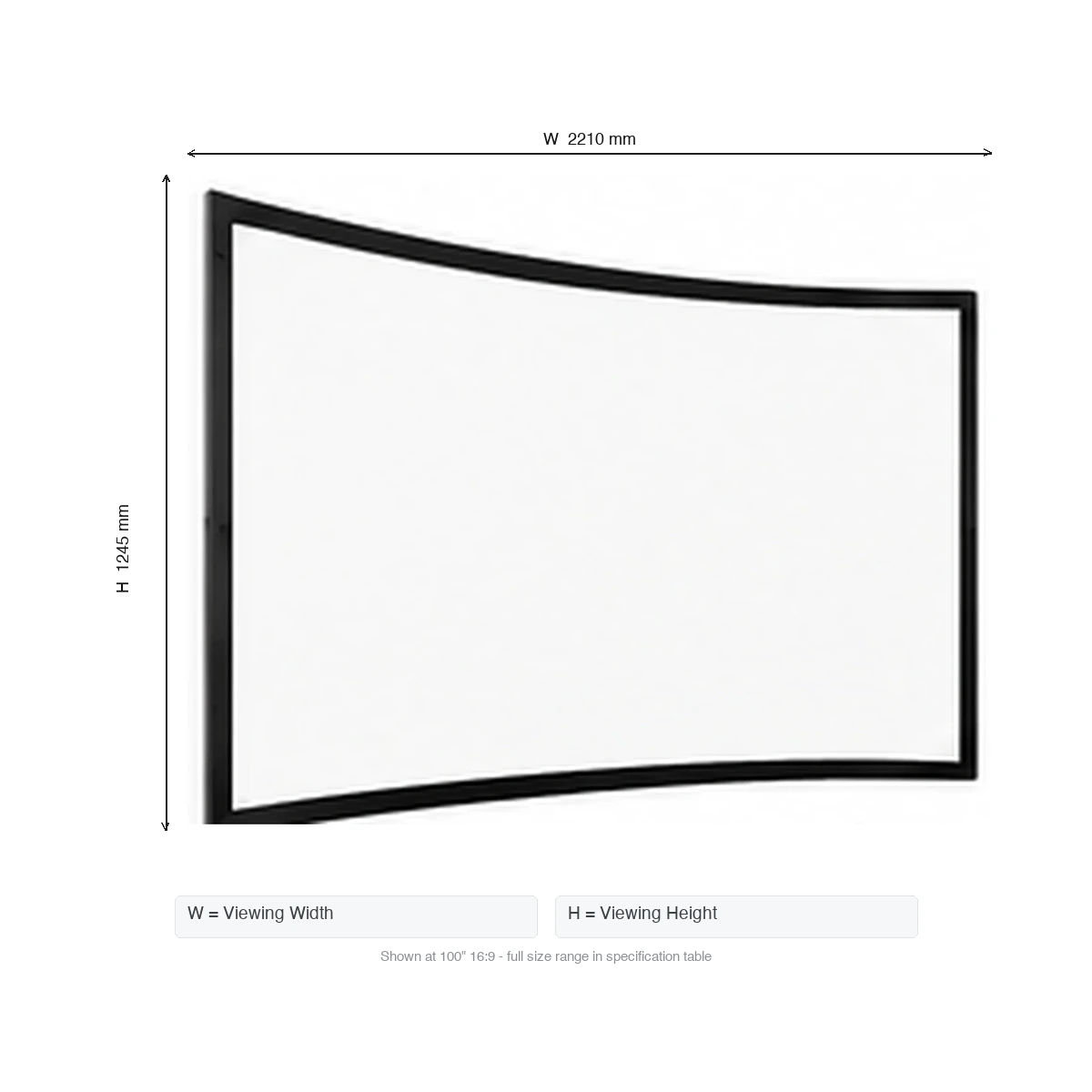

Available Sizes84″ / 92″ / 103″ / 110″ / 135″ / 150″
Aspect Ratios4:3 / 16:9
Screen Material Options4 compatible materials — View options
InstallationFixed Wall Installation
ControlNo Electrical Control Required
Typical Applicationsgovernment facilities, large cinema spaces, large hotel venues and multimedia display spaces
CustomizationOEM / ODM and project-specific sizes available

Choose a Material for This Screen

Default

White Woven Acoustically Transparent Fabric

A white woven acoustic-transparent option listed for selected tab-tension and curved fixed-frame models.

View material details

PVC Soft White Fabric

A flexible white PVC option listed across selected tab-tension, fixed-frame, outdoor and folding screens.

View material details

PVC Acoustically Transparent Fabric

A PVC acoustic-transparent option listed for selected curved fixed-frame and outdoor screen configurations.

View material details
Grey 3D Metallic Fabric material sample

Grey 3D Metallic Fabric

A grey metallic option listed across selected tensioned, fixed-frame, outdoor and folding screen formats.

View material details
Large Curved Fixed Frame Projection Screen + White Woven Acoustically Transparent Fabric Request This Configuration

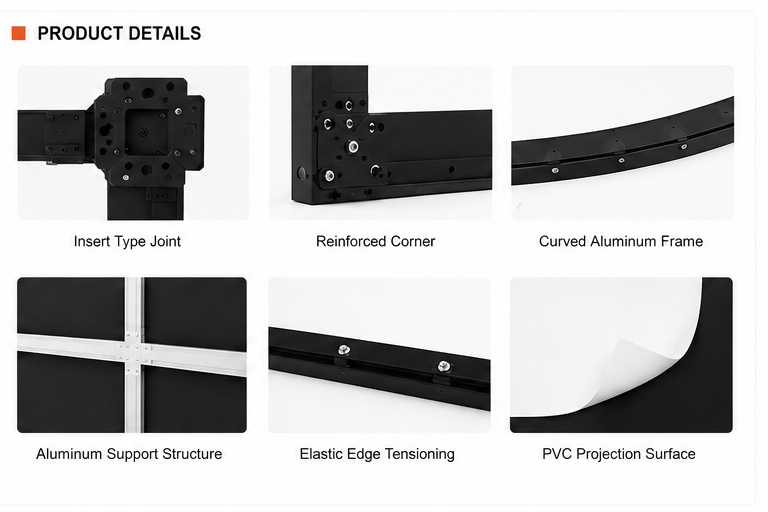

Product Details

Front Product View of Large Curved Fixed Frame Projection Screen

Front Product View

Curved Side View 01 of Large Curved Fixed Frame Projection Screen

Curved Side View 01

Curved Side View 02 of Large Curved Fixed Frame Projection Screen

Curved Side View 02

Curved Side View 03 of Large Curved Fixed Frame Projection Screen

Curved Side View 03

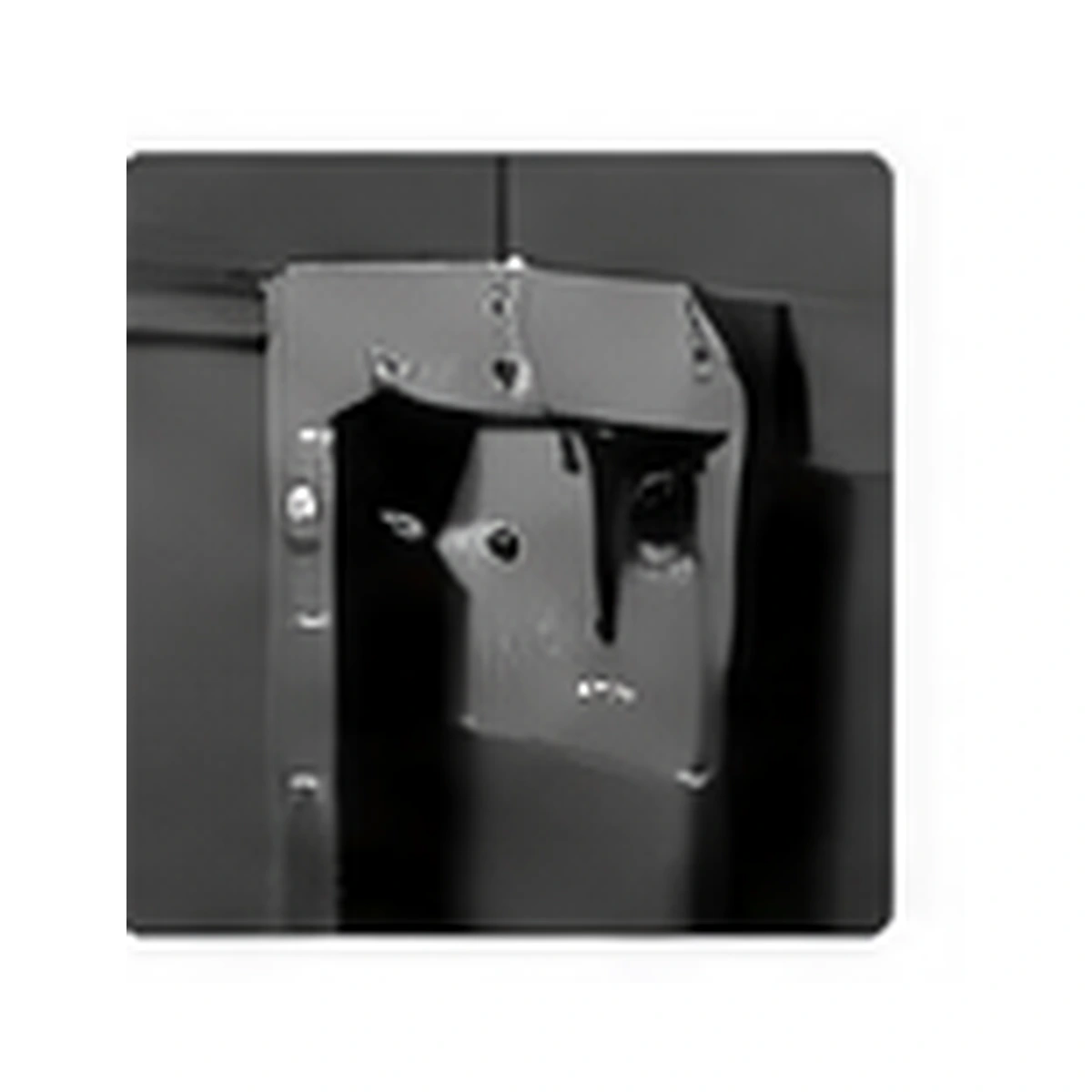

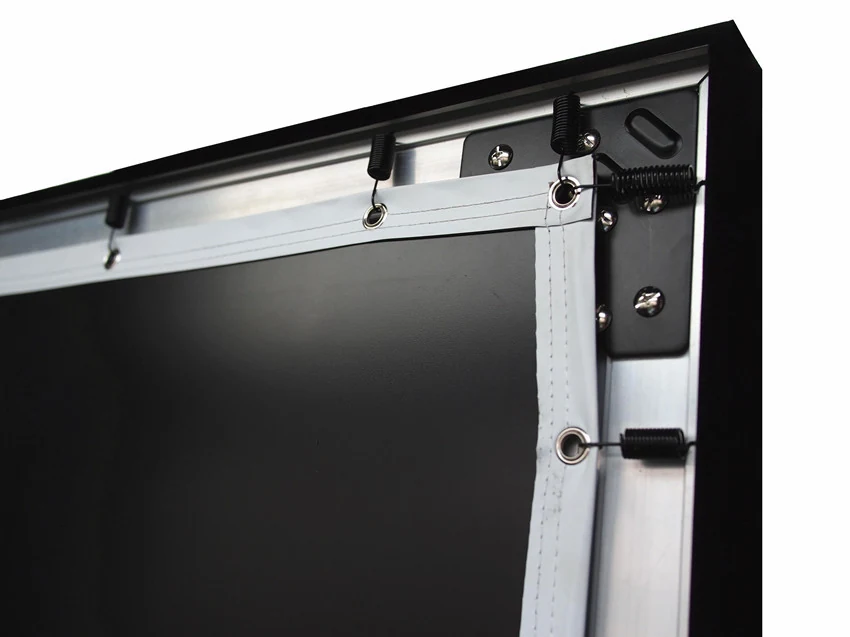

Rear Spring Tension Detail of Large Curved Fixed Frame Projection Screen

Rear Spring Tension Detail

Product Highlights & Material Comparison

Explore the screen configuration and compare the available projection surfaces for your project.

Product Highlights

  • Curved screen profile
  • Aluminum frame

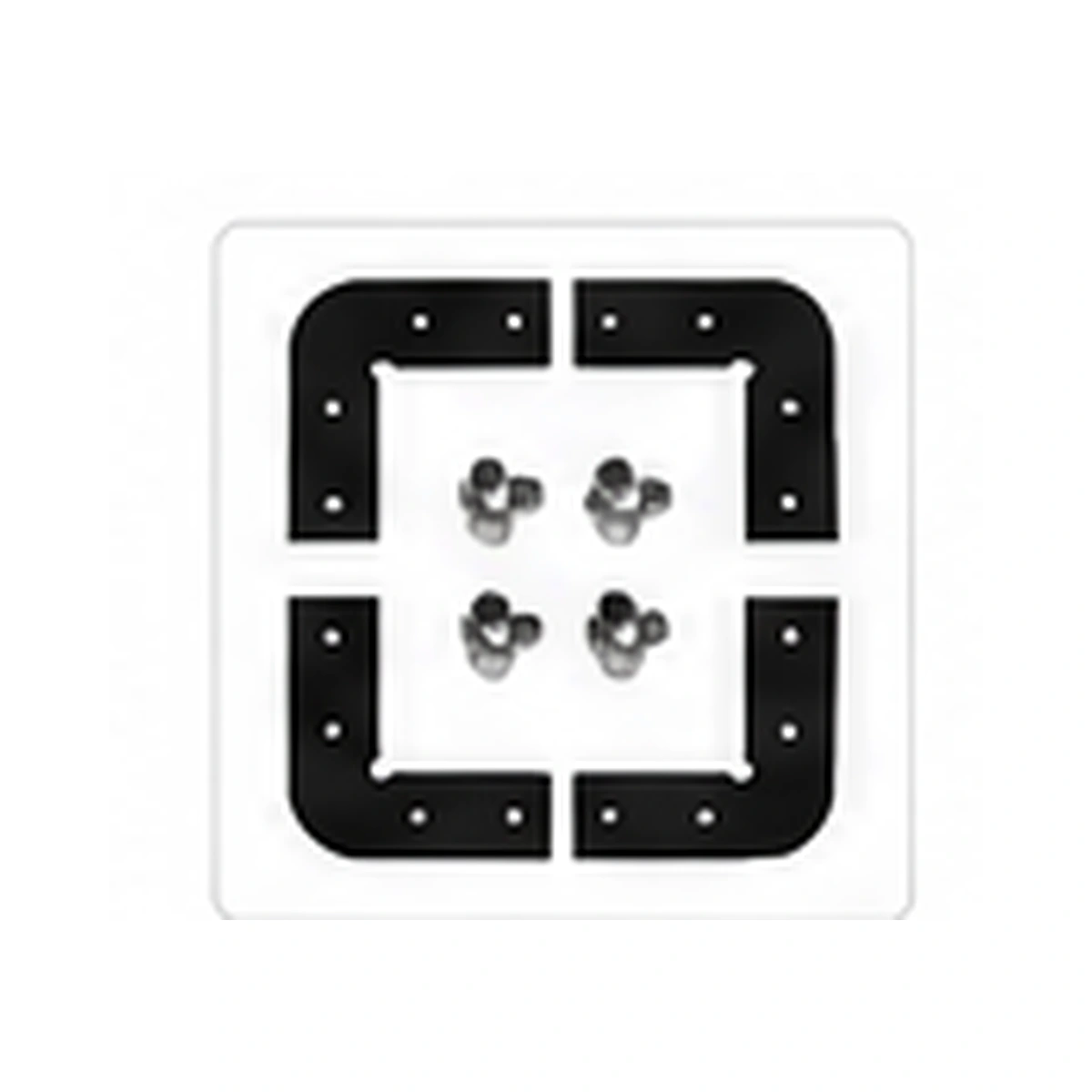

  • Inner insert frame structure
  • Precision spring tensioning system

Compare Screen Materials

Compare the listed gain, viewing angle and surface features. Ask us to confirm the material for your projector and room before ordering.

Available surface specifications
Screen materialGainViewing angle4KHigh contrastALRWashable
PVC Front Projection Matte White1.05165°YesNoNoYes
PVC Front Projection Matte Grey0.85165°YesYesYesYes
PVC Front Projection Silver Grey1.5120°YesYesYesYes

ALR means ambient light rejection. Values apply to the listed surface and model configuration. Confirm projector compatibility and cleaning instructions with MGF.

Sizes, installation & controls
Model configuration
Product CategoryCurved Fixed Frame Screens
Size Range72", 84", 92", 100", 110", 120", 135", 150", 200", 300"
Aspect Ratios1:1 4:3,16:9,16:10
Screen SurfacesPVC Front Projection Matte White, PVC Front Projection Matte Grey, PVC Front Projection Silver Grey
InstallationWall mounted
Default MaterialWhite Woven Acoustically Transparent Fabric
Power SupportManual / no motor

Installation & Control

Installation

  • Fixed Wall Installation
  • Permanent Wall Setup

Control Methods

  • No Remote Required
  • No Voice Control Required
  • No App Control Required

Downloads

Frequently Asked Questions

It is designed for government facilities, large cinema spaces, large hotel venues and multimedia display spaces. The final screen material and size should be selected according to projector type, viewing distance and ambient light.

Catalogue sizes include 84″ / 92″ / 103″ / 110″ / 135″ / 150″, with aspect ratios including 4:3 / 16:9. Project-specific and OEM sizes can also be discussed.

Available material options include White Woven Acoustic / PVC Soft White / PVC Acoustic Transparent / Grey 3D Metallic. Contact MGF Screens with your projector type and room-lighting conditions for a material recommendation.

Installation: Fixed Wall Installation. Control: No Electrical Control Required.

Yes. MGF Screens supports OEM, ODM and project-specific customization, including screen size, aspect ratio, screen material, housing finish, control configuration and packaging.
