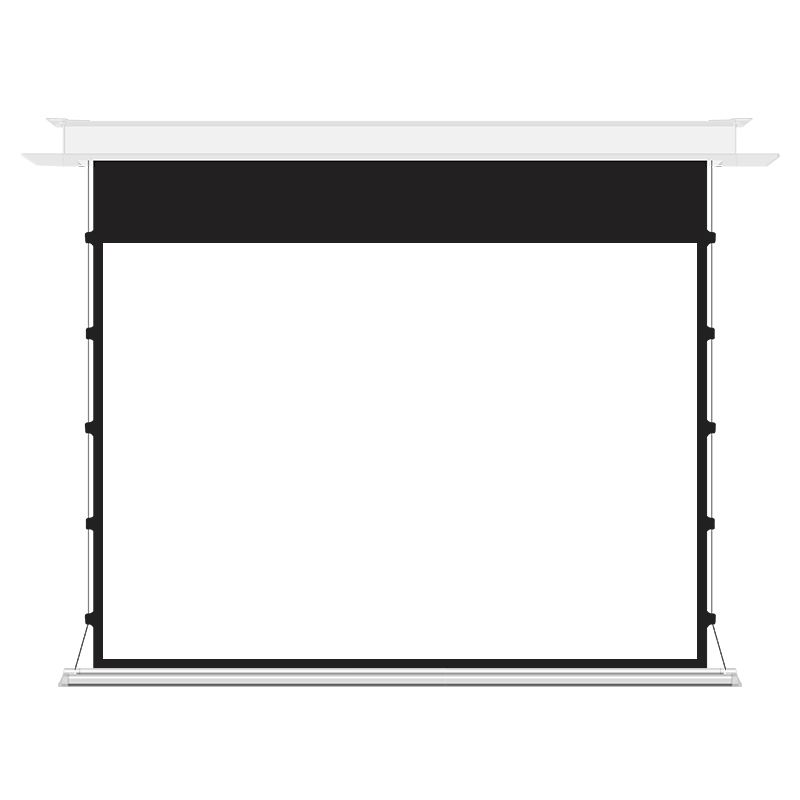

In-Ceiling Tab-Tension Electric Projection Screen

ICT Series

A concealed in-ceiling electric projection screen with side tensioning for a flat viewing surface and clean architectural integration.

  • Space-Aluminum Casing
  • Tab-Tension Flatness

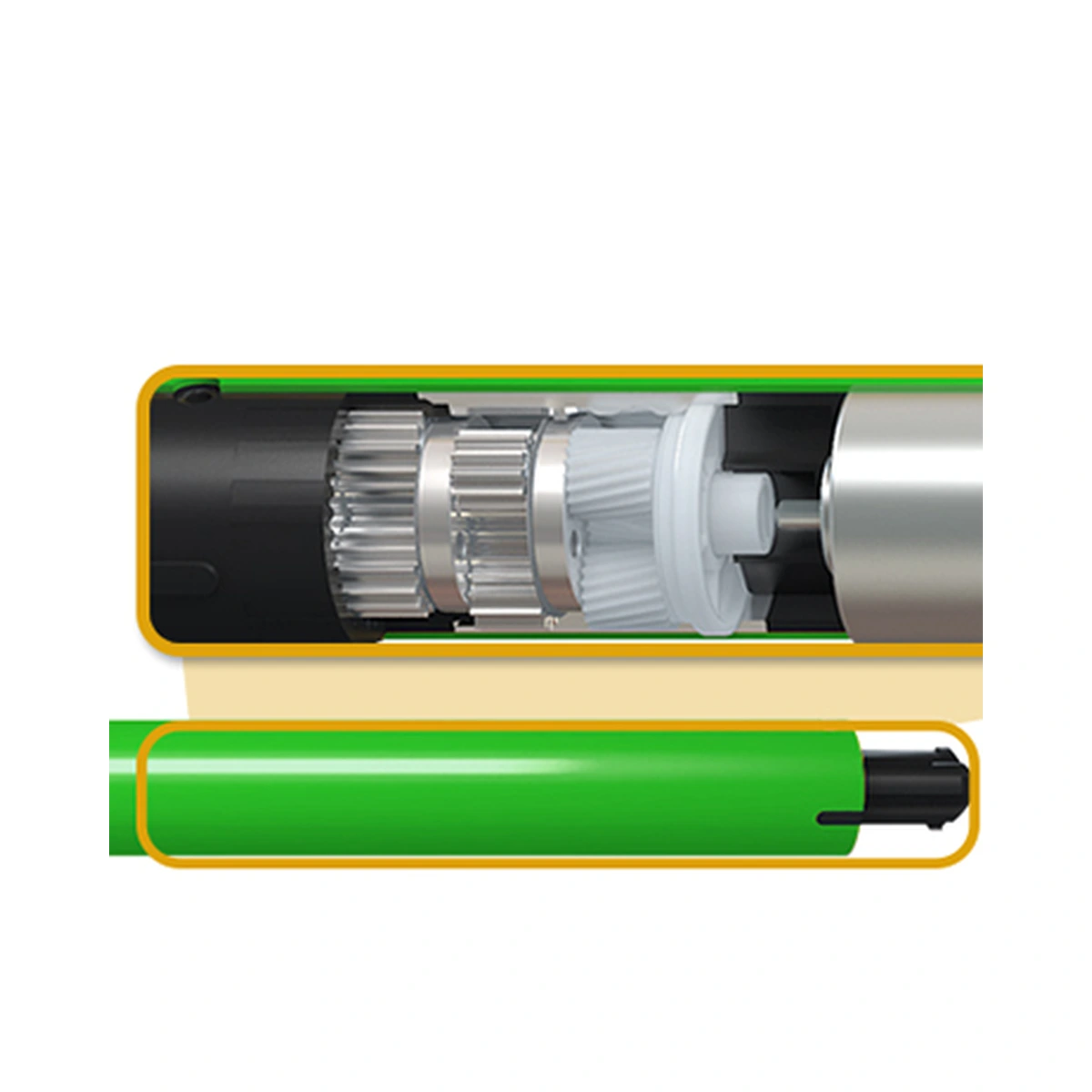

  • Quiet Tubular Motor
  • Wireless Remote / Voice Control / Mobile App / USB Trigger
  • Hidden Ceiling Installation
Get A Quote View Material Options

Where This Screen Works Best

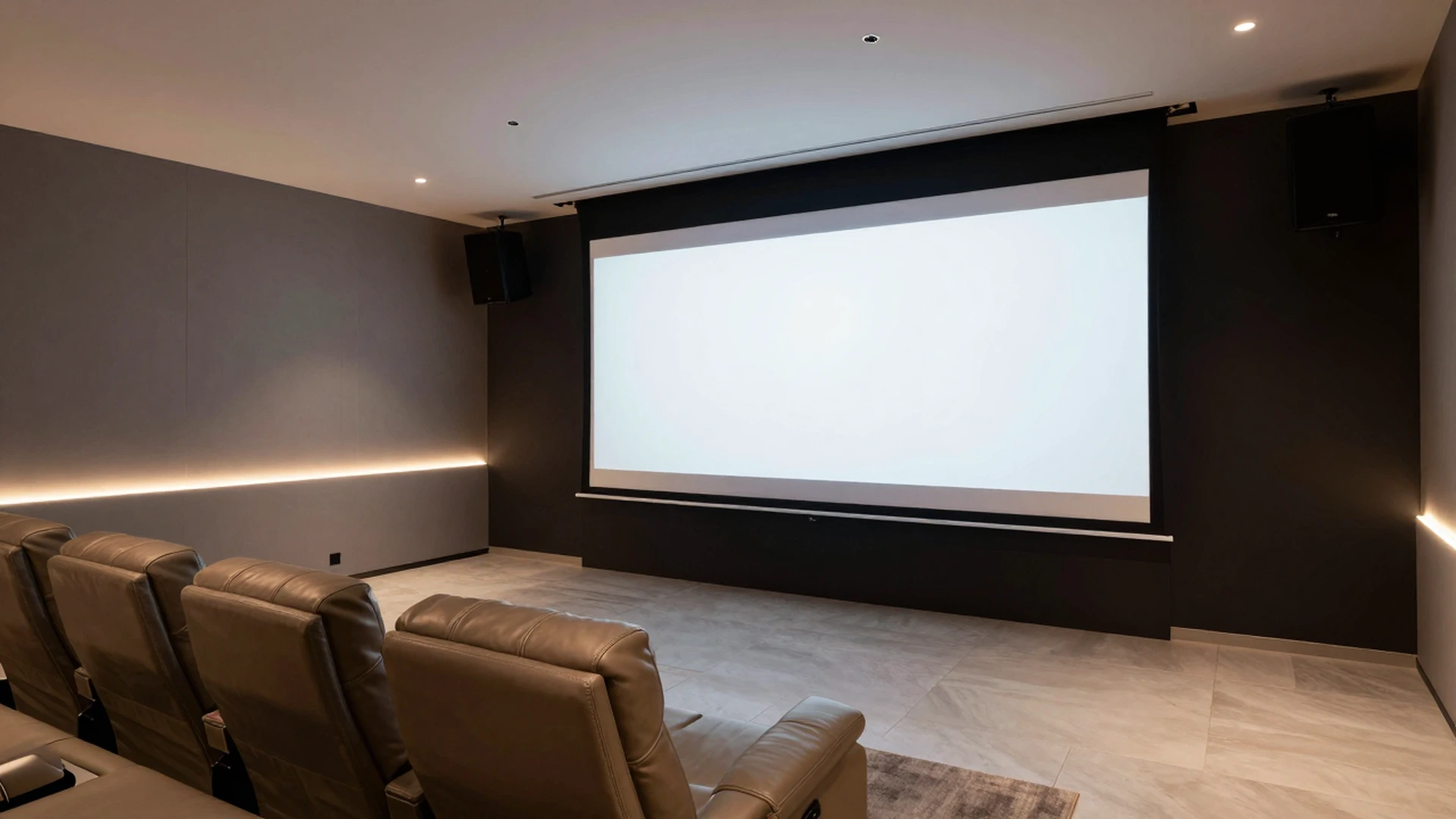

Villa Cinema

Installation Showcase

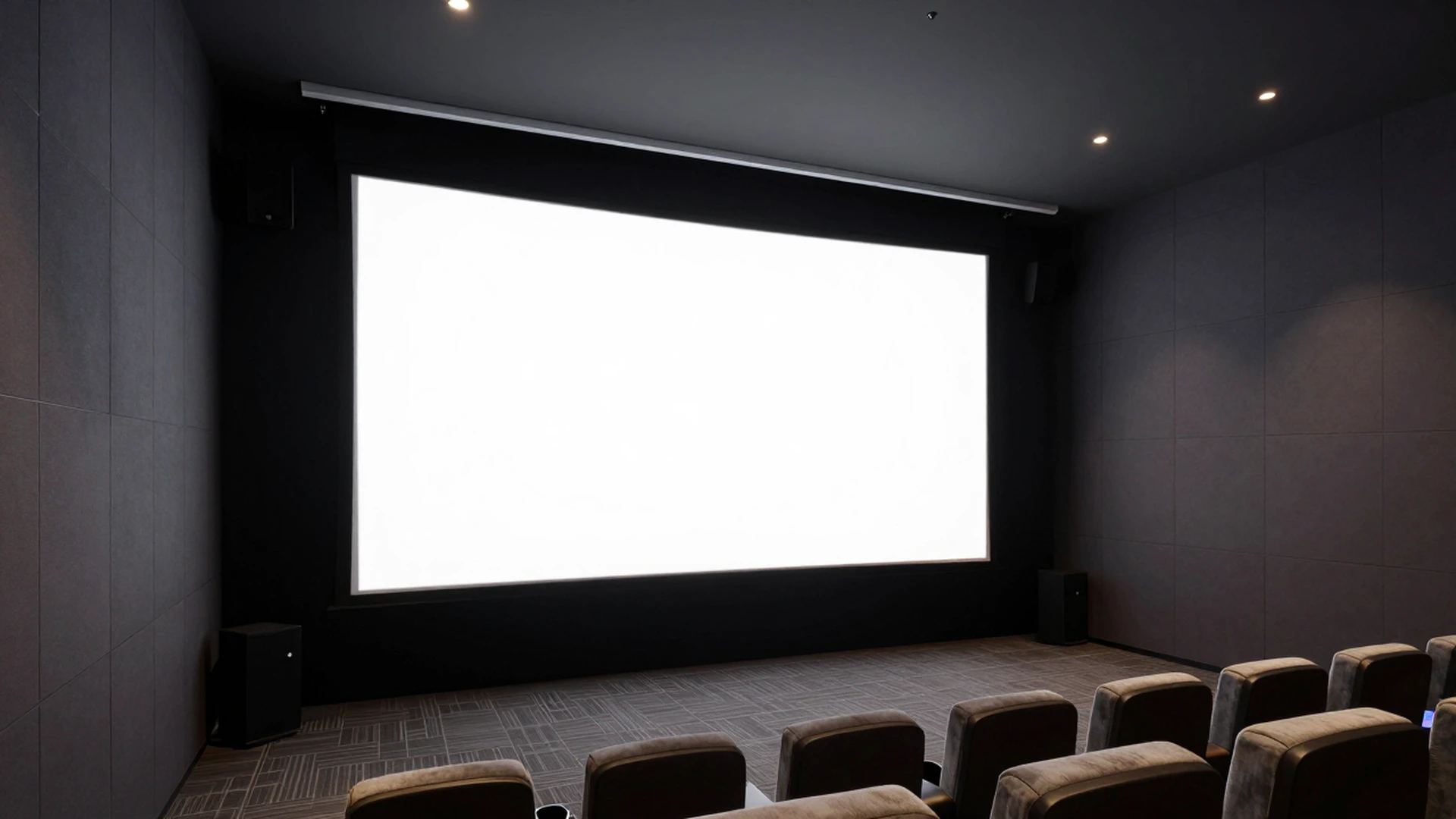

Screening Room

Features & Benefits

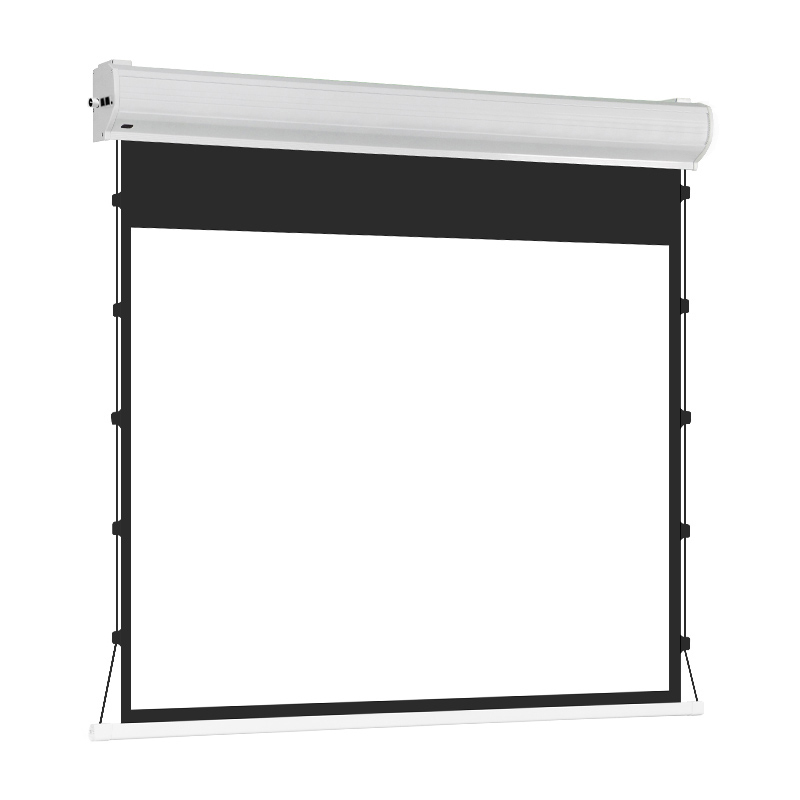

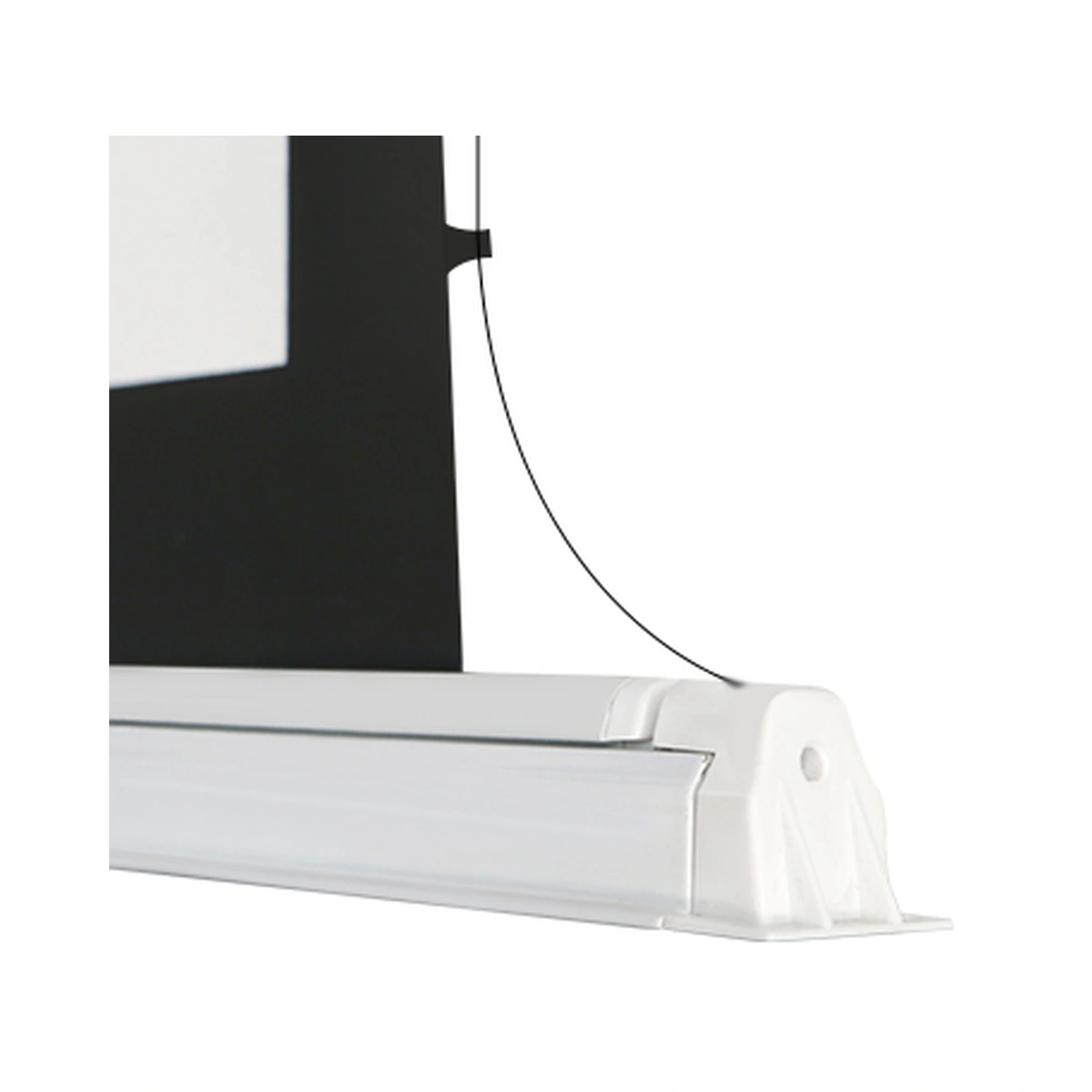

Tab-Tension System

Maintains a flatter projection surface

Space-Aluminum Casing

Concealed aluminum housing for recessed ceiling integration

Smart Control Options

12 V trigger, RS-485, manual wall switch and dry-contact control are supported. Confirm the controller or receiver model, wiring, and which controls and accessories are included or optional in the quotation.

Flexible Tension Design

Straight or curved tension options

Technical Specifications

Product typeIn-Ceiling Tab-Tension Electric Projection Screen
Housing variantsLarge aluminum housing
Available sizesSee the size-by-format table below; listed combinations depend on the housing.
Aspect ratios1:1, 4:3, 16:9 and 16:10
Screen materials4 compatible materials — View options
InstallationIndoor in-ceiling recessed installation
Motor optionsConfirm the motor for the selected model and destination market.
Motor noiseThe motor used in this ceiling screen has a noise level of approximately 30 dB, as reported by MGF. For an acoustic specification, confirm the motor, load, measurement distance and test conditions before ordering.
Supported controls12 V trigger, RS-485, manual wall switch and dry-contact control are supported. Confirm the controller or receiver model, wiring, and which controls and accessories are included or optional in the quotation.
Minimum order quantity (MOQ)Large products: 1 unit. Small products: 10 units. Confirm the applicable product category with MGF when requesting a quotation.
Black bordersDimensions vary by housing, size and aspect ratio. Confirm the drawing for the selected configuration.
Power connectionConfirm voltage, frequency, plug and cable exit for the destination market.
Packaging and lead timeConfirm the final packed dimensions, gross weight and assembled or separate-component delivery for the agreed packaging and product mix. Product overall length (OL) and packed length are separate drawing fields. Lead time is confirmed for each order.
Housing identificationThe supplied tab-tension dimensional sheet uses the large aluminum housing: casing width M = 110 mm; overall cross-section CD × CH = 160 × 125 mm. Confirm the selected model and applicable MOQ category in the quotation.

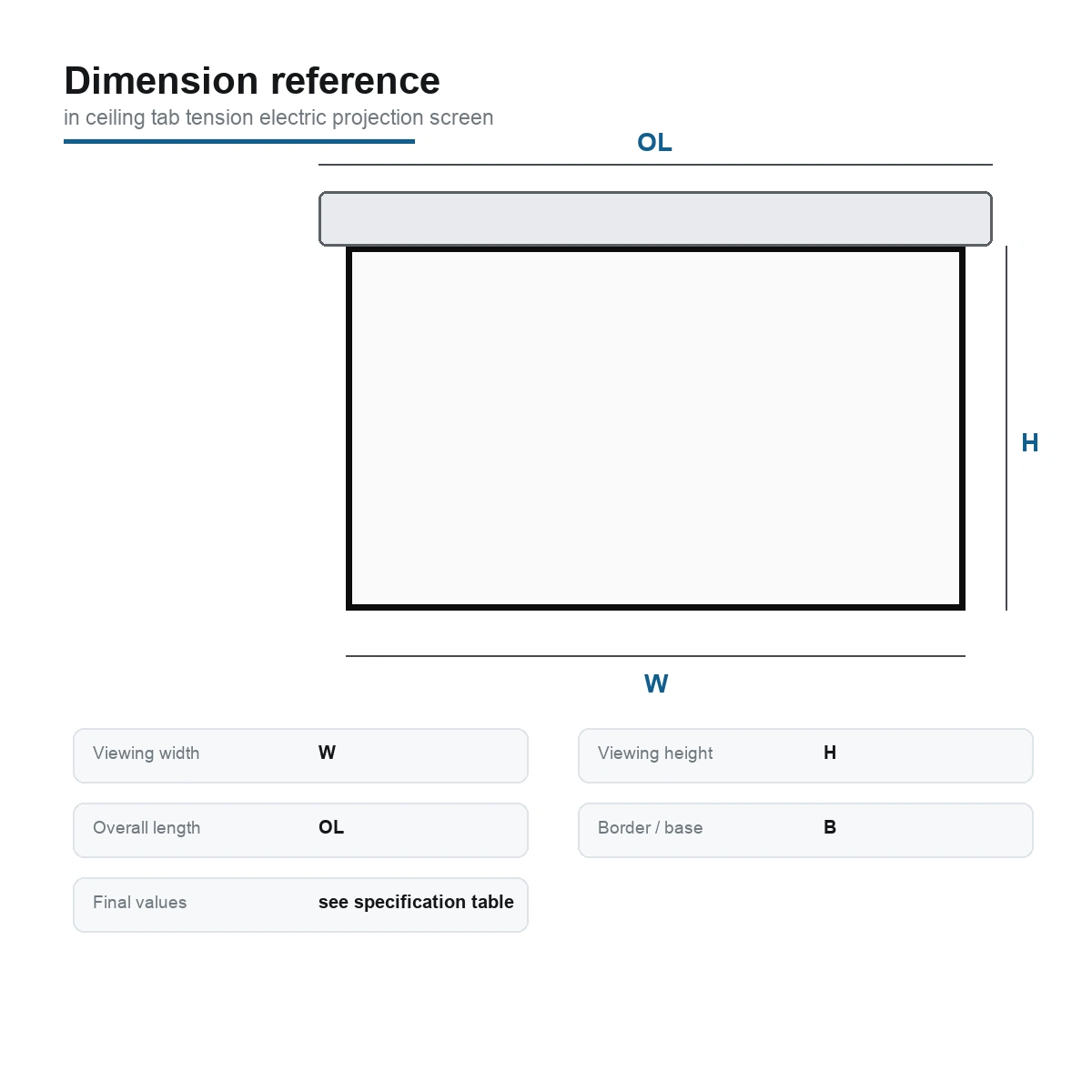

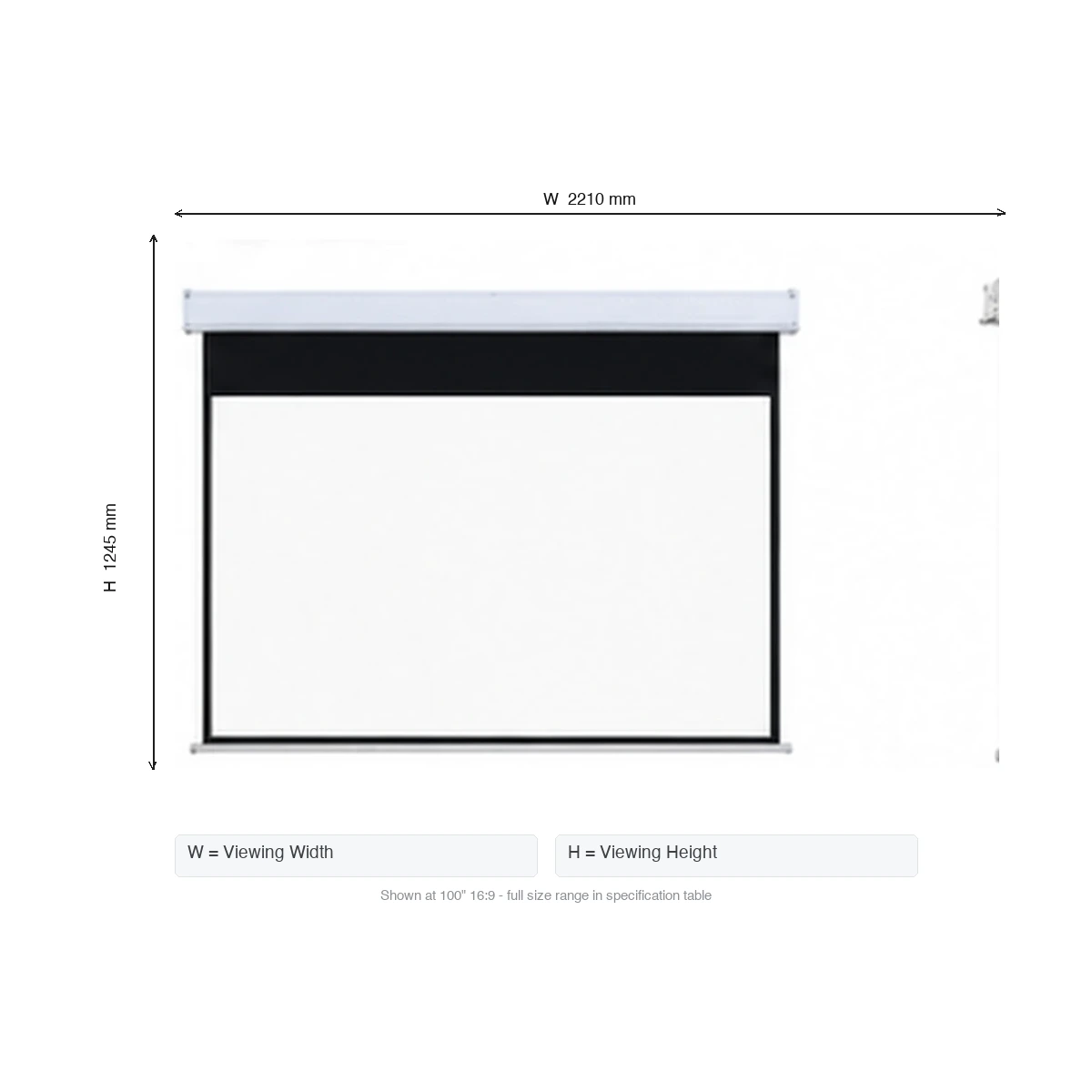

Drawing references (mm)H and W identify the visible image height and width. L is the casing length, OL is the overall product length, and L1 is the longitudinal M8 fixing distance. Use the selected housing, diagonal size and aspect-ratio row together.
Ceiling opening and fixingA and B identify the ceiling-opening width and length. Confirm the opening, fixing positions and service access against the approved model-specific installation drawing before ceiling work. Product cross-section and packed dimensions are not cutout dimensions.

Listed Sizes by Housing and Aspect Ratio

HousingAspect ratioDiagonal sizes (inches)
Large aluminum / tab-tension1:1100, 110, 120, 150
Large aluminum / tab-tension4:3100, 120, 135, 150
Large aluminum / tab-tension16:972, 84, 92, 100, 110, 120, 135, 150
Large aluminum / tab-tension16:10100, 110, 120, 150

Dimensions and size combinations are based on the current MGF dimensional sheets. Confirm the selected housing, material and drawing revision before ordering or finalizing the ceiling opening.

Overall cross-section (CD × CH): 160 × 125 mm for the large tab-tension housing. These are product dimensions, not ceiling-cutout dimensions.

Request the model-specific drawing for overall length, M8 fixing locations, black borders, ceiling opening and delivery planning.

Choose a Material for This Screen

White Woven Acoustically Transparent Fabric

A white woven acoustic-transparent option listed for selected tab-tension and curved fixed-frame models.

View material details
Default

PVC Soft White Fabric

A flexible white PVC option listed across selected tab-tension, fixed-frame, outdoor and folding screens.

View material details
PVC Ambient Light Rejecting Fabric material sample

PVC Ambient Light Rejecting Fabric

An ambient-light-rejecting PVC option listed for selected tab-tension, fixed-frame and floor-rising screens.

View material details
Grey 3D Metallic Fabric material sample

Grey 3D Metallic Fabric

A grey metallic option listed across selected tensioned, fixed-frame, outdoor and folding screen formats.

View material details
In-ceiling Tab-tension Electric Projection Screen + PVC Soft White Fabric Request This Configuration

Product Details

Optional Accessory Remote Control 01

Optional Accessory Remote Control 02

Optional Accessory Control Board

Optional Accessory Wall Switch

Optional Accessory Control Cable

Project Example and Selection Resources

A 135-inch ICT screen is paired with an SX projector lift for a concealed presentation setup.

Review the 12-person training-room case, follow the conference-room selection guide, or compare conference-room screen solutions.

Installation & Control

Installation

  • In-Ceiling Recessed Installation
  • Confirm Structural Support and Service Access

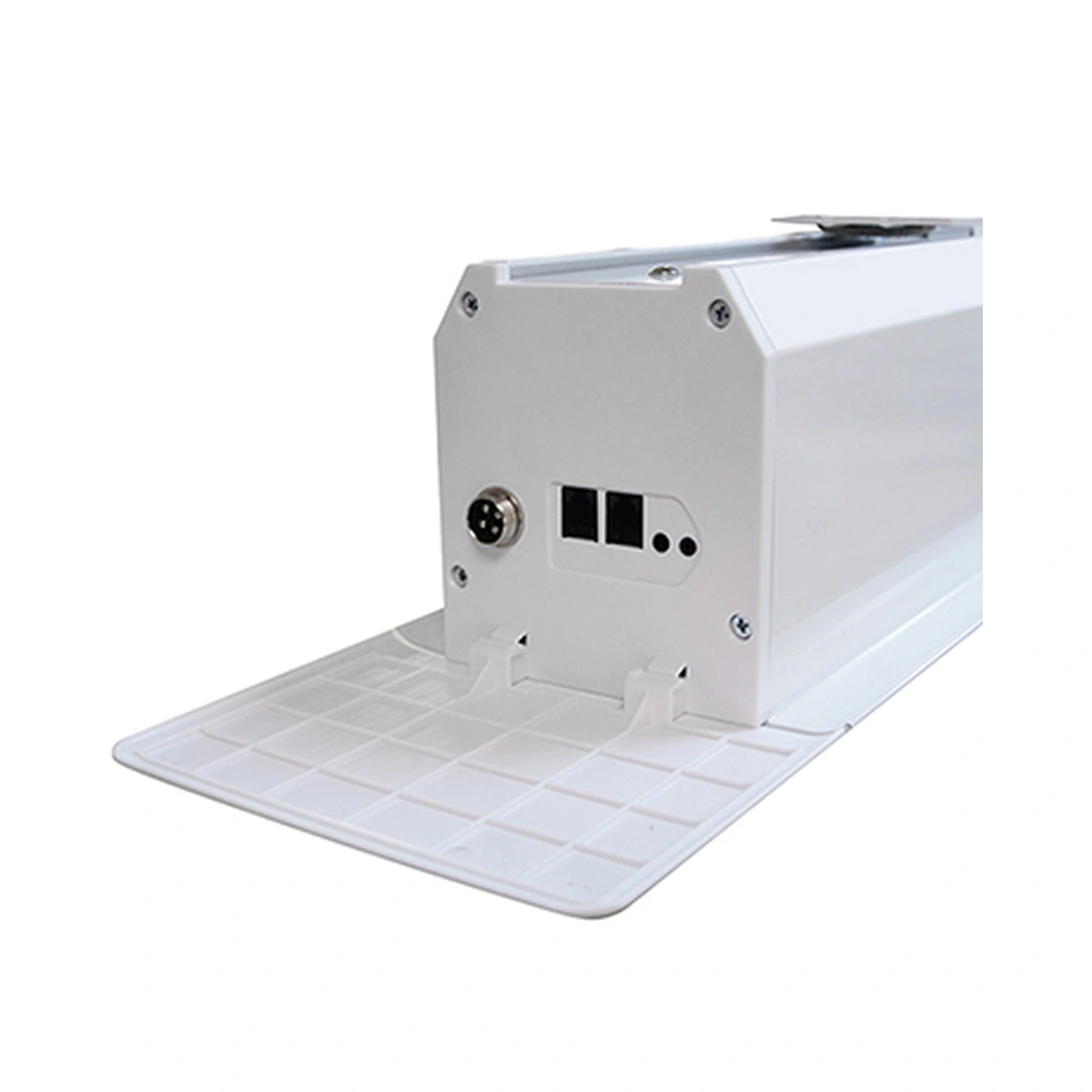

Control Methods

12 V trigger, RS-485, manual wall switch and dry-contact control are supported. Confirm the controller or receiver model, wiring, and which controls and accessories are included or optional in the quotation.

Accessories and Control Options

The ceiling-series accessory list covers threaded rods, trim end covers, a power cable, remote control, adjustment rod, USB trigger and an instruction manual. Confirm the supplied pack for the selected model and destination in the quotation.

Mounting brackets for higher suspended ceilings are optional. Some control interfaces also require an option; supported control methods do not mean that every controller, receiver or cable is supplied as standard.

  • Wireless Remote
  • Optional Smart Voice Control
  • Optional Mobile App Control

Downloads

Frequently Asked Questions

It is designed for high-end home cinemas, living-room AV spaces and premium residential projects. The final screen material and size should be selected according to projector type, viewing distance and ambient light.

The large-aluminum-housing in-ceiling tab-tension dimensional sheet lists 1:1: 100, 110, 120 and 150 inches; 4:3: 100, 120, 135 and 150 inches; 16:9: 72, 84, 92, 100, 110, 120, 135 and 150 inches; and 16:10: 100, 110, 120 and 150 inches. Confirm the selected size and material before ordering.

Available material options include White Woven Acoustic / PVC Soft White / PVC ALR / Grey 3D Metallic. Contact MGF Screens with your projector type and room-lighting conditions for a material recommendation.

This model uses in-ceiling recessed installation. 12 V trigger, RS-485, manual wall switch and dry-contact control are supported. Confirm the controller or receiver model, wiring, and which controls and accessories are included or optional in the quotation. Motor noise is approximately 30 dB as reported by MGF; confirm motor selection and measurement conditions for the project.

Yes. MGF Screens supports OEM, ODM and project-specific customization, including screen size, aspect ratio, screen material, housing finish, control configuration and packaging.
