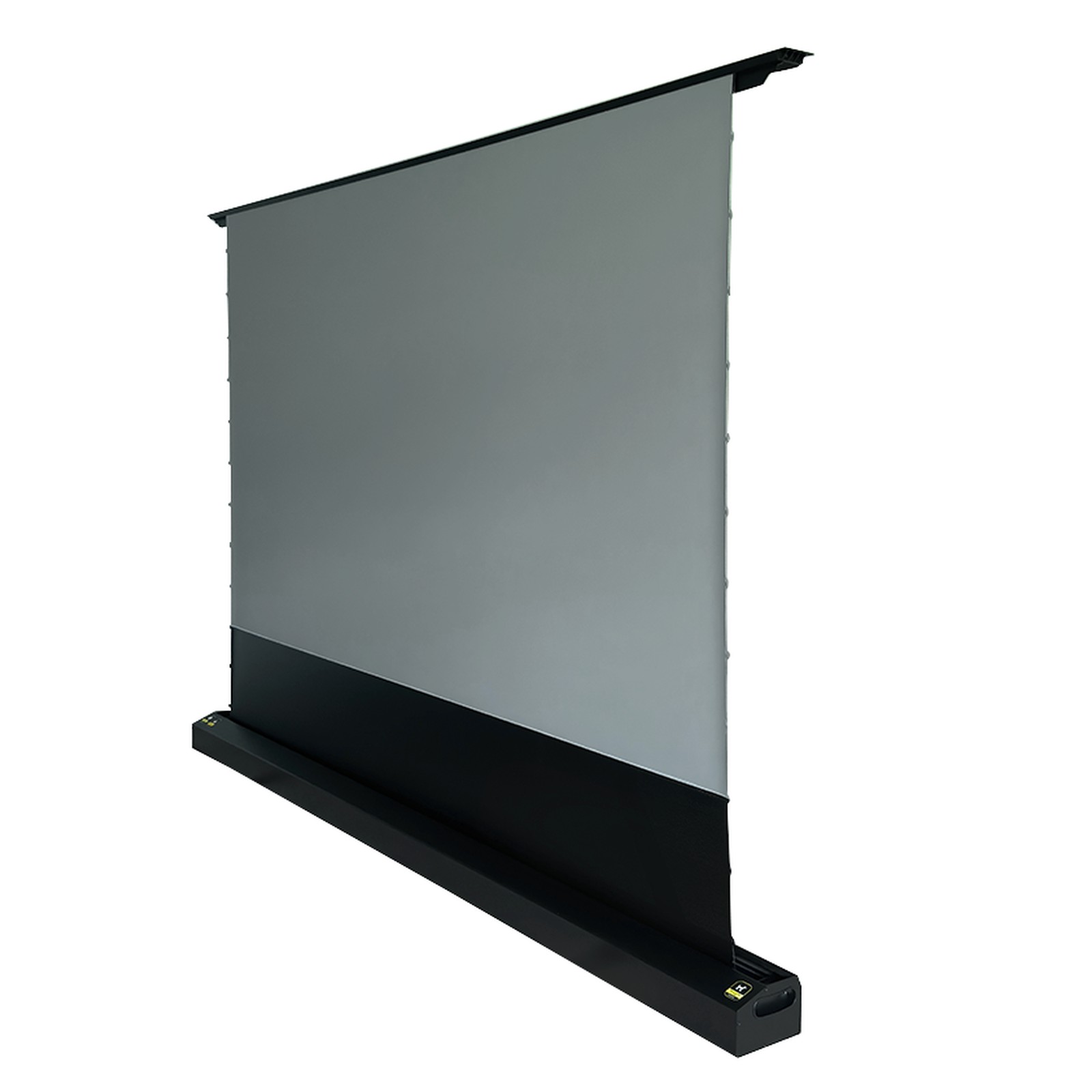

Motorized floor-rising tab-tension projection screen right-side product view

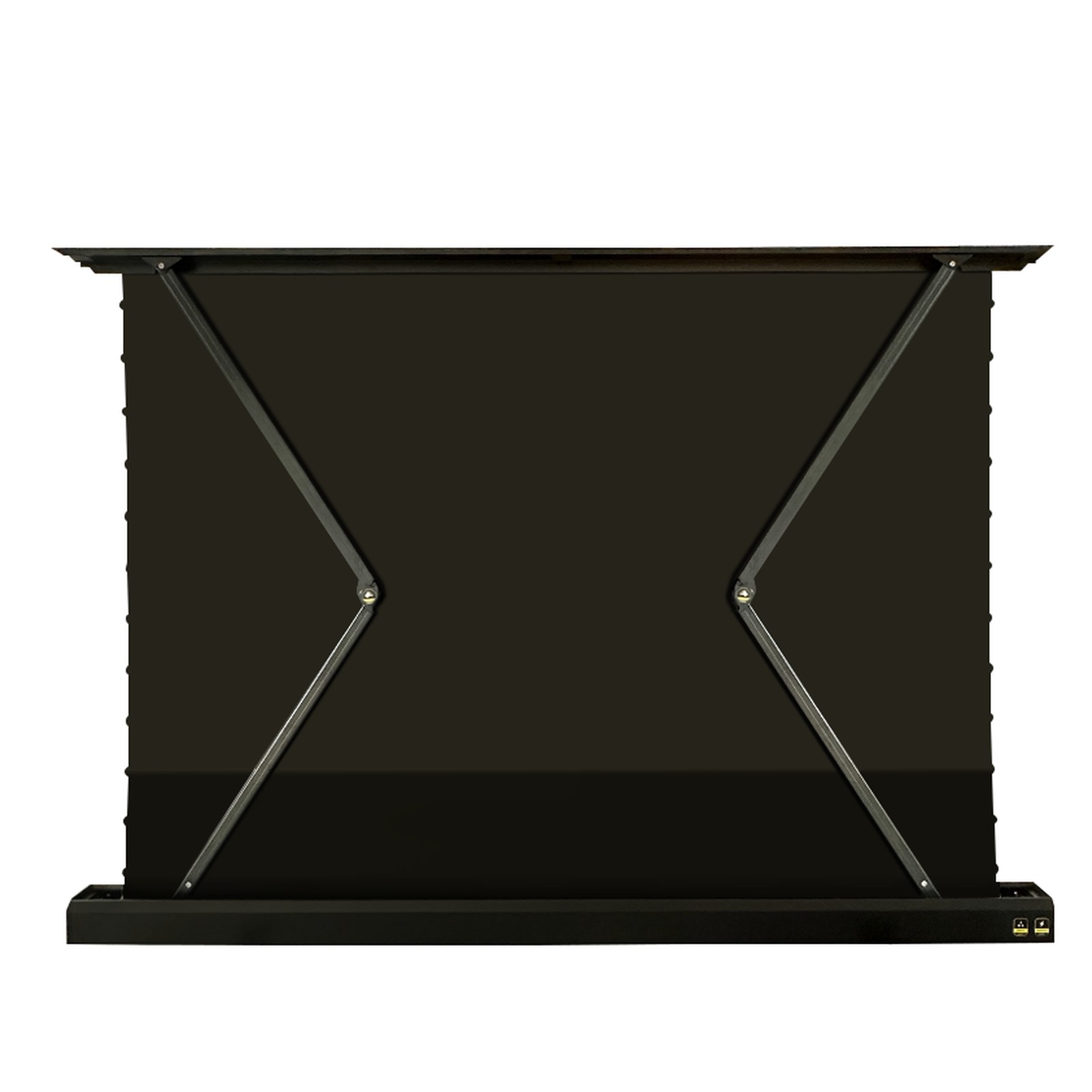

Motorized floor-rising tab-tension projection screen rear product view

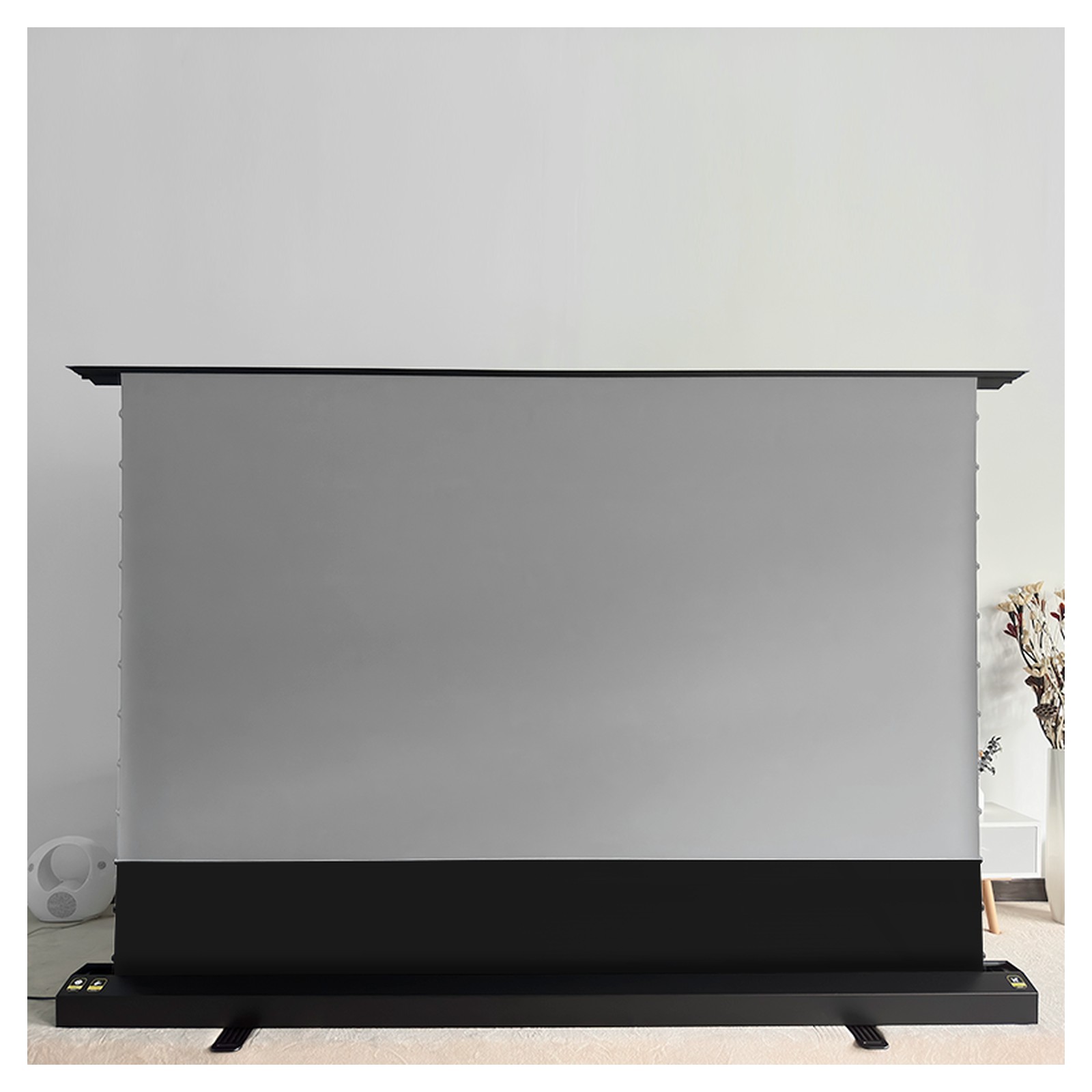

Motorized floor-rising tab-tension projection screen real front view

Motorized Floor Rising Tab-Tension Projection Screen

MFR Series

A motorized floor-rising tab-tension projection screen for indoor rooms where wall or ceiling installation is not required. The supplied configuration uses a tubular motor, floor placement, and remote or USB-trigger control accessories.

  • Floor-Rising Structure
  • Tab-Tension Edges
  • Dual Support Structure
  • Tubular Motor
  • Wireless Remote & USB Trigger
Get A Quote View Material Options

Where This Screen Works Best

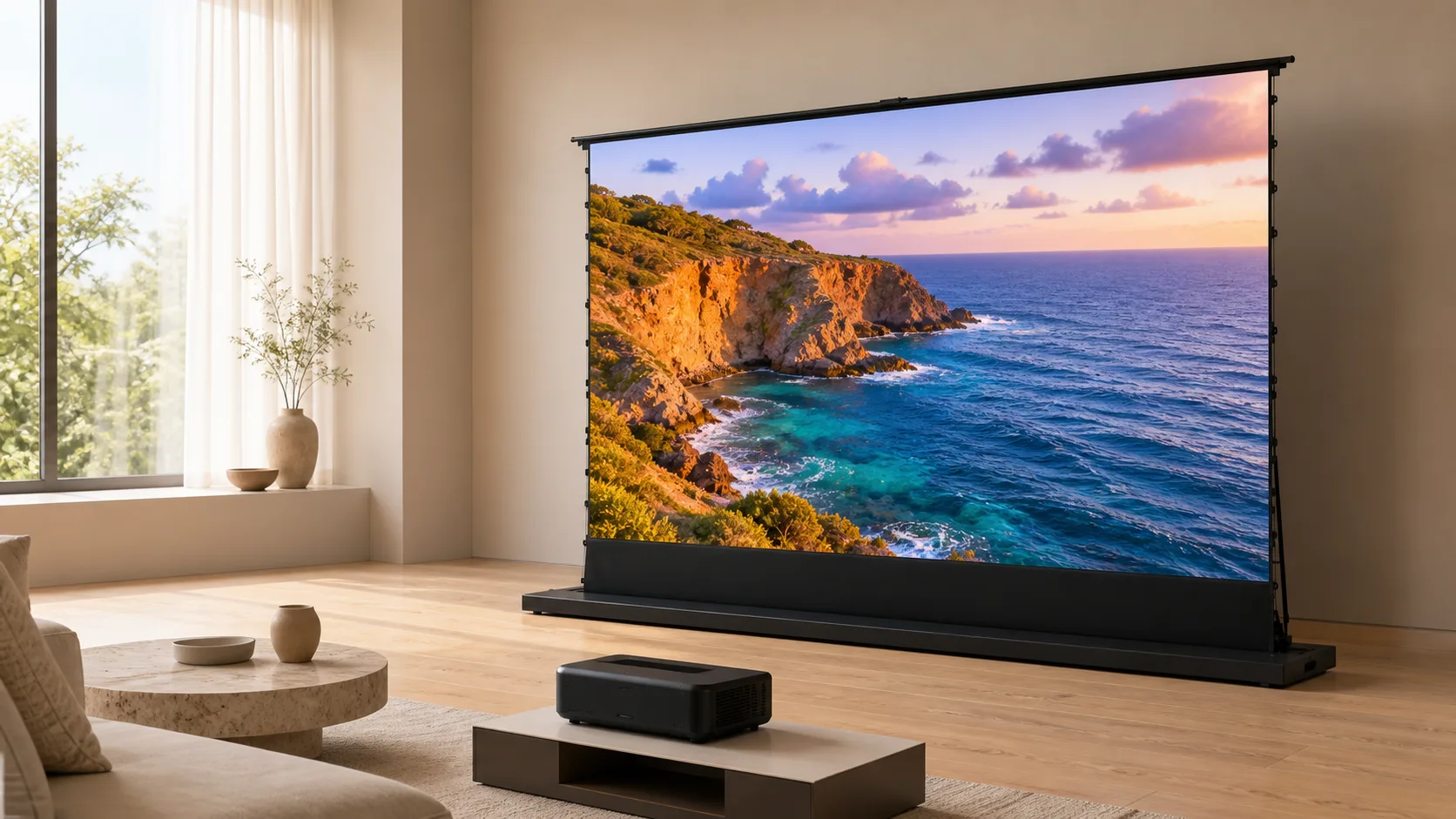

Modern Apartment UST Cinema with Motorized Floor Rising Tab-Tension Projection Screen

Modern Apartment UST Cinema

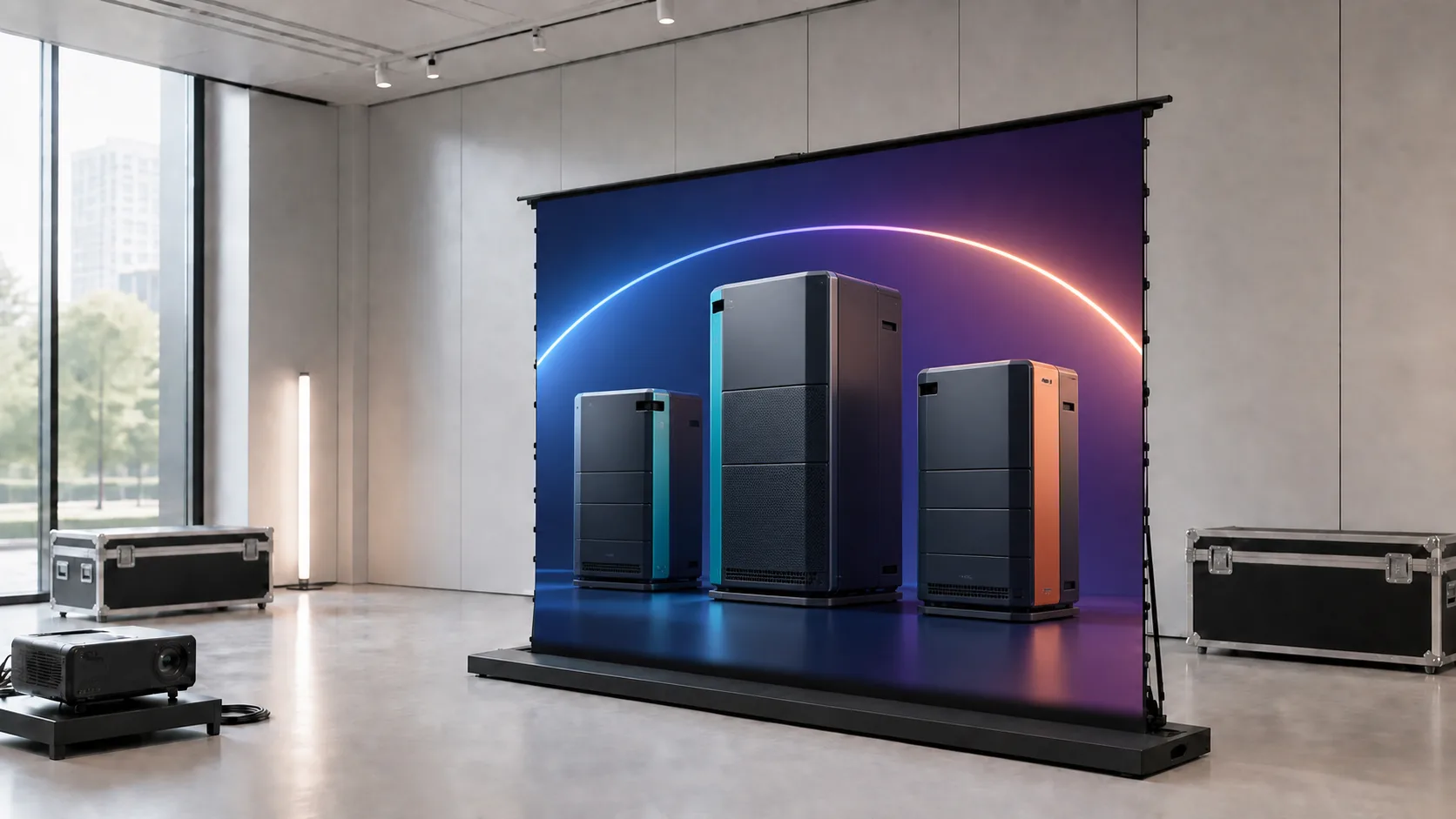

Corporate Roadshow Demo with Motorized Floor Rising Tab-Tension Projection Screen

Corporate Roadshow Demo

Features & Benefits

Floor-Rising Structure

Deploys vertically from a floor-positioned housing without wall or ceiling mounting.

Dual Support Structure

Rear support arms guide the screen during vertical deployment.

Tab-Tension Edges

Side tension cords support a flat viewing surface.

Remote & USB Trigger

Supplied product options include a wireless remote and USB trigger.

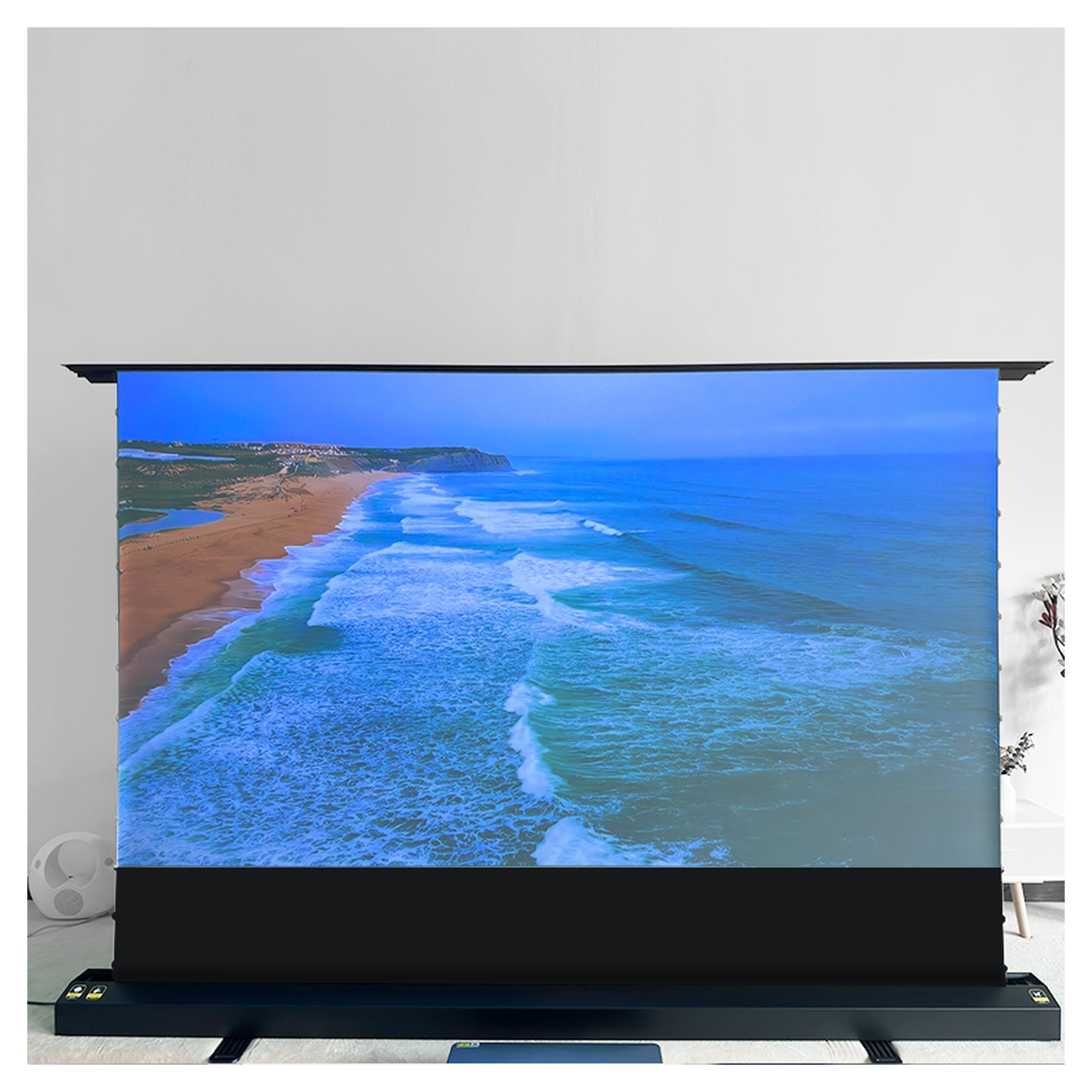

Motorized floor-rising tab-tension screen in use

Technical Specifications

Product typeMotorized floor-rising tab-tension projection screen

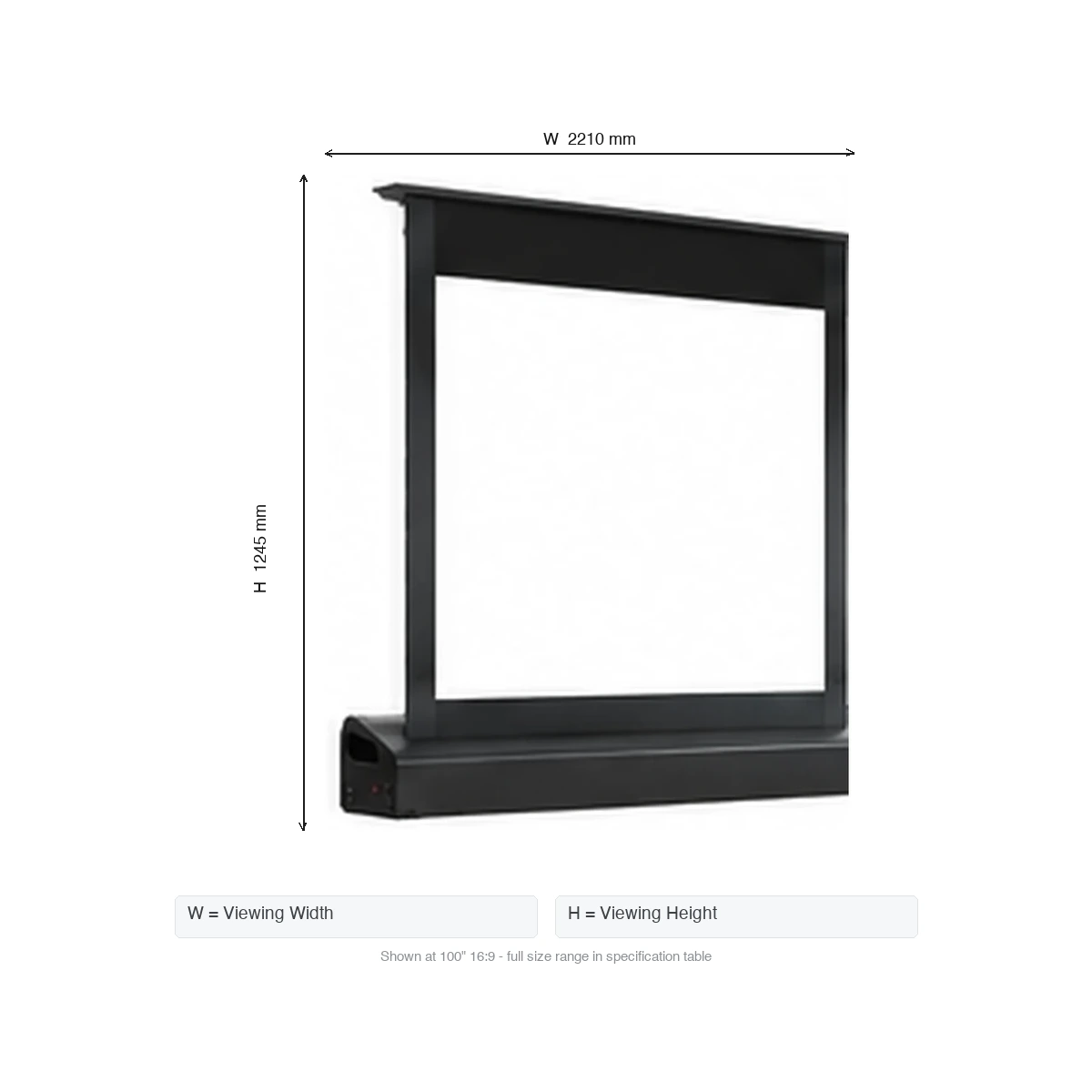

Available sizes84, 92, 100, 110, 120, 135 and 150 inches
Aspect ratio16:9
Screen materialsPVC Soft White, PVC Grey, Grey 3D Metallic, UST Black Grid ALR and Photon White
InstallationFloor placement; no fixed installation required
EnvironmentIndoor use
MotorTubular motor

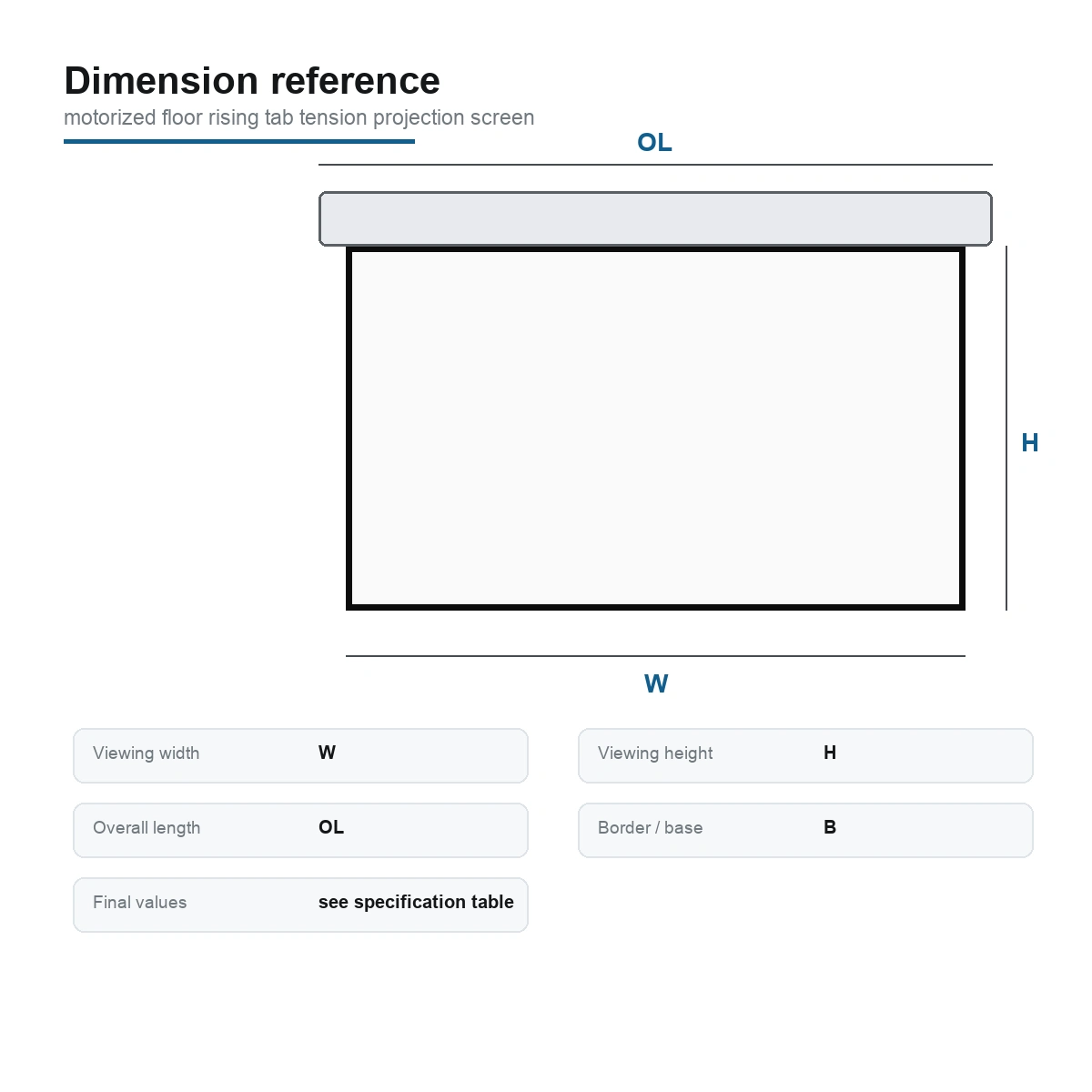

Housing cross-section160 × 119 mm; 68 mm top feature
Black bordersTop: 40 mm; sides: 45 mm; bottom: 300 mm
Supplied control optionsWireless remote and USB trigger

Choose a Material for This Screen

PVC Soft White projection screen material sample
Default

PVC Soft White

Available for this floor-rising screen. Confirm the selected material when requesting a quotation.

PVC Grey projection screen material sample

PVC Grey

Available for this floor-rising screen. Confirm the selected material when requesting a quotation.

Grey 3D Metallic projection screen material sample

Grey 3D Metallic

Available for this floor-rising screen. Confirm the selected material when requesting a quotation.

UST Black Grid ALR projection screen material sample

UST Black Grid ALR

Available for this floor-rising screen. Confirm the selected material when requesting a quotation.

Photon White projection screen material sample

Photon White

Available for this floor-rising screen. Confirm the selected material when requesting a quotation.

Motorized Floor Rising Tab-Tension Projection Screen + PVC Soft WhiteRequest This Configuration

Product Details

Front Product View of the motorized floor-rising projection screen
Front Product View
Rear Product View of the motorized floor-rising projection screen
Rear Product View
Right-Side Product View of the motorized floor-rising projection screen
Right-Side Product View

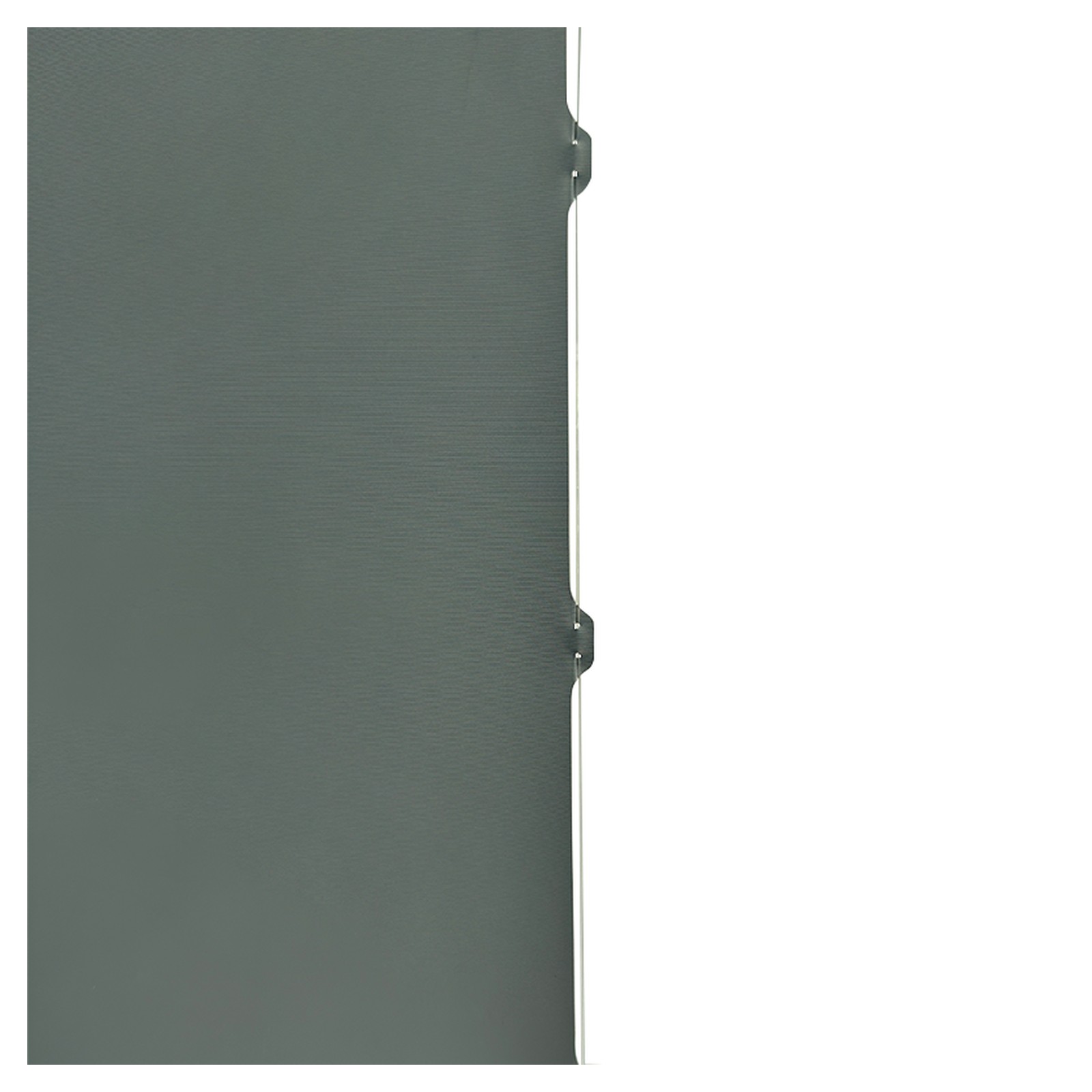

Tab-Tension Edge Detail of the motorized floor-rising projection screen
Tab-Tension Edge Detail

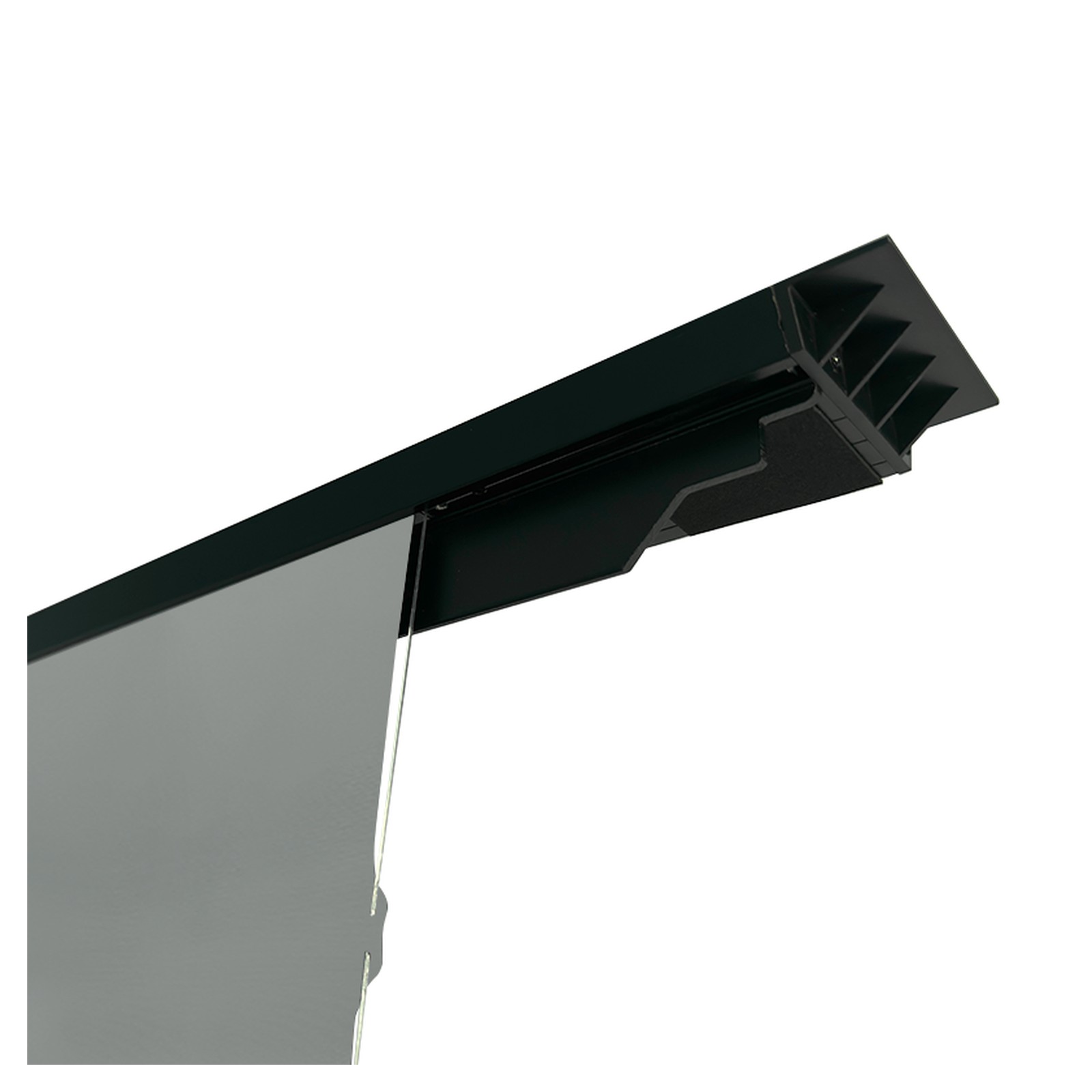

Top Roller Detail of the motorized floor-rising projection screen
Top Roller Detail

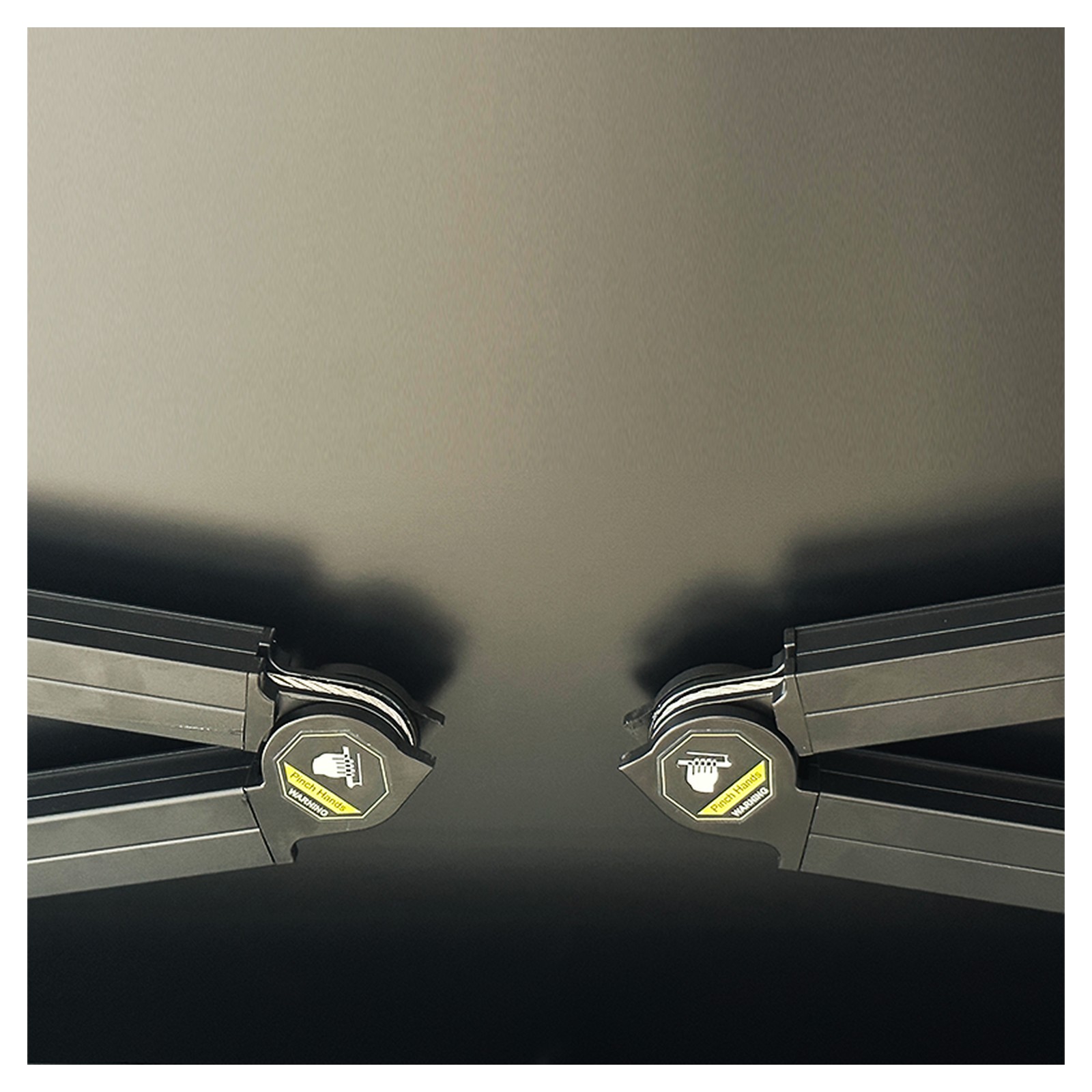

Rear Support Structure of the motorized floor-rising projection screen
Rear Support Structure

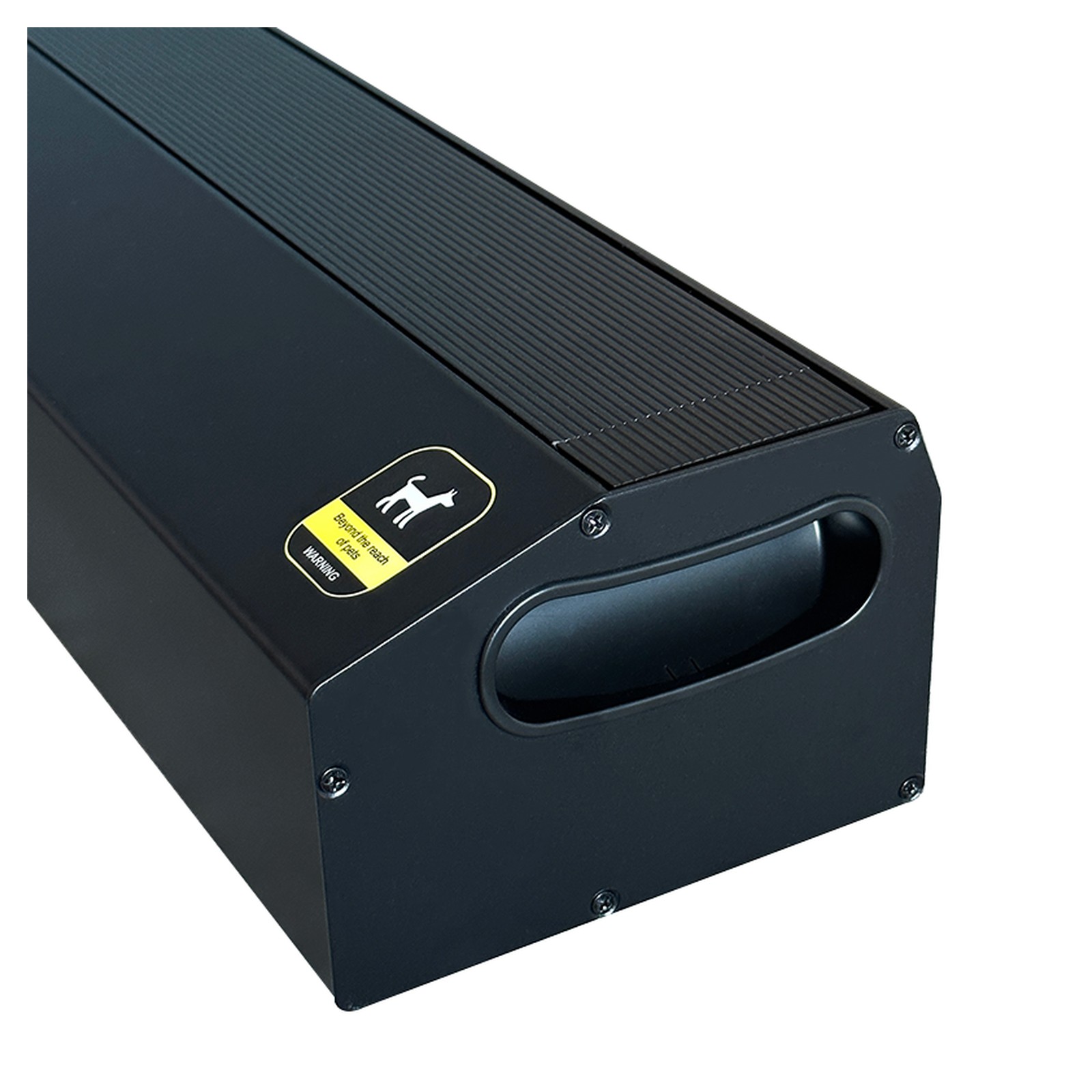

Right Carry Handle of the motorized floor-rising projection screen
Right Carry Handle

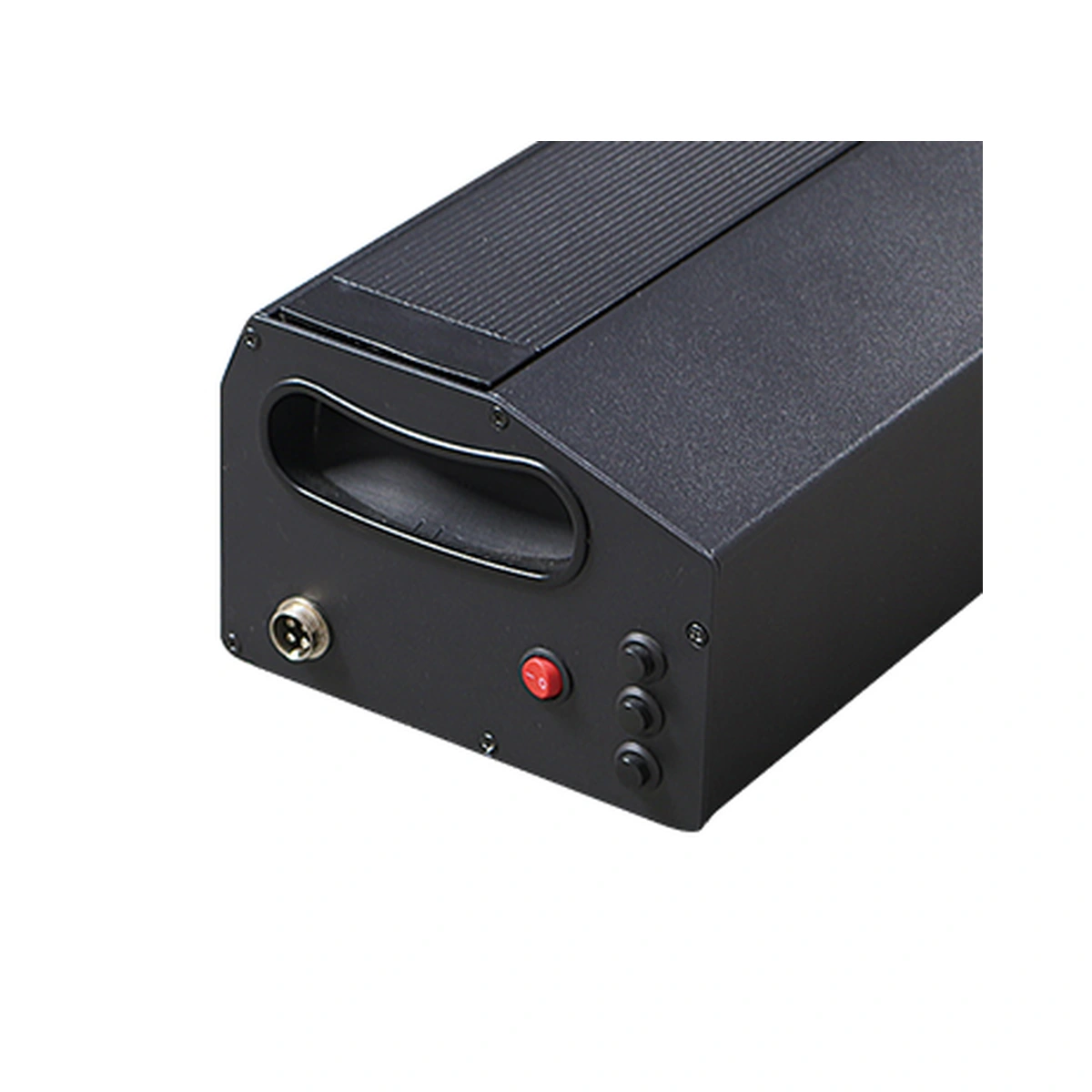

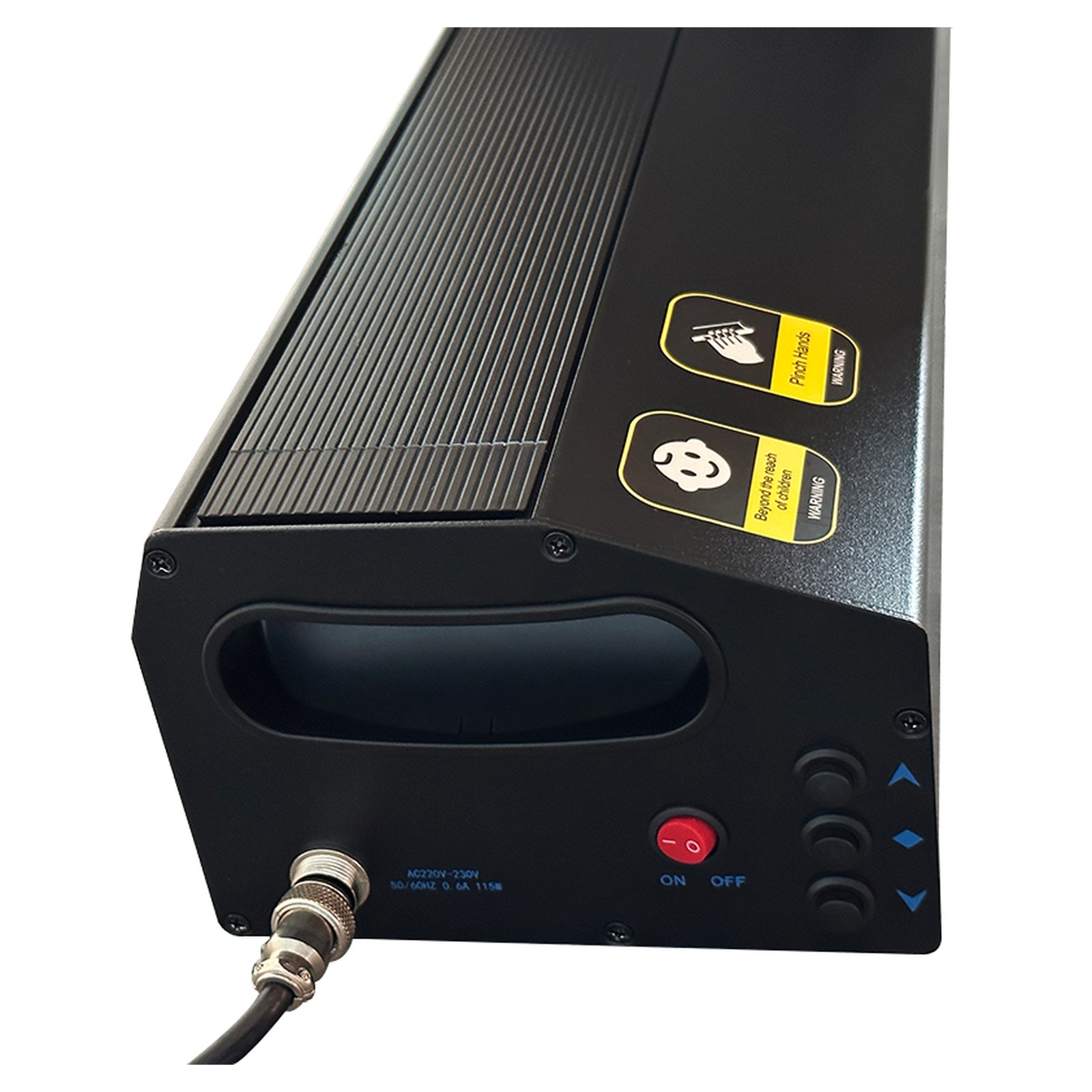

Left Control Panel of the motorized floor-rising projection screen
Left Control Panel

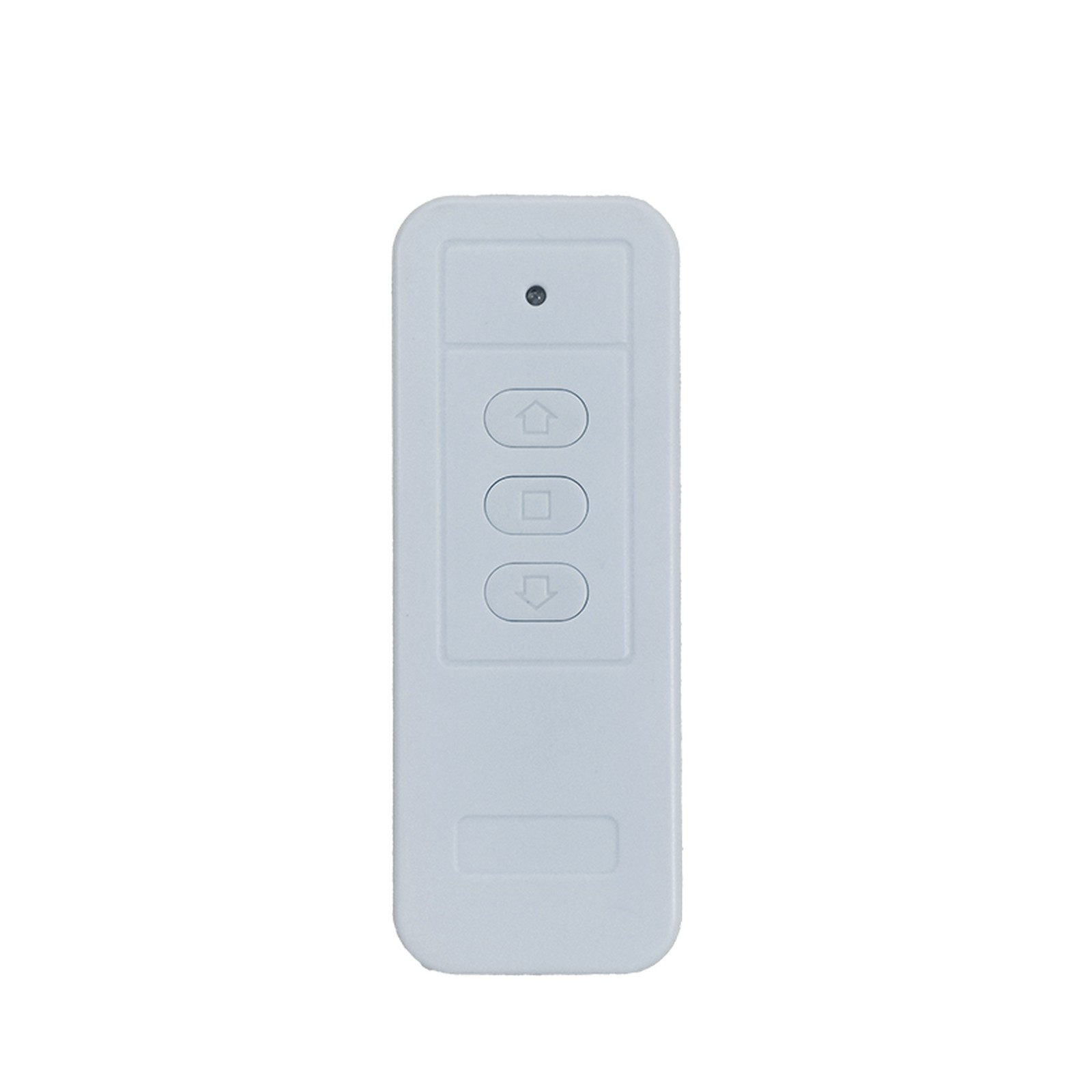

Wireless Remote Control of the motorized floor-rising projection screen
Wireless Remote Control

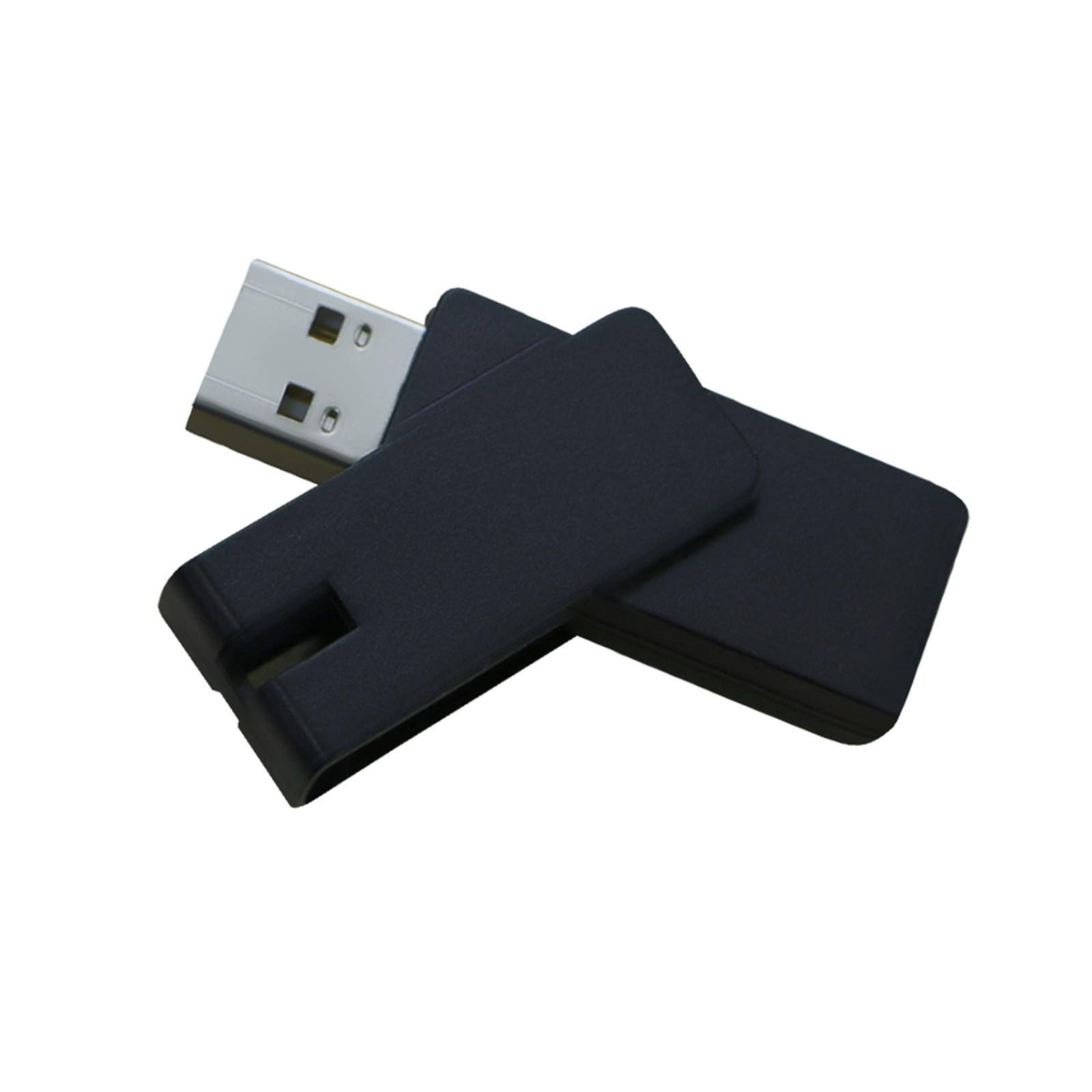

USB Trigger of the motorized floor-rising projection screen
USB Trigger

Product Highlights & Material Comparison

Explore the screen configuration and compare the available projection surfaces for your project.

Product Highlights

  • Aluminum casing
  • Floor-rising structure
  • Dual scissor support shaft structure
  • Quiet tubular motor
  • Voice, app, and USB trigger control support

Compare Screen Materials

Compare the listed gain, viewing angle and surface features. Ask us to confirm the material for your projector and room before ordering.

Available surface specifications
Screen materialGainViewing angle4KHigh contrastALRWashable
PVC Front Projection Matte White1.05165°YesNoNoYes
PVC Front Projection Matte Grey0.85165°YesYesYesYes
PVC Front Projection Silver Grey1.5120°YesYesYesYes
Black Grid ALR Fabric0.8180°YesYesYesYes
Black Grid ALR Fabric0.76180°YesYesYesYes

ALR means ambient light rejection. Values apply to the listed surface and model configuration. Confirm projector compatibility and cleaning instructions with MGF.

Sizes, installation & controls
Model configuration
Product CategoryTab-tension Projection Screens
Size Range72", 84", 92", 100", 110", 120", 135", 150"
Aspect Ratios16:9
Screen SurfacesPVC Front Projection Matte White, PVC Front Projection Matte Grey, PVC Front Projection Silver Grey, Black Grid ALR Fabric
InstallationFloor placement
Control MethodWireless remote, voice control, mobile app, and USB trigger
Default MaterialPVC Soft White Fabric
Power SupportTubular motor

See This Product in a Project

See the 100-inch garden-room cinema case using an MFR floor-rising screen with an ultra-short-throw projector.

Installation & Control

Installation

  • Indoor floor placement
  • No fixed wall or ceiling installation required
  • Housing may be positioned with compatible furniture subject to project clearance

Control Methods

  • Wireless remote control
  • USB trigger
  • Tubular motor

Frequently Asked Questions

Where can this screen be installed?

It is designed for indoor floor placement and does not require fixed wall or ceiling installation.

Which sizes are listed in the supplied dimension table?

The supplied dimension table covers 16:9 sizes from 84 to 150 inches: 84, 92, 100, 110, 120, 135 and 150 inches.

Which screen materials are supplied for this model?

The supplied material set includes PVC Soft White, PVC Grey, Grey 3D Metallic, UST Black Grid ALR and Photon White.

Which control accessories are shown in the product materials?

The supplied product images show a wireless remote and USB trigger.
