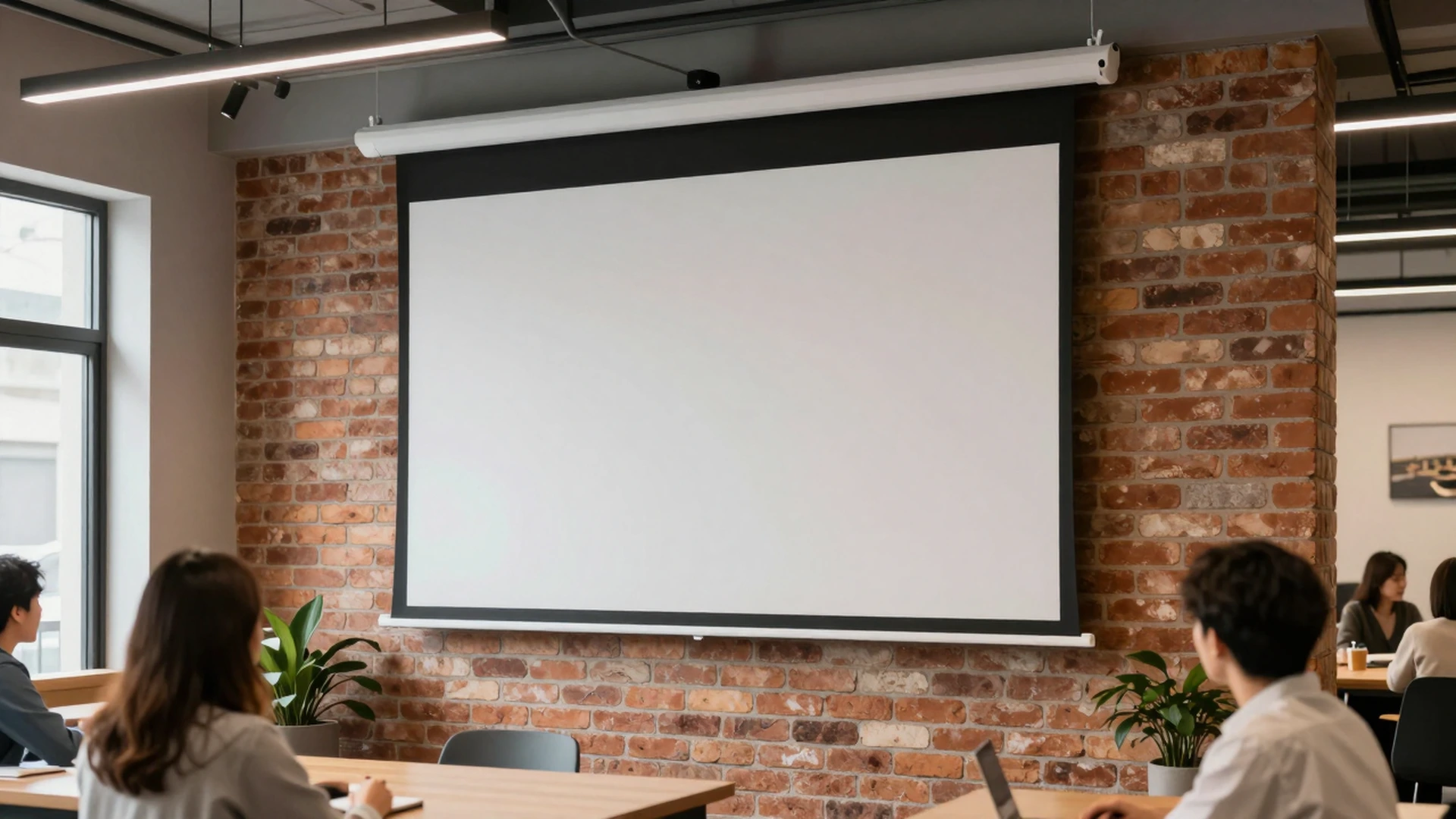

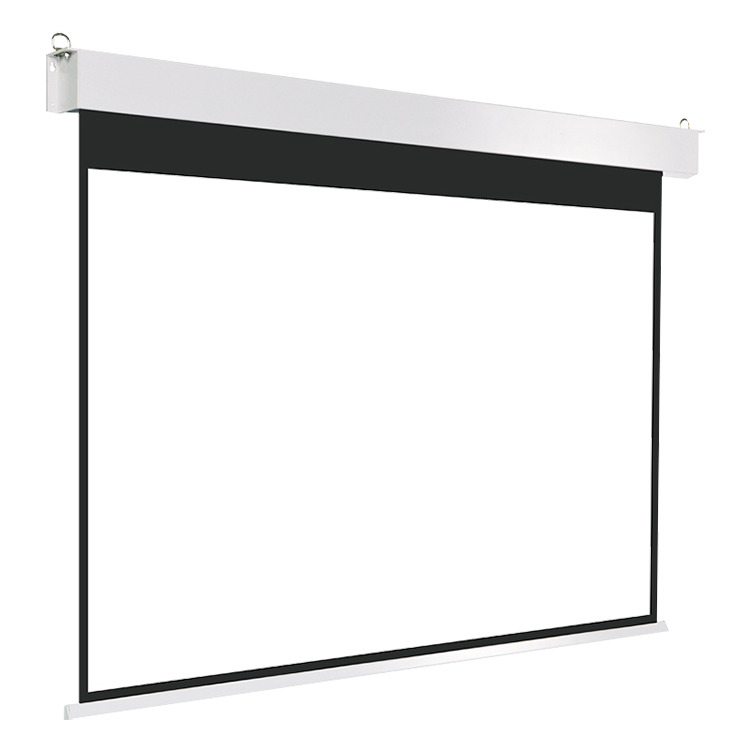

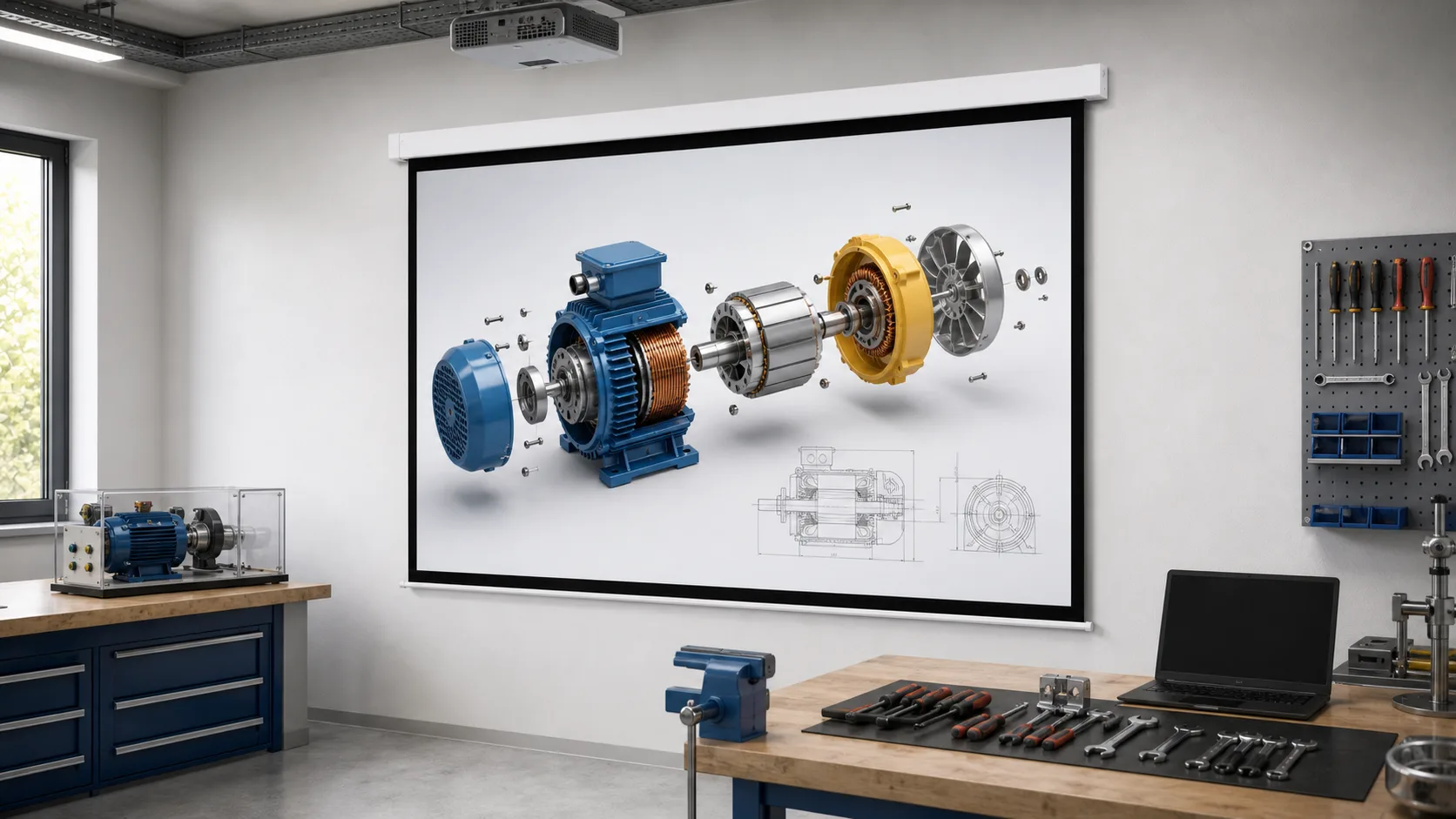

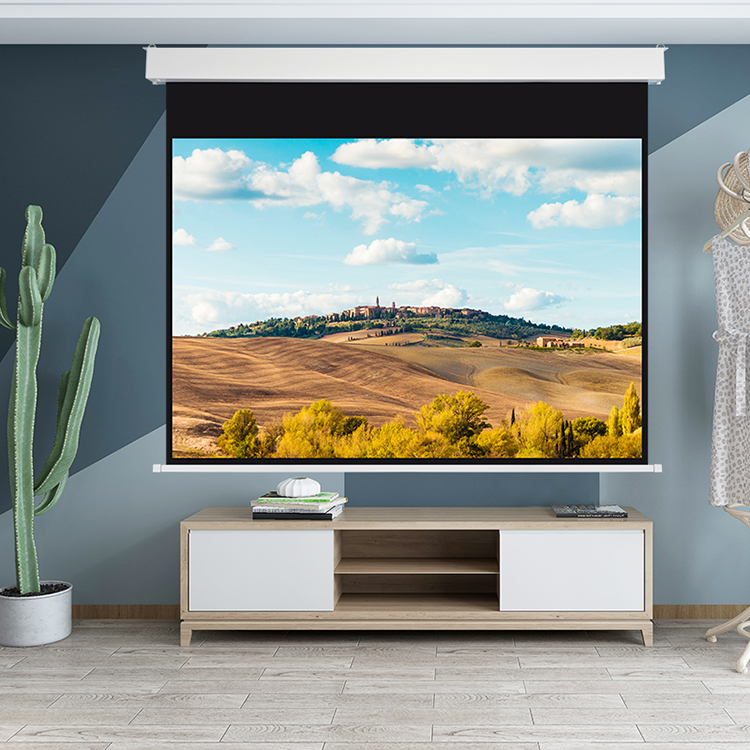

A square steel-housing motorized projection screen for meeting rooms, classrooms and indoor wall- or ceiling-mounted installations. Specify the screen size, aspect ratio, material and control configuration for your project. Also suitable for indoor home cinema installations.

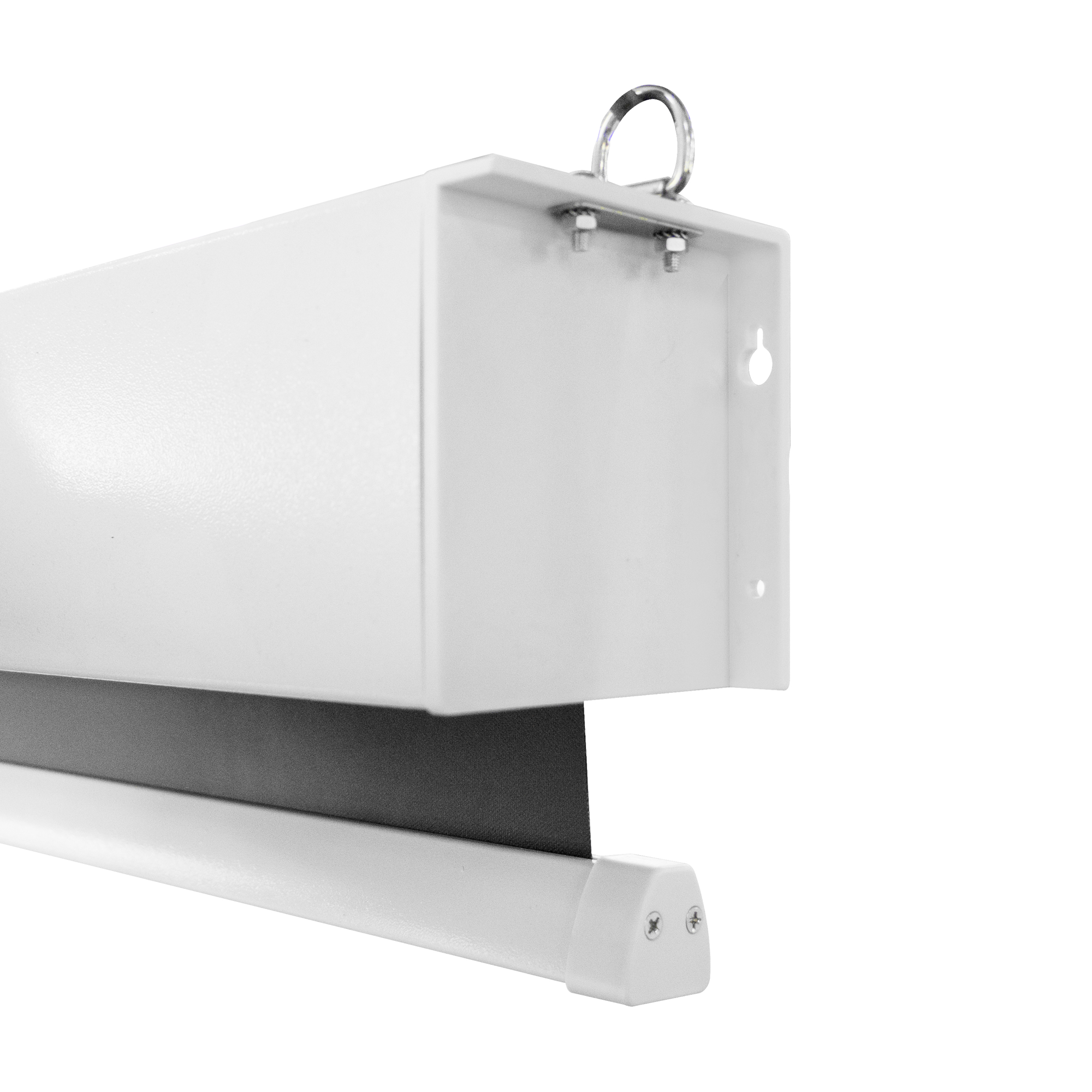

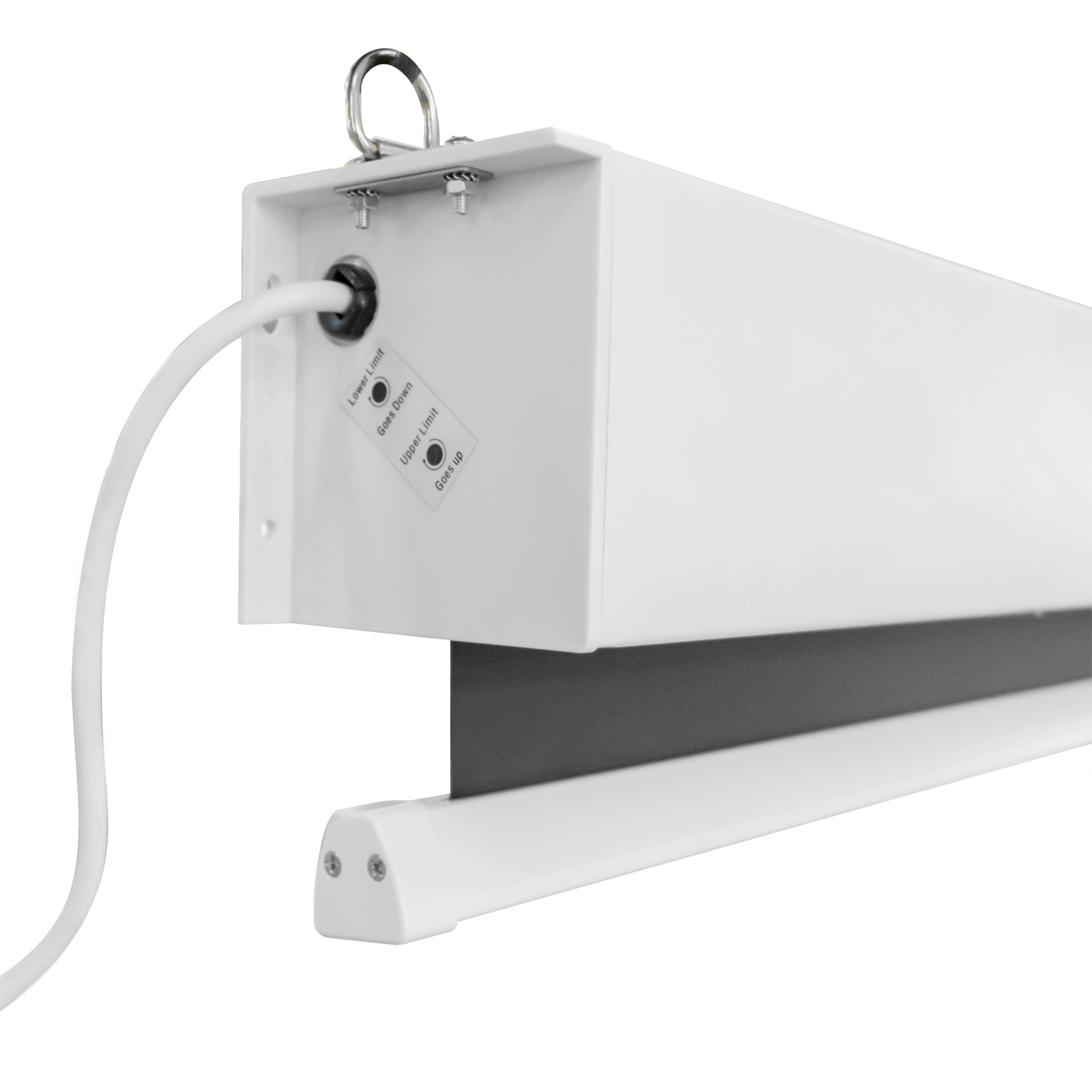

Square steel housing with 67 × 75 mm or 75 × 83 mm cross-section, depending on model.
Available sizes: 72, 84, 92, 100, 110, 120, 135 and 150 inches. Aspect ratios: 1:1, 4:3 and 16:9. Confirm the size and aspect-ratio combination for the selected model.
Available in GRY, MWE, MWK and MWL screen materials.

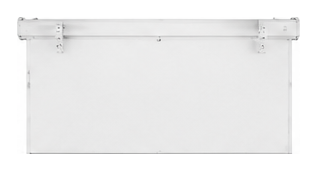

Integrated hanging points support wall-mounted or ceiling-mounted installation.
| Available sizes | 72, 84, 92, 100, 110, 120, 135 and 150 inches |
|---|---|
| Aspect ratios | 1:1, 4:3 and 16:9 |
| Screen materials | GRY, MWE, MWK and MWL |
| Housing cross-section | 67 × 75 mm and 75 × 83 mm |
| Black borders | Confirm top and side black borders against the drawing for the selected model, size and aspect ratio. |
| Installation | Wall or ceiling mounted |
| Net weight range | 10.1–22.0 kg |
| Gross weight range | 11.4–24.5 kg |
Explore the screen configuration and compare the available projection surfaces for your project.
Compare the listed gain, viewing angle and surface features. Ask us to confirm the material for your projector and room before ordering.
| Screen material | Gain | Viewing angle | 4K | High contrast | ALR | Washable |
|---|---|---|---|---|---|---|

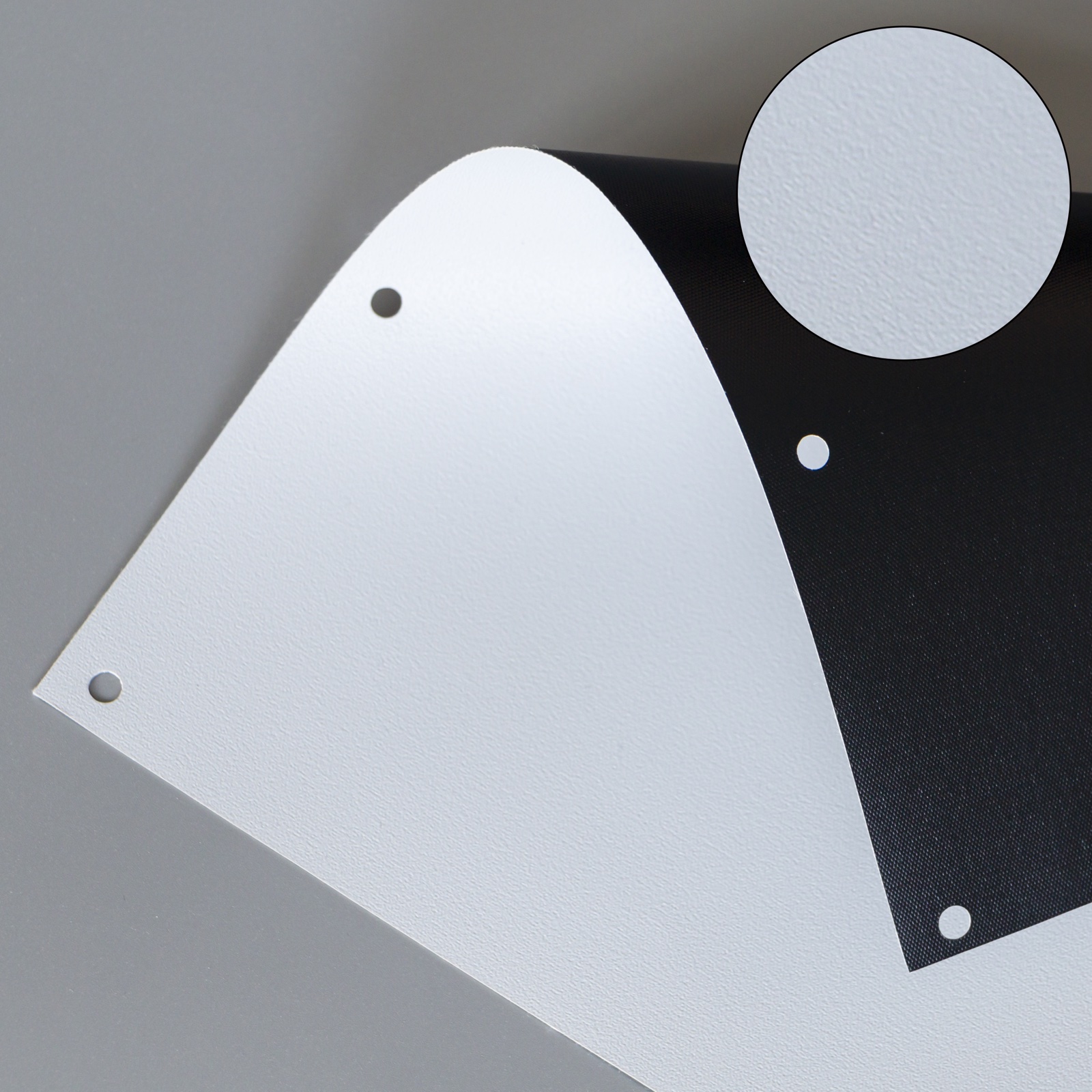

| GRY — Grey Coated Fabric | 0.85 | 165° | Yes | Yes | Yes | Yes |

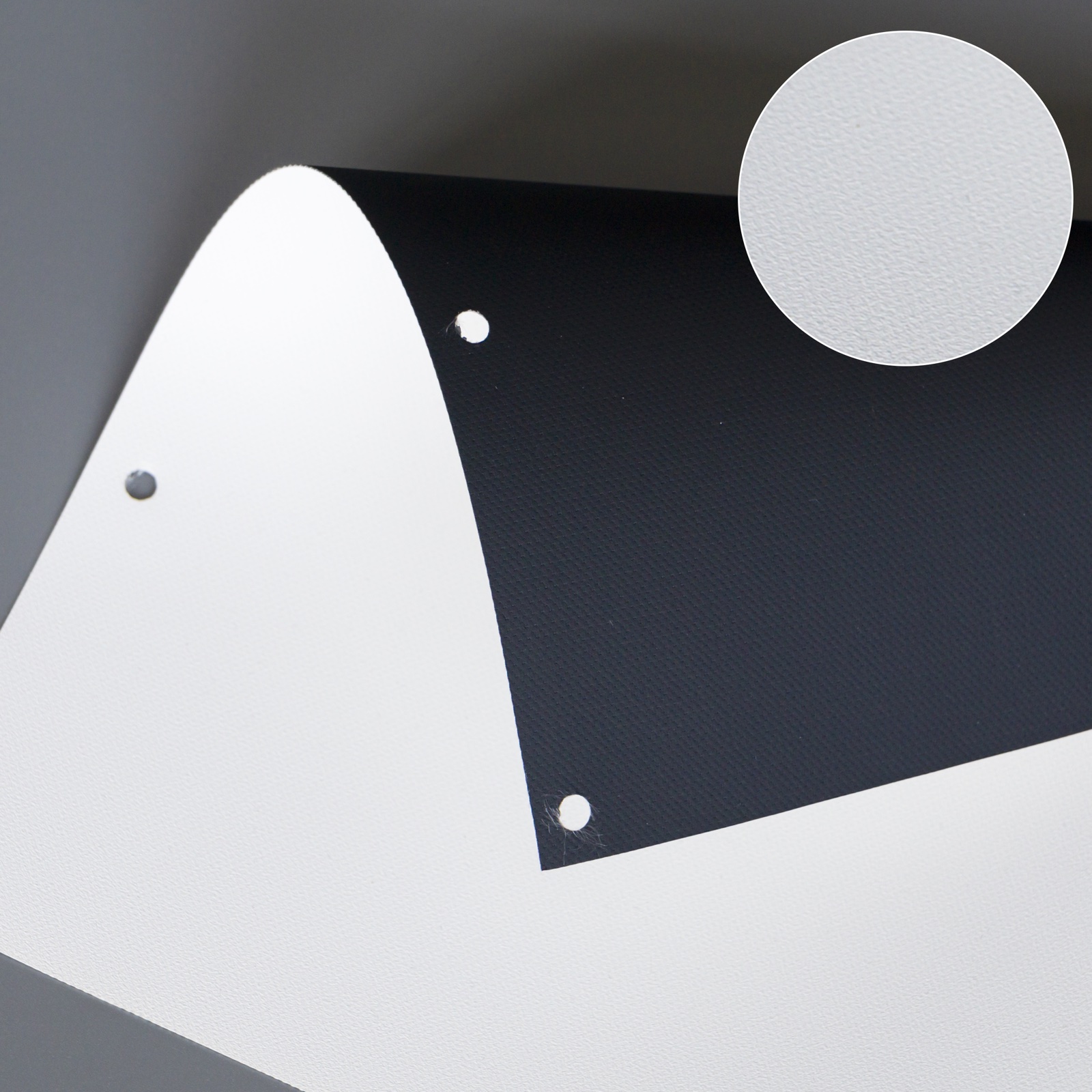

| MWE — White PVC Fabric | 1.05 | 165° | Yes | Yes | No | Yes |
| MWK — White Warp Knitted Fabric | 1 | 155° | Yes | Yes | No | Yes |

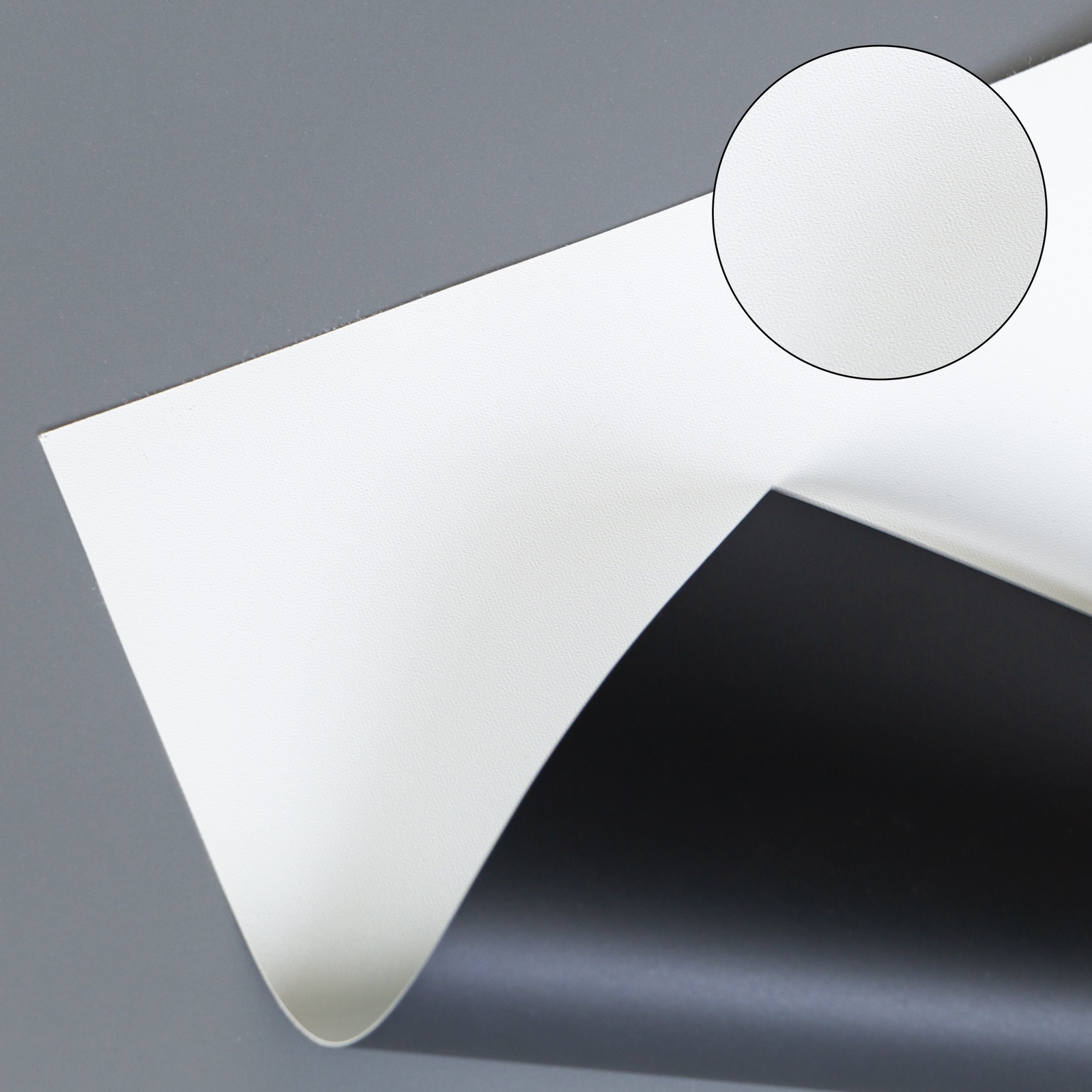

| MWL — White Coated Fabric | 1 | 165° | Yes | Yes | No | Yes |
ALR means ambient light rejection. Values apply to the listed surface and model configuration. Confirm projector compatibility and cleaning instructions with MGF.
| Product Category | Electric Projection Screens |
|---|---|
| Size Range | 72, 84, 92, 100, 110, 120, 135 and 150 inches; confirm availability for the selected aspect ratio and model. |
| Aspect Ratios | 1:1, 4:3, 16:9 |
| Screen Surfaces | GRY — Grey Coated Fabric; MWE — White PVC Fabric; MWK — White Warp Knitted Fabric; MWL — White Coated Fabric |
| Installation | Ceiling or wall mounted |
| Control Method | Wireless remote and external wired control box; confirm the supplied configuration before ordering. |
| Motor Type | Synchronous / tubular motor |

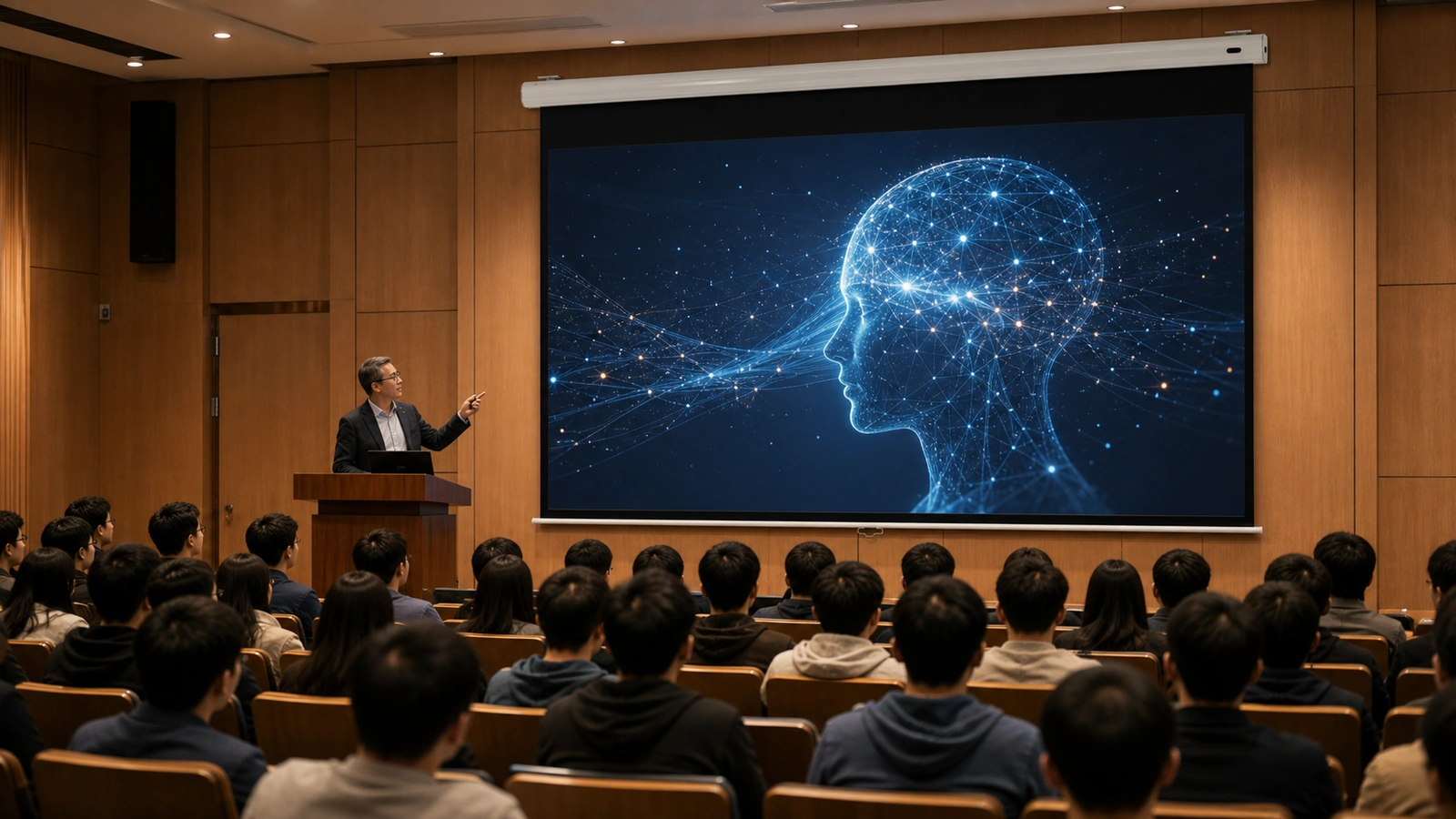

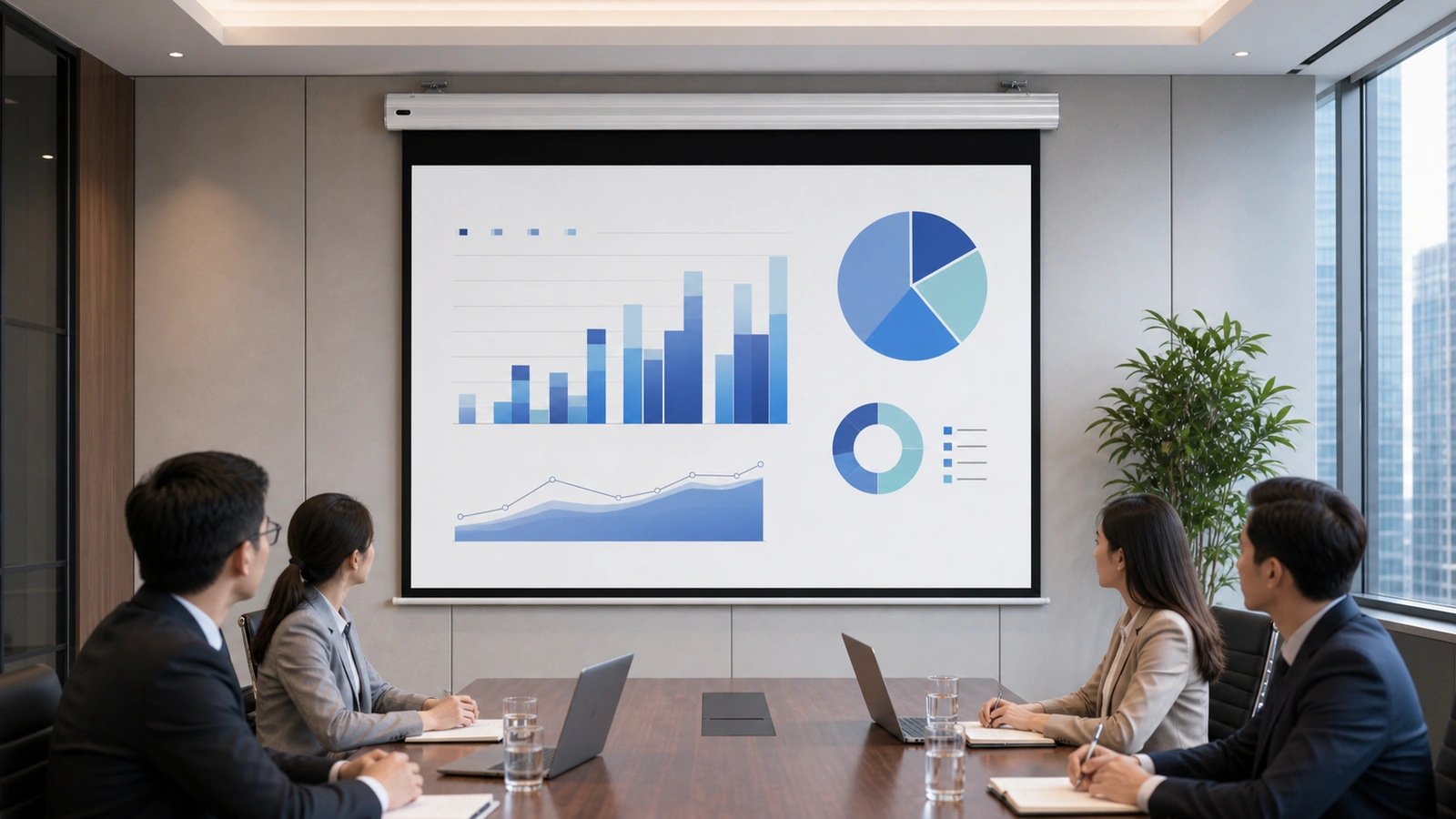

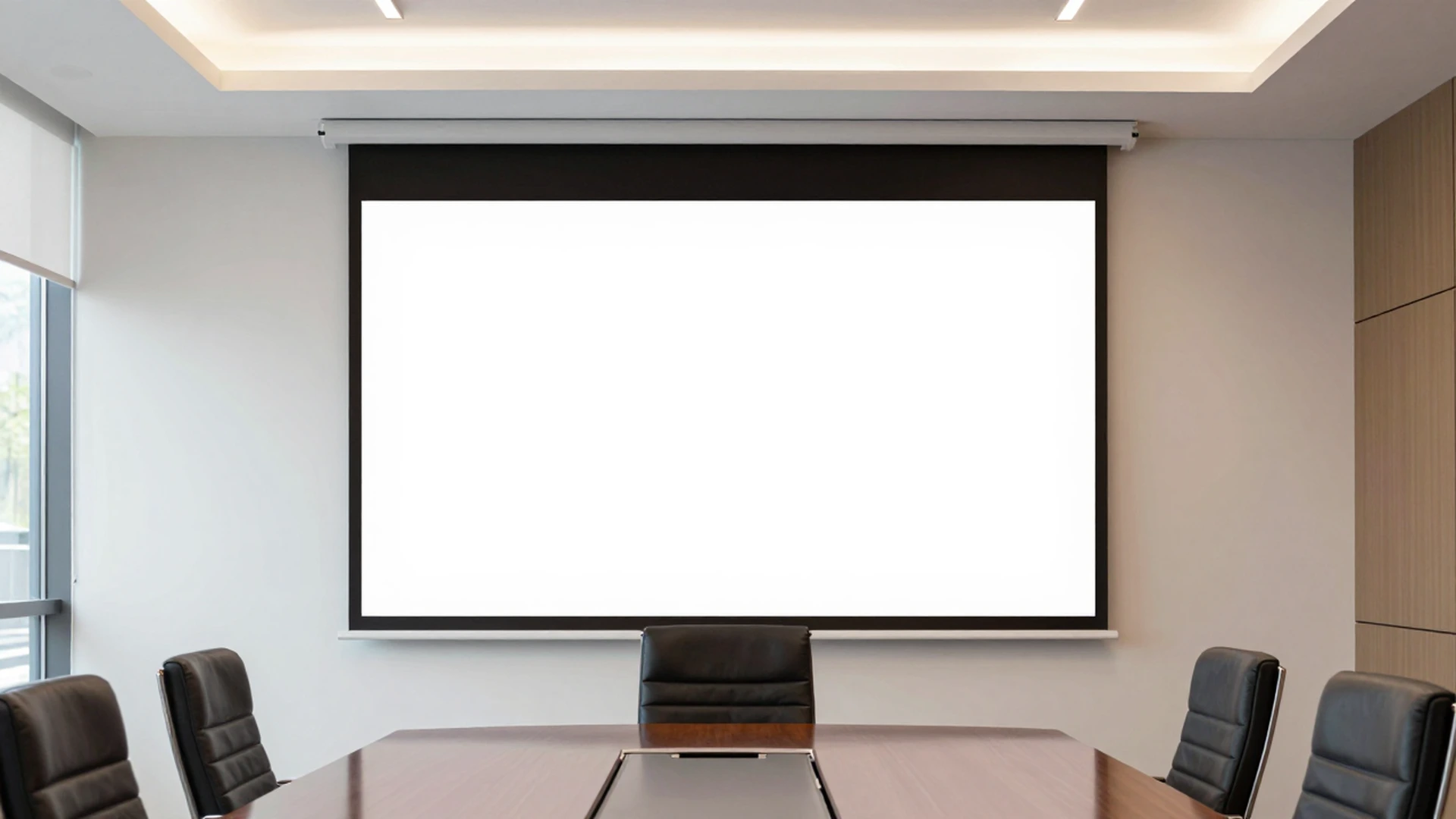

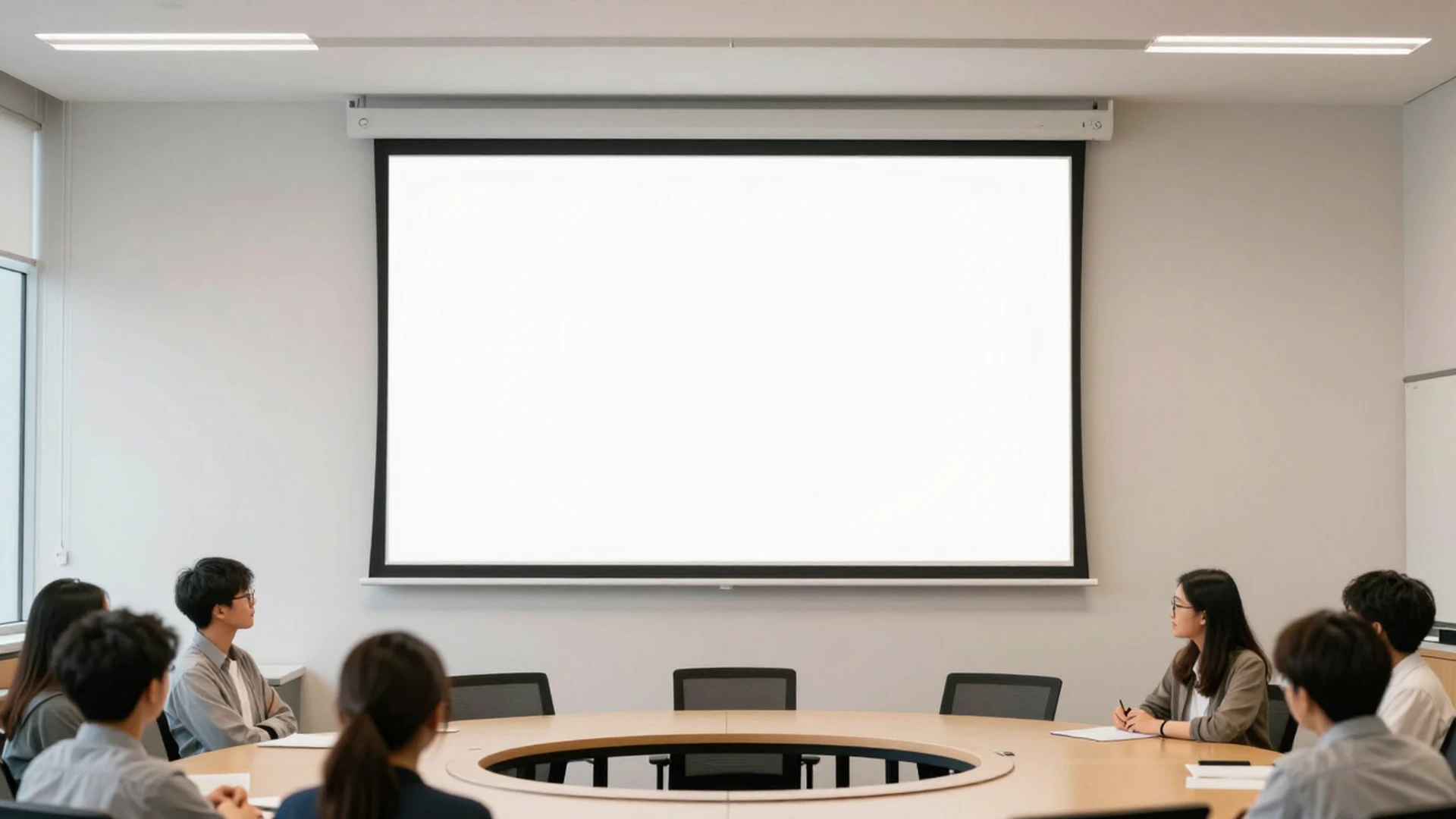

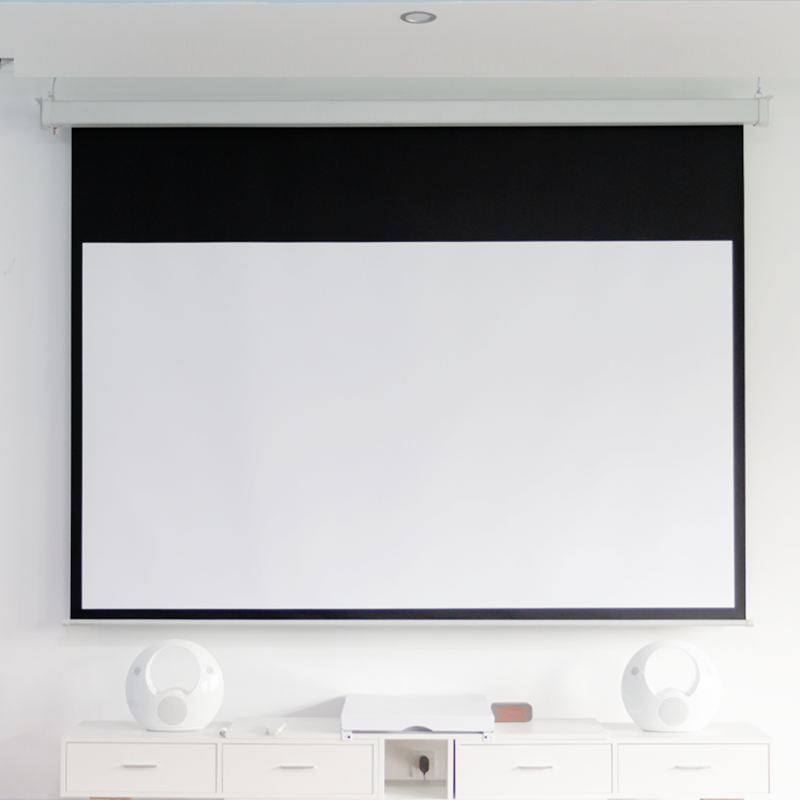

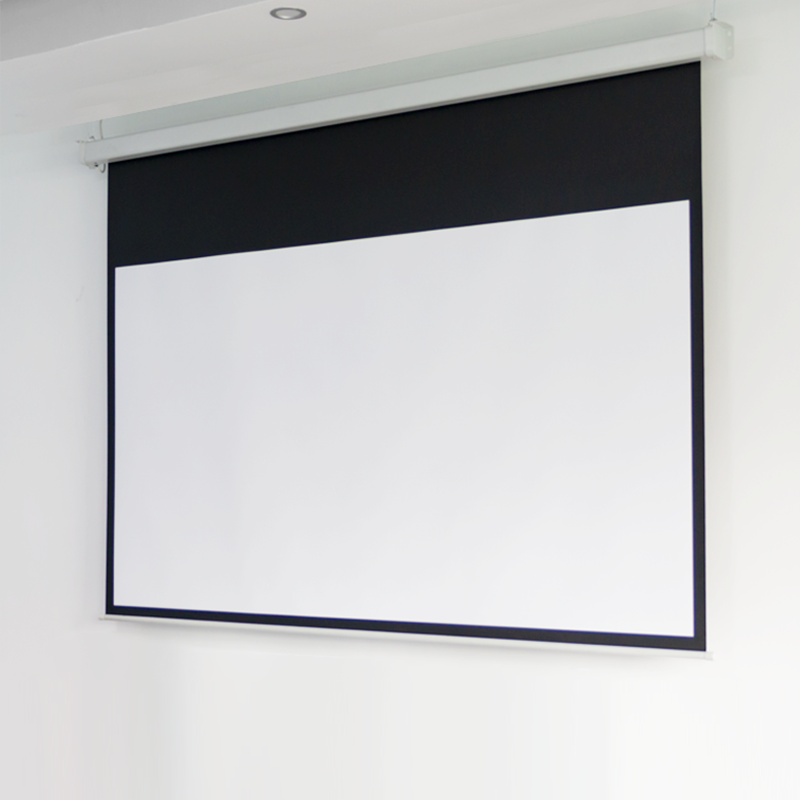

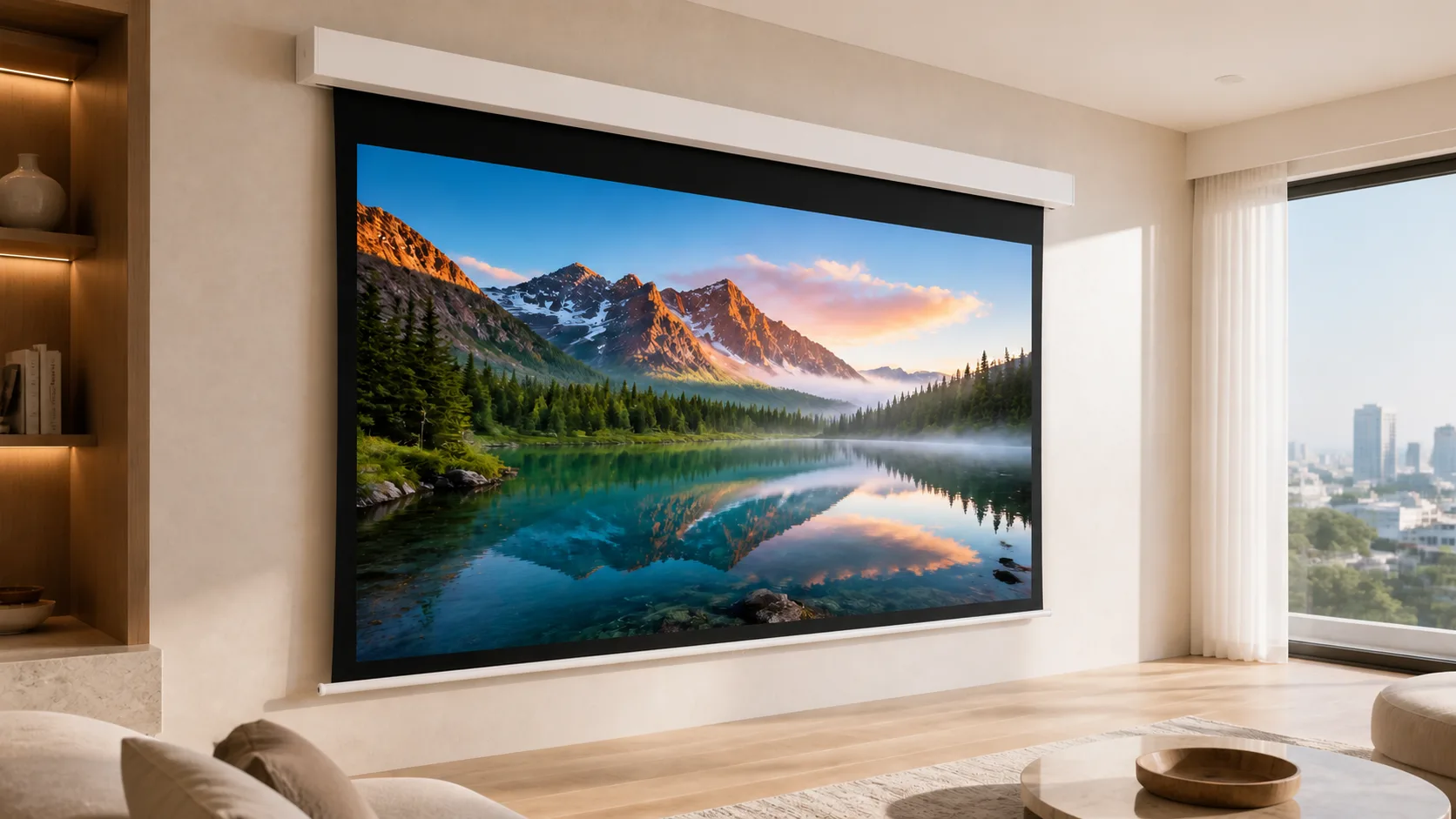

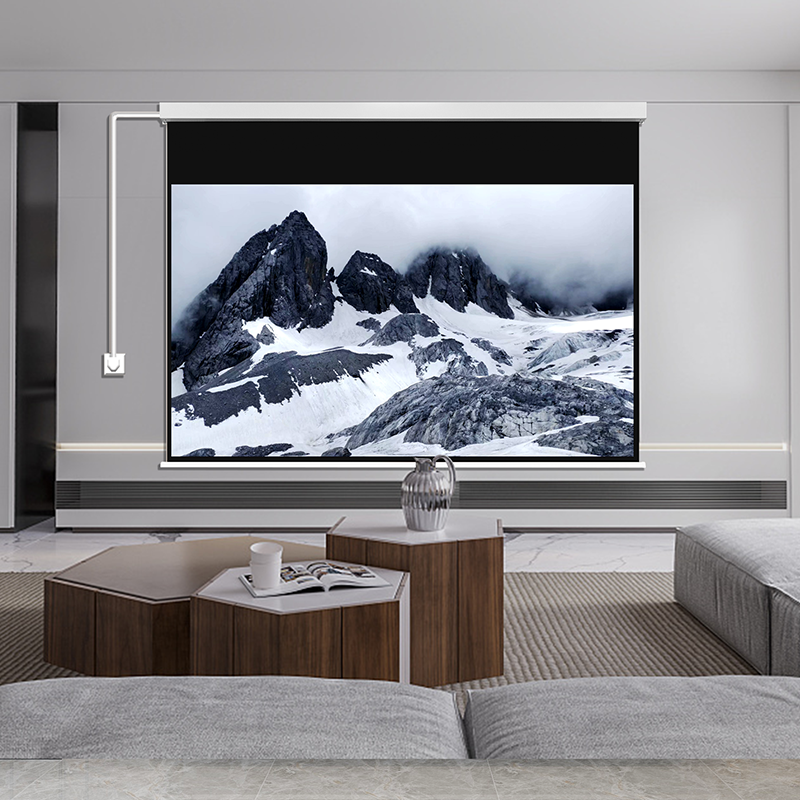

It is a practical square steel-housing electric screen for indoor meeting rooms, classrooms, living rooms and other wall- or ceiling-mounted projection installations.

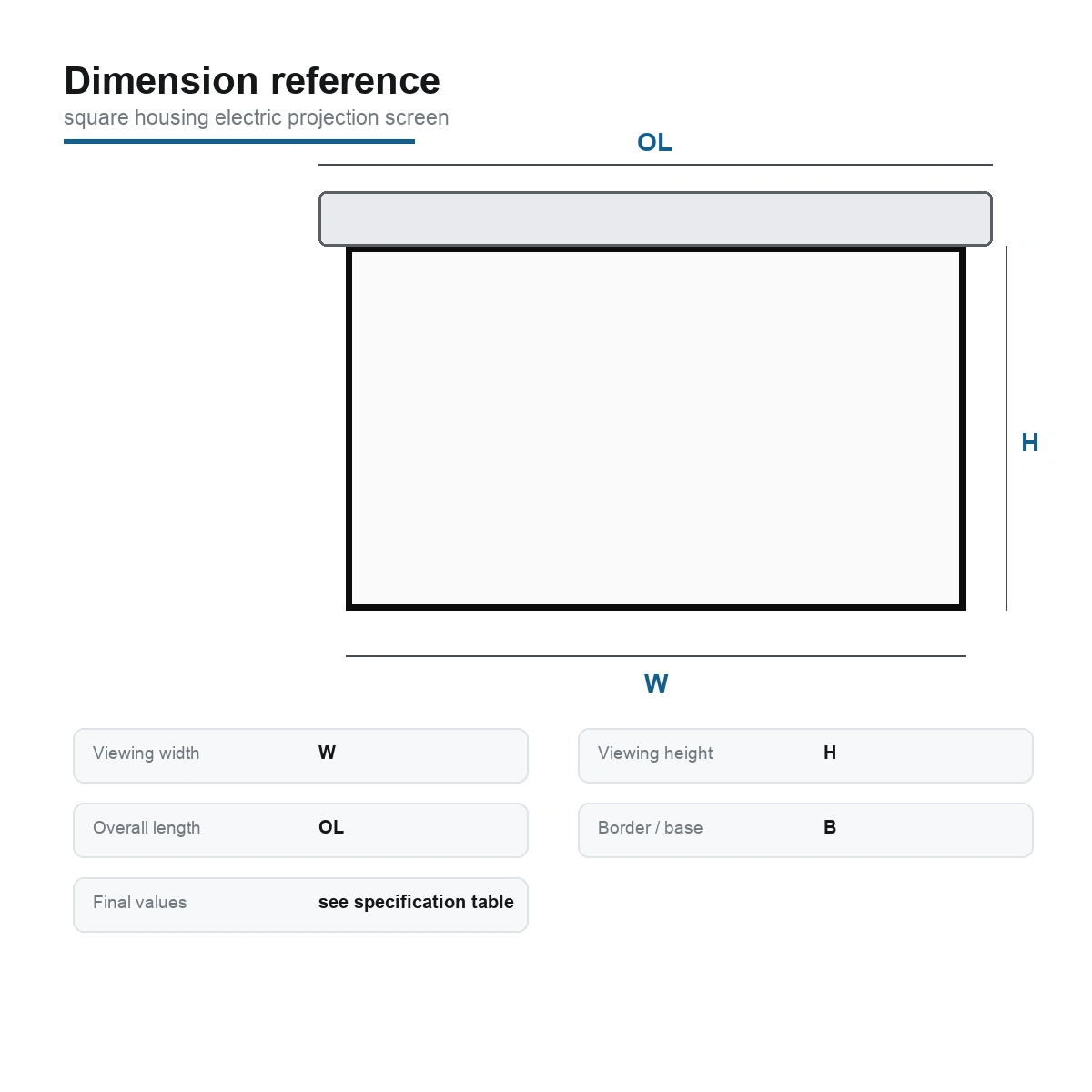

The model sheet lists 72, 84, 92, 100, 110, 120, 135 and 150 inches, with 1:1, 4:3 and 16:9 aspect ratios. Confirm the available size and aspect-ratio combination, overall dimensions and black borders for the selected model before ordering.
Available materials are GRY — Grey Coated Fabric, MWE — White PVC Fabric, MWK — White Warp Knitted Fabric and MWL — White Coated Fabric. Confirm the material code and its compatibility with the selected size, projector and room conditions before ordering. Contact MGF Screens with your projector type and room-lighting conditions for a material recommendation.
The product supports indoor wall or ceiling installation with synchronous or tubular motor options. Wireless remote and external wired control are configuration-dependent and should be confirmed before ordering.
Yes. MGF Screens supports OEM, ODM and project-specific customization. Final size, aspect ratio, material, housing finish, control configuration and packaging are confirmed for the selected configuration before order approval.
Request a quote for your Square Housing Electric Screen configuration. Send your required size, aspect ratio, quantity, material code, mounting method, control requirements and delivery destination. For private-label or customized orders, review our OEM and custom solutions and include your branding or packaging requirements.
