Square Low-Voltage Tab-tension Electric Projection Screen
A fixed indoor electric projection screen combining a square housing, side tab-tension support, wall-mounted or ceiling-suspended installation, and convenient remote operation.
- Tab-tensioned projection surface
- Square housing profile
- Wall-mounted or ceiling-suspended installation

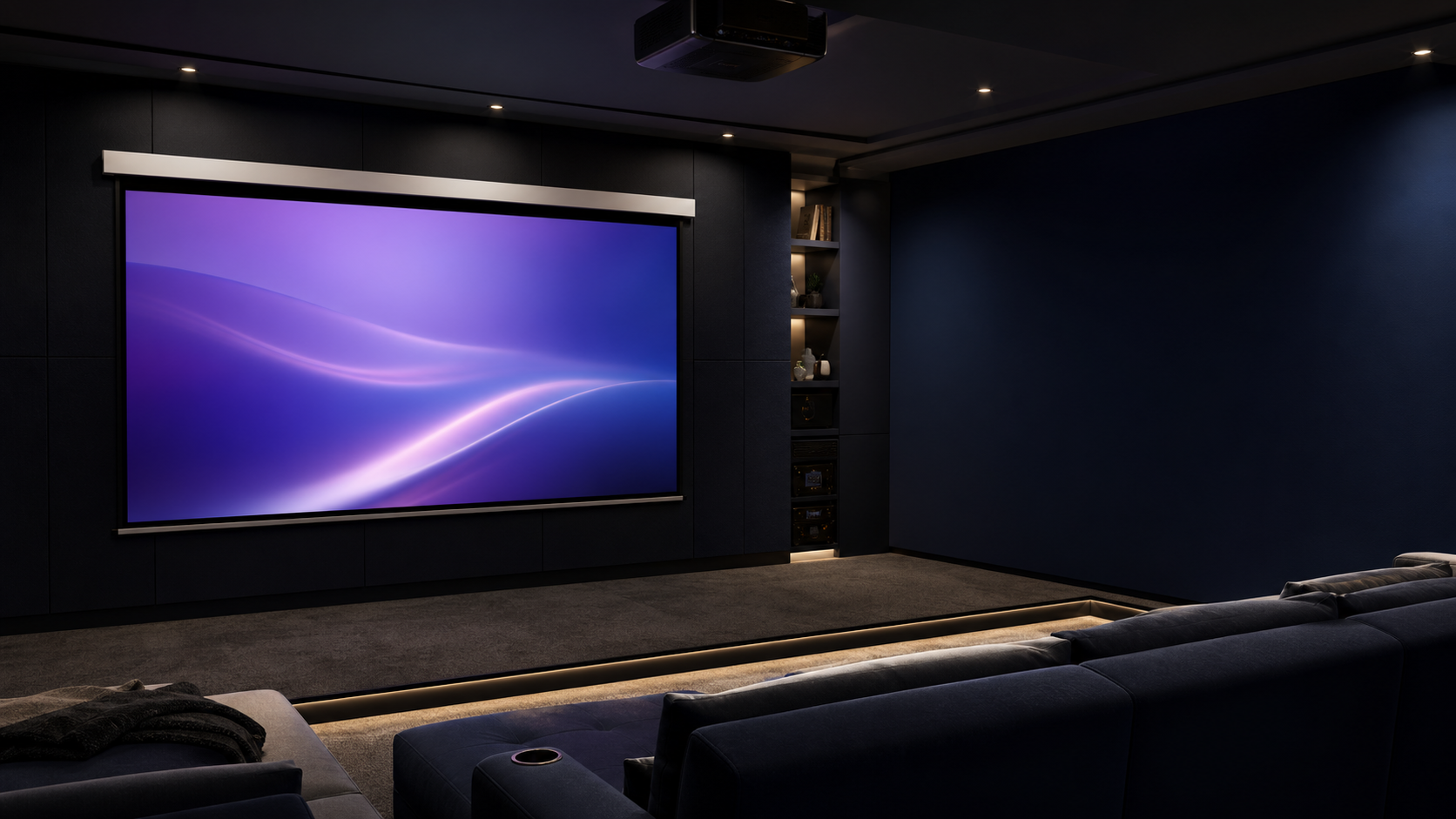

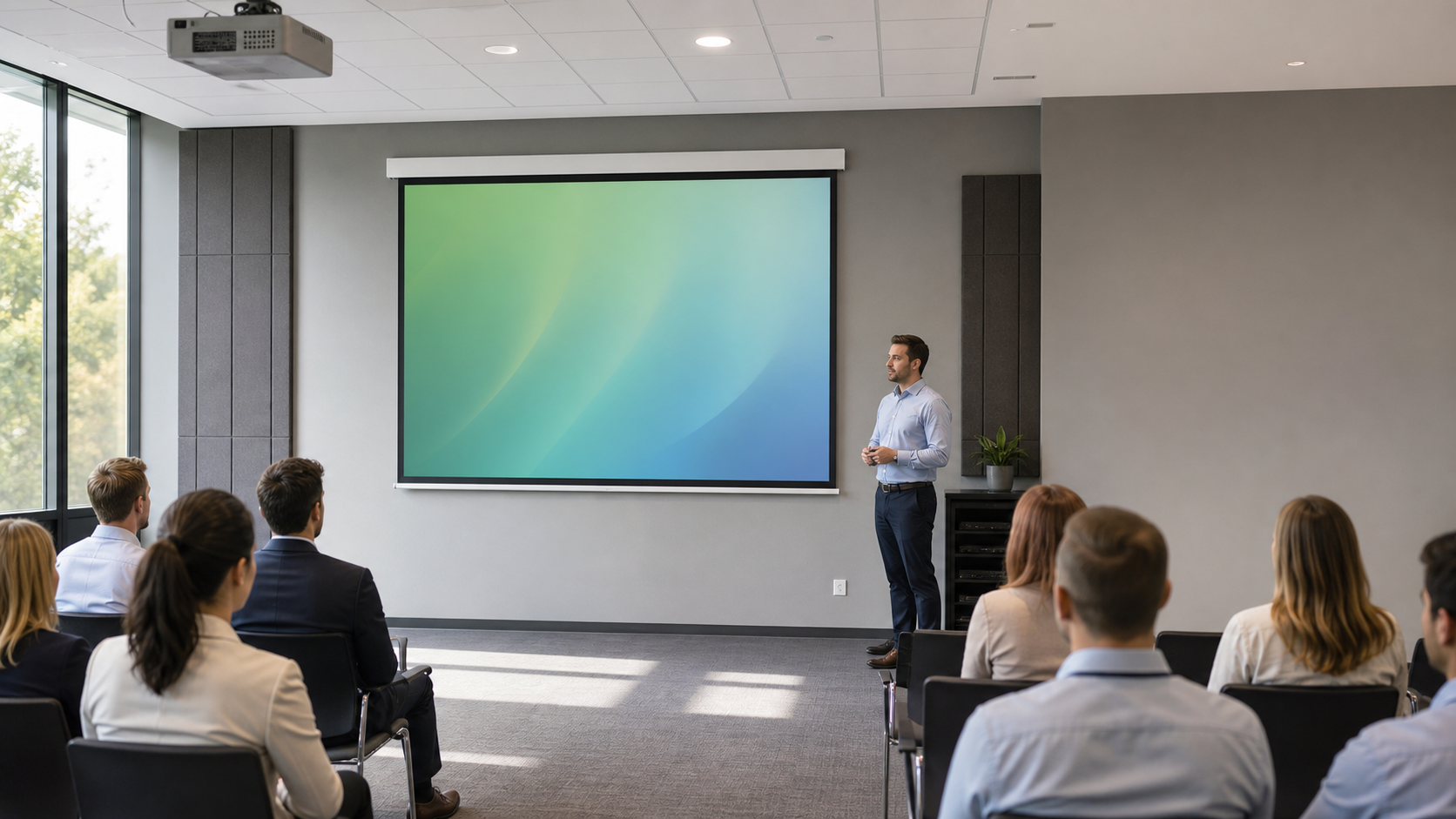

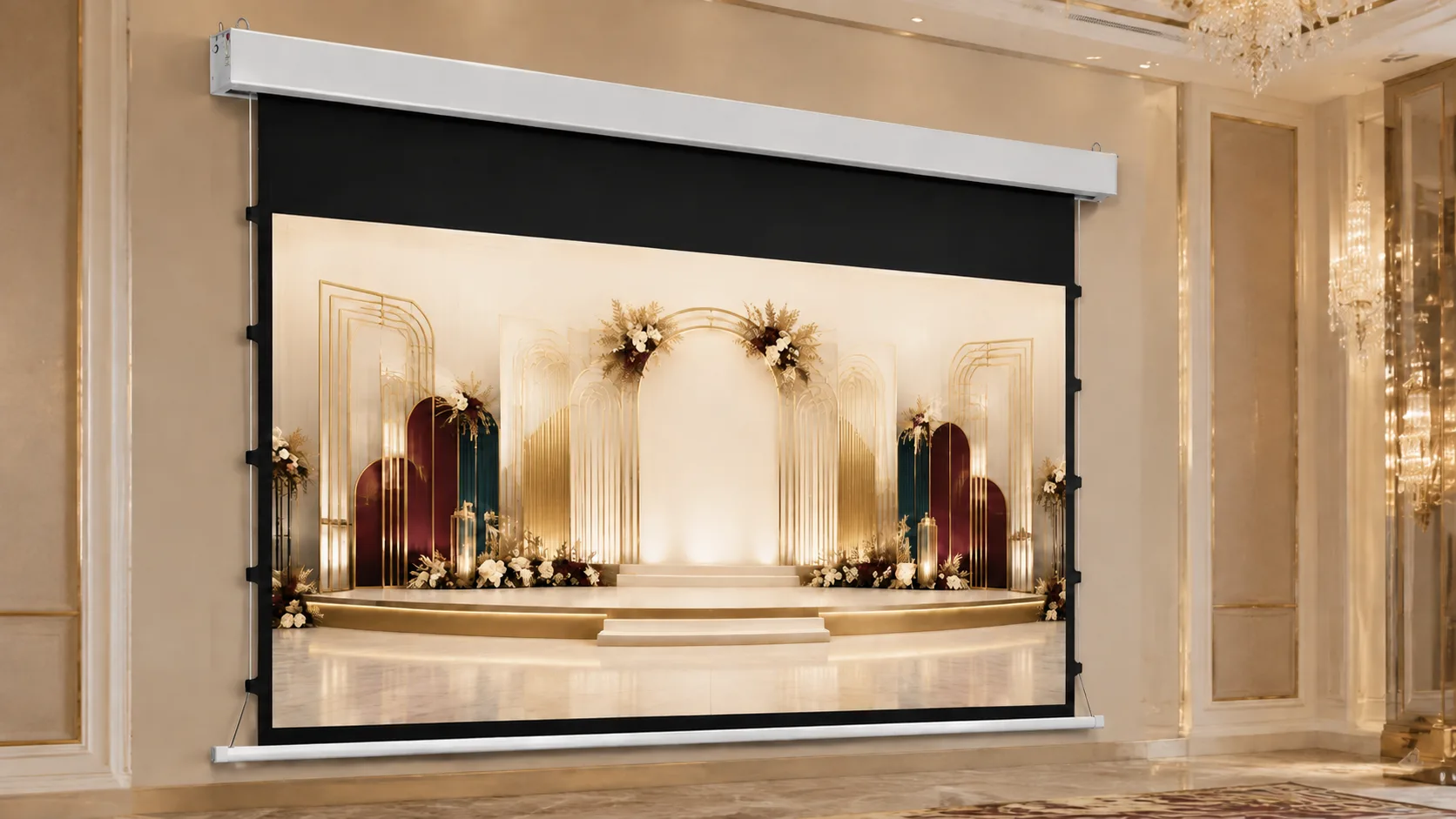

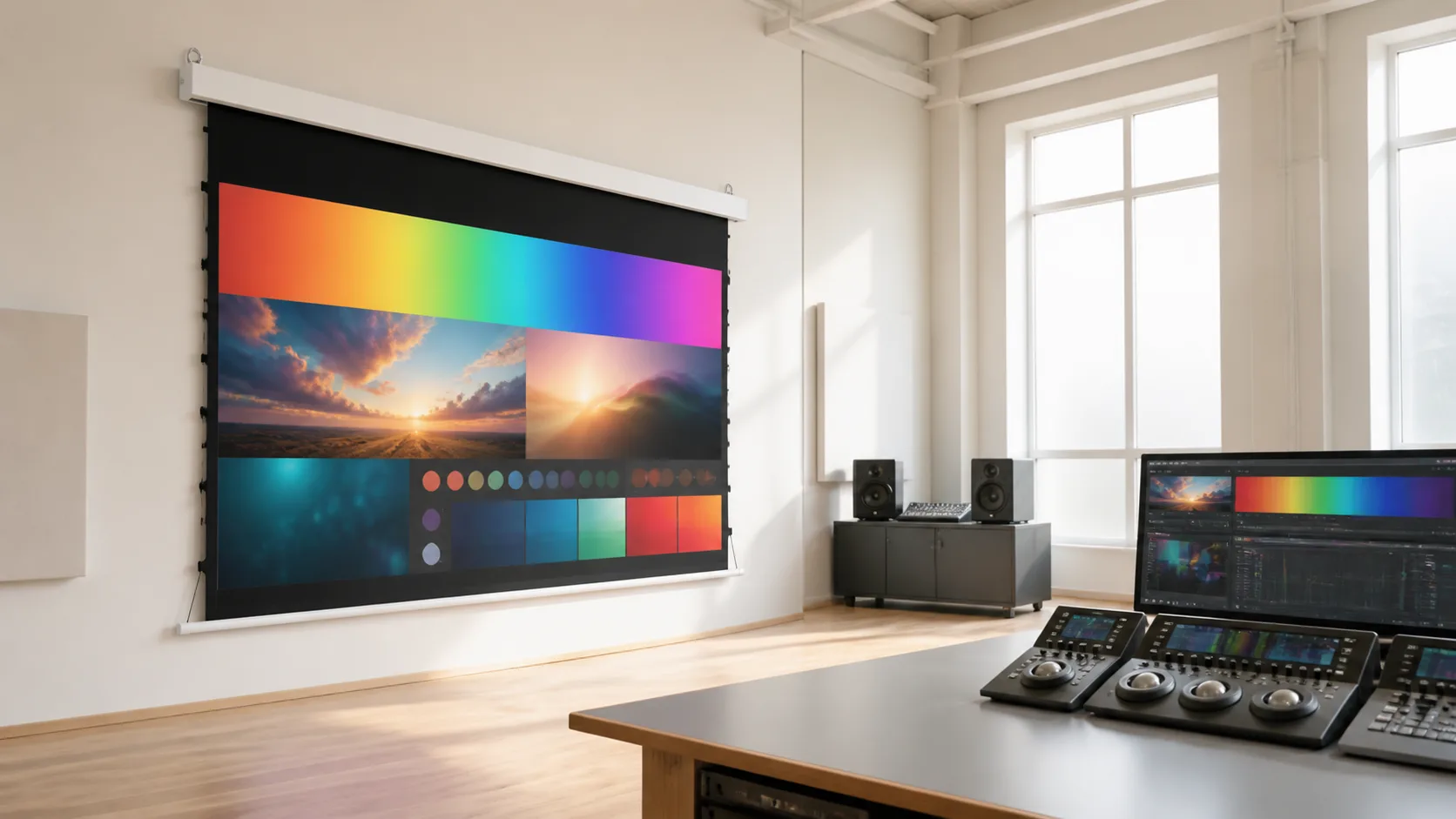

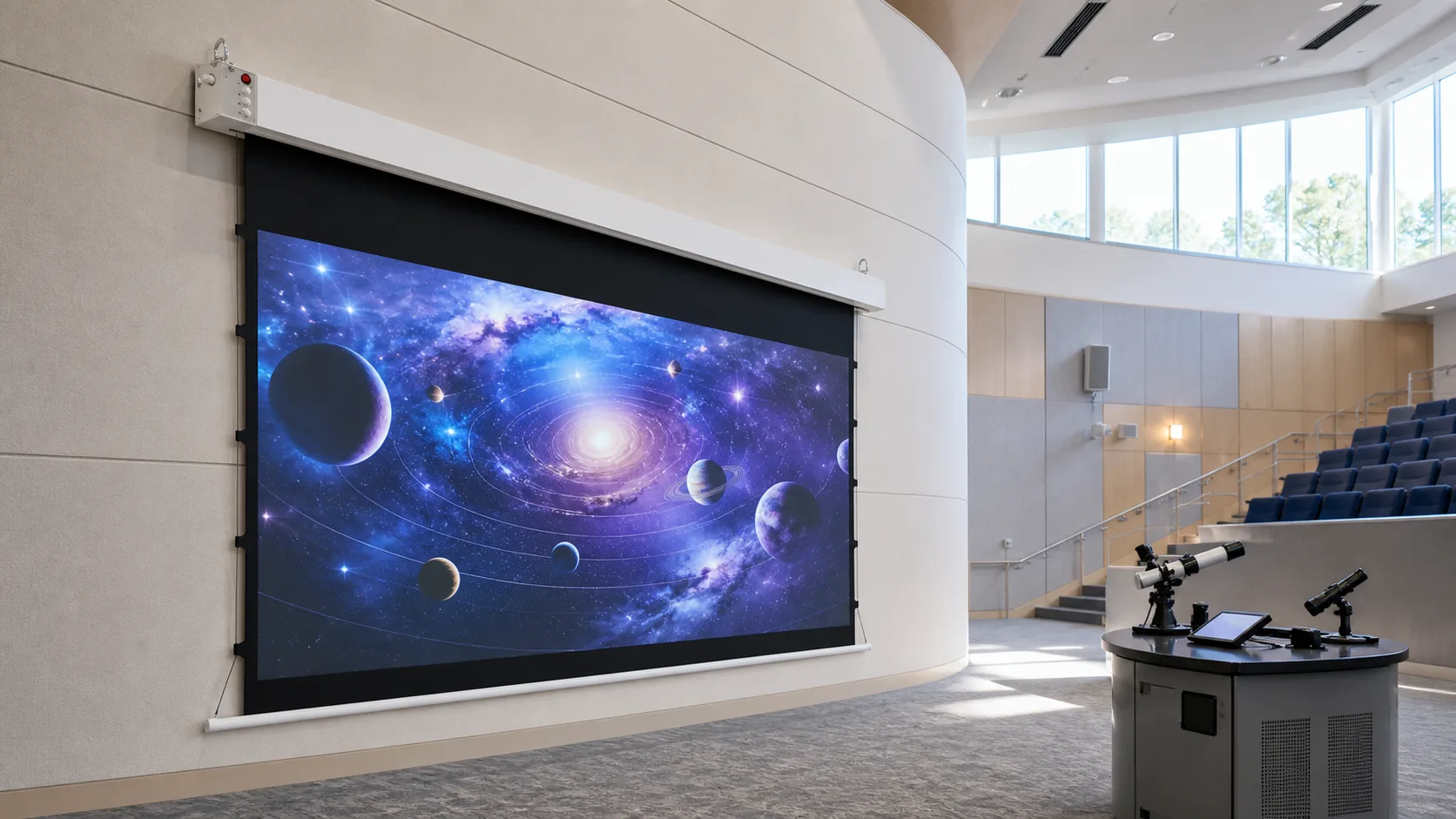

Best-fit Application Scenarios
Review the environments where this screen configuration is most relevant, then open the application page for project-specific planning guidance.
Features & Benefits

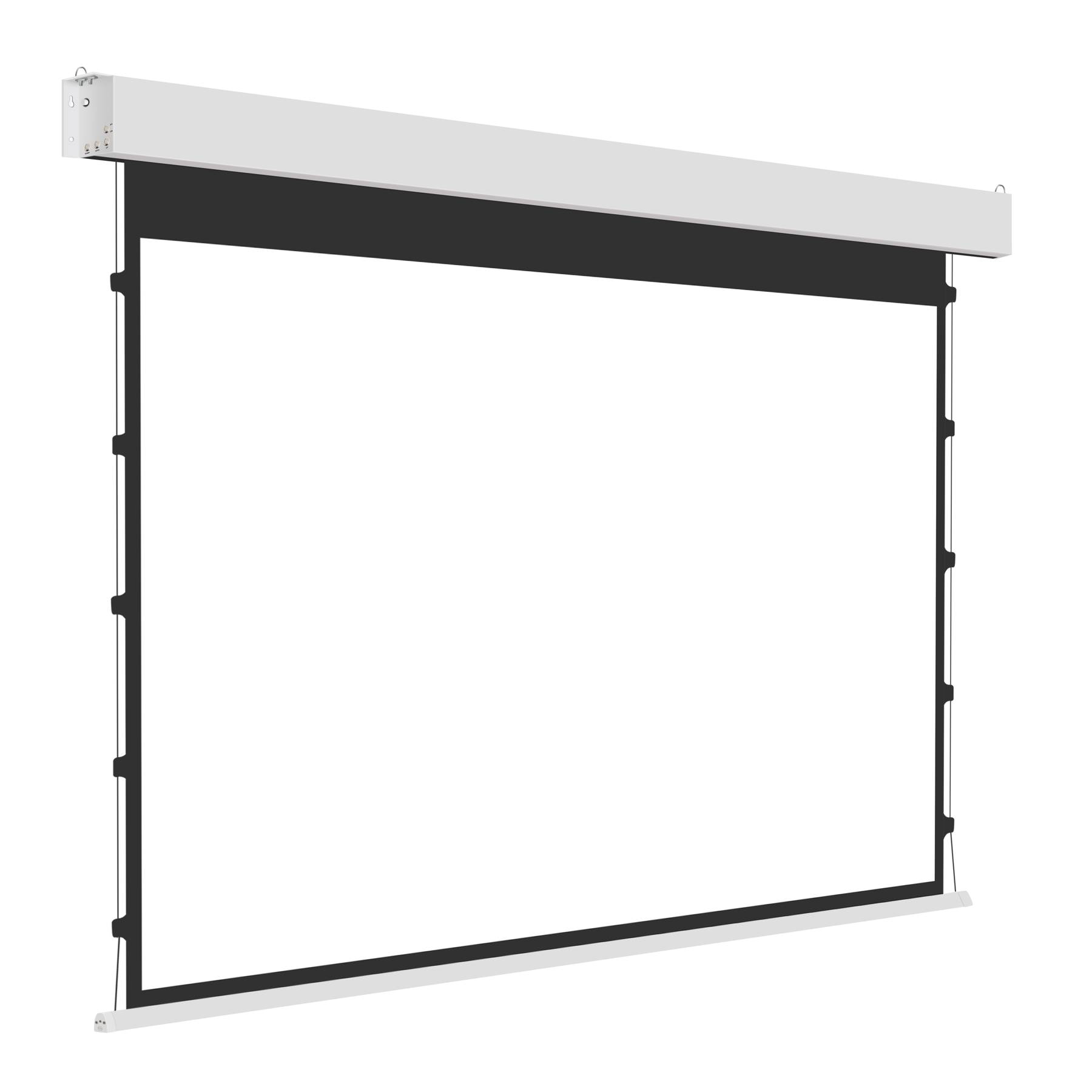

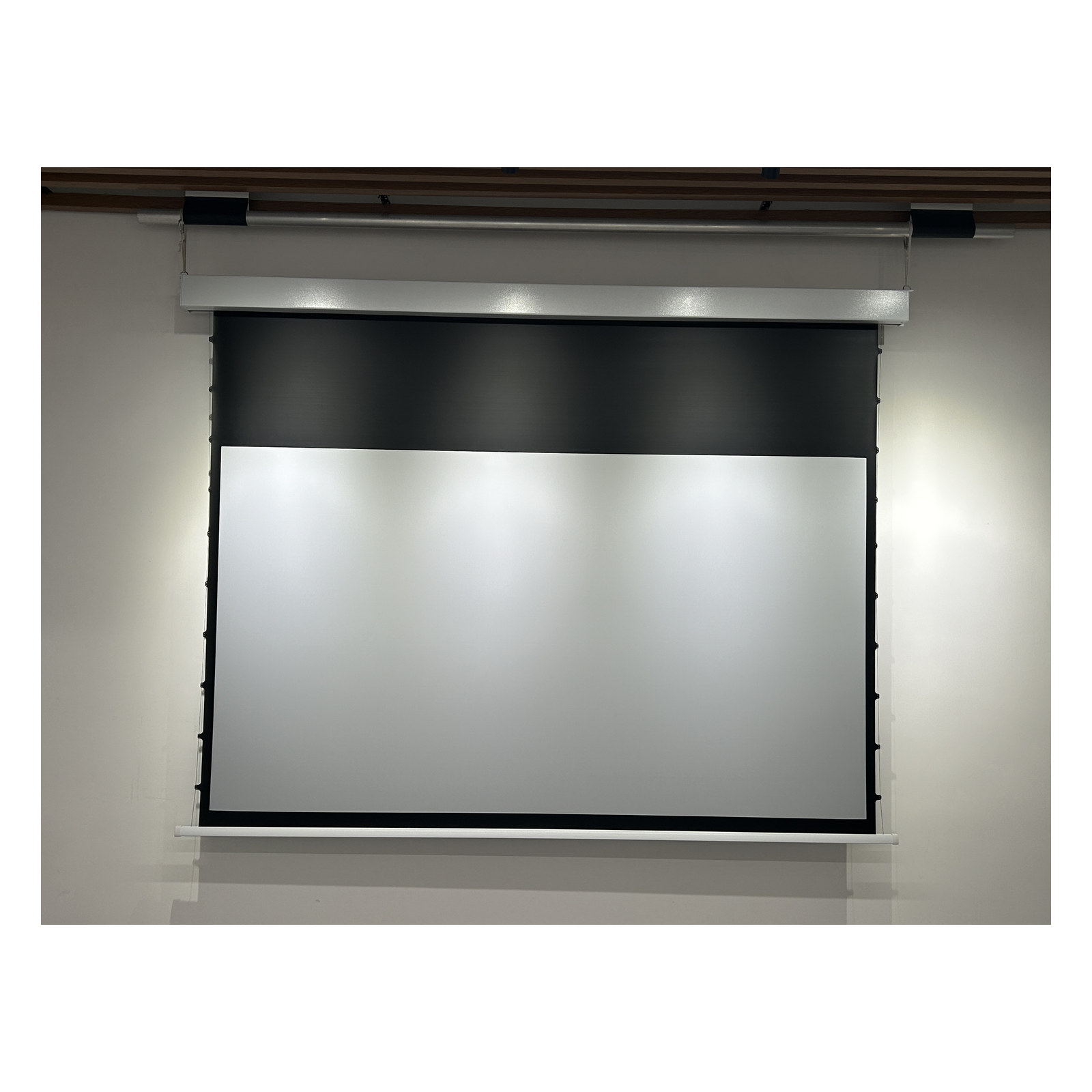

Tab-Tensioned Surface
Side tension cables and tabs help support the projection surface across the available fixed-installation sizes.
Square Housing Profile
The supplied front and side views show a clean square housing for fixed indoor projects.
Wall or Ceiling Installation
Integrated mounting holes and lifting rings support wall-mounted or ceiling-suspended installation planning.
Remote & Local Operation
The product record lists remote operation, while the supplied end-cap view shows local up, stop and down controls.
Technical Specifications
| Product type | Square low-voltage tab-tension electric projection screen |
|---|---|
| Available sizes | 72, 84, 92, 100, 110, 120, 135 and 150 inches |
| Aspect ratios | 1:1, 4:3, 16:9 and 16:10 |
| Screen materials | FWB PVC Matte White, FGB PVC Matte Grey, FGG Silver Grey, PTB Grey Photon PET and PTC White Photon PET |
| Portability | Not portable |
| Installation | Fixed wall-mounted or ceiling-suspended installation |
| Environment | Indoor use |
| Motor | Tubular motor |
| Black borders | Top: 40 or 450 mm; sides: 30 mm; bottom: 40 mm |
| Power connection | Voltage and plug supplied for the destination market |
Choose a Material for This Screen
Material image unavailablePVC Matte White (FWB)
Available for this screen. Confirm the selected surface when requesting a quotation.
Material image unavailablePVC Matte Grey (FGB)
Available for this screen. Confirm the selected surface when requesting a quotation.
Material image unavailableSilver Grey (FGG)
Available for this screen. Confirm the selected surface when requesting a quotation.
Material image unavailableGrey Photon PET (PTB)
Available for this screen. Confirm the selected surface when requesting a quotation.
Material image unavailableWhite Photon PET (PTC)
Available for this screen. Confirm the selected surface when requesting a quotation.
Product Details

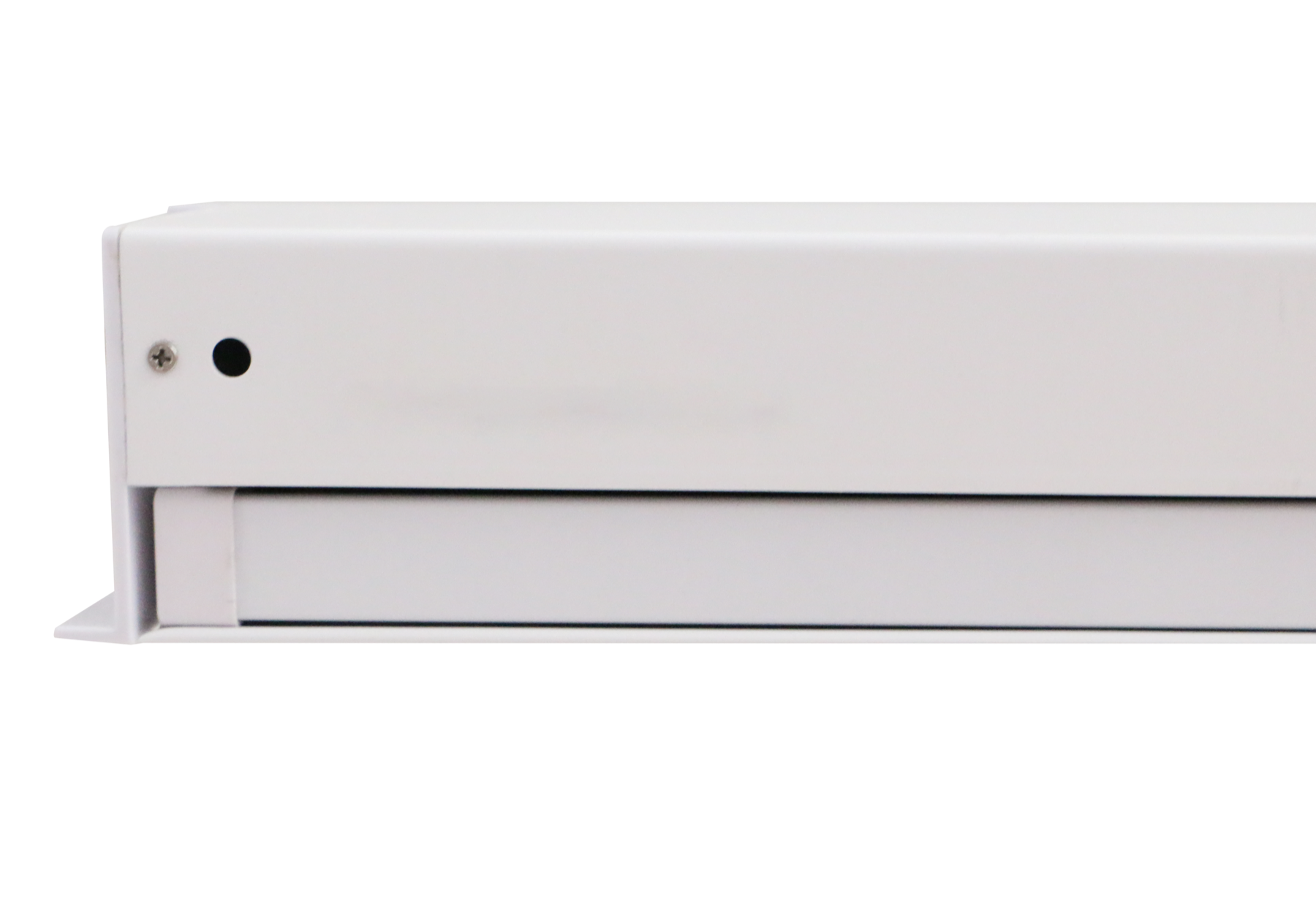

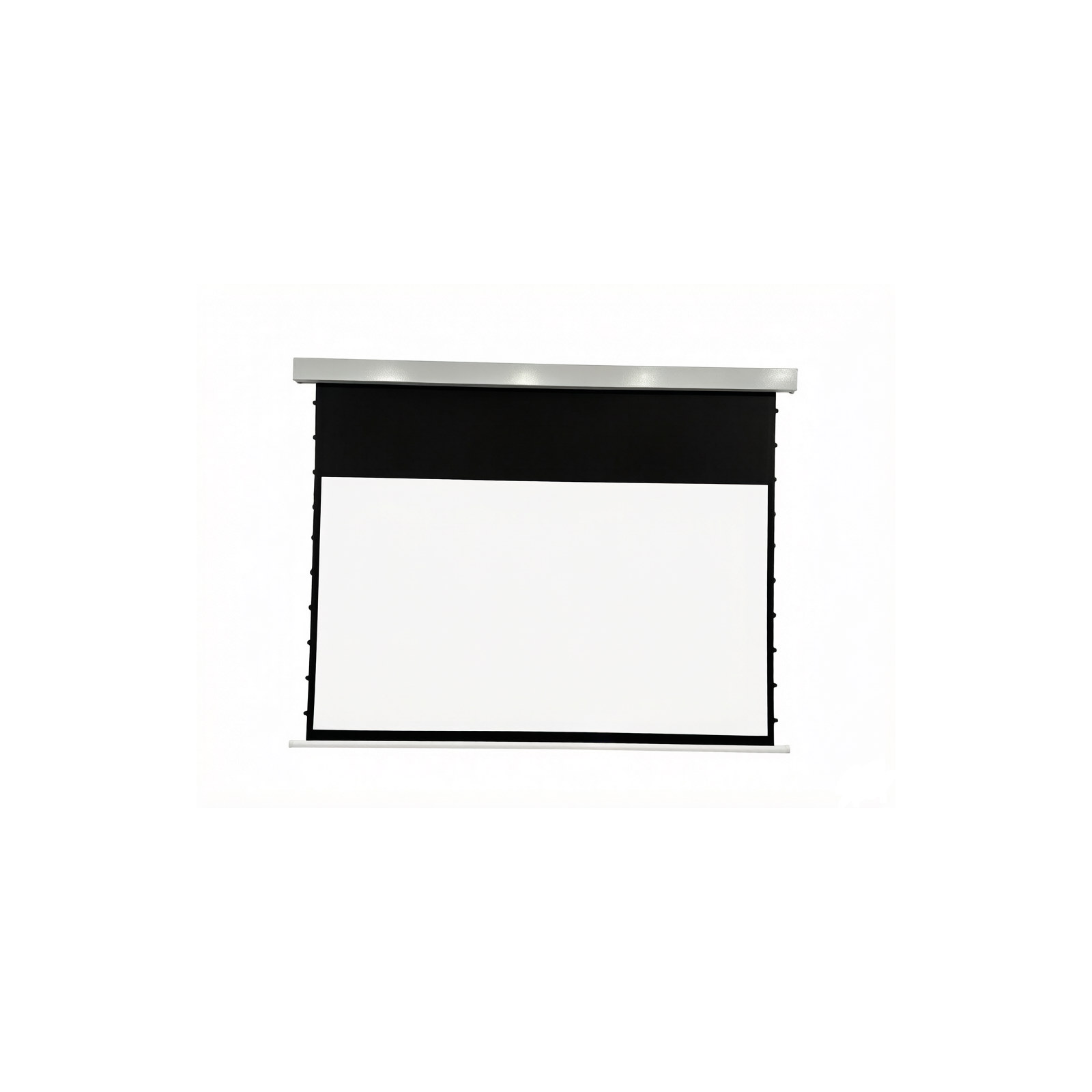

Front Product View

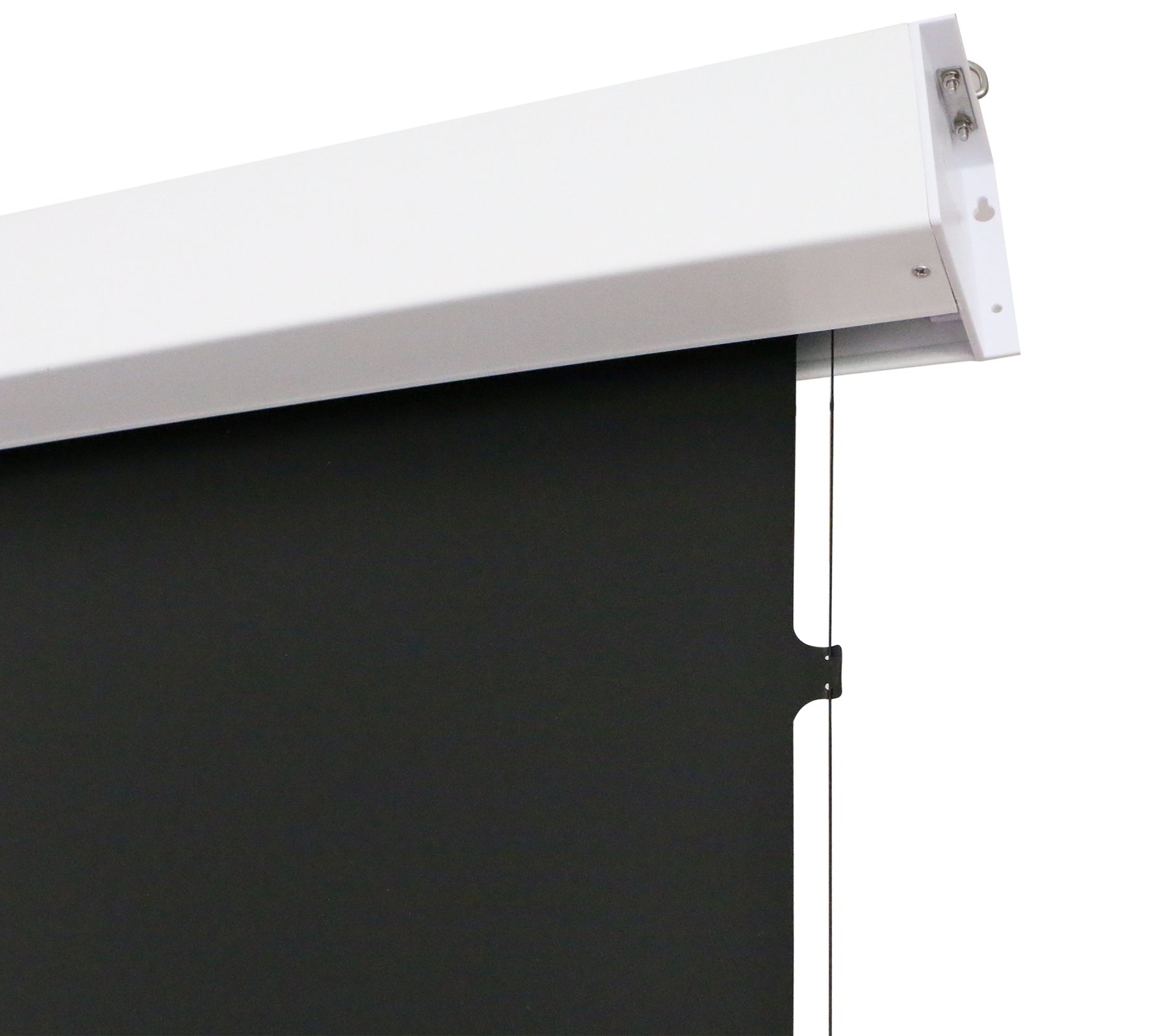

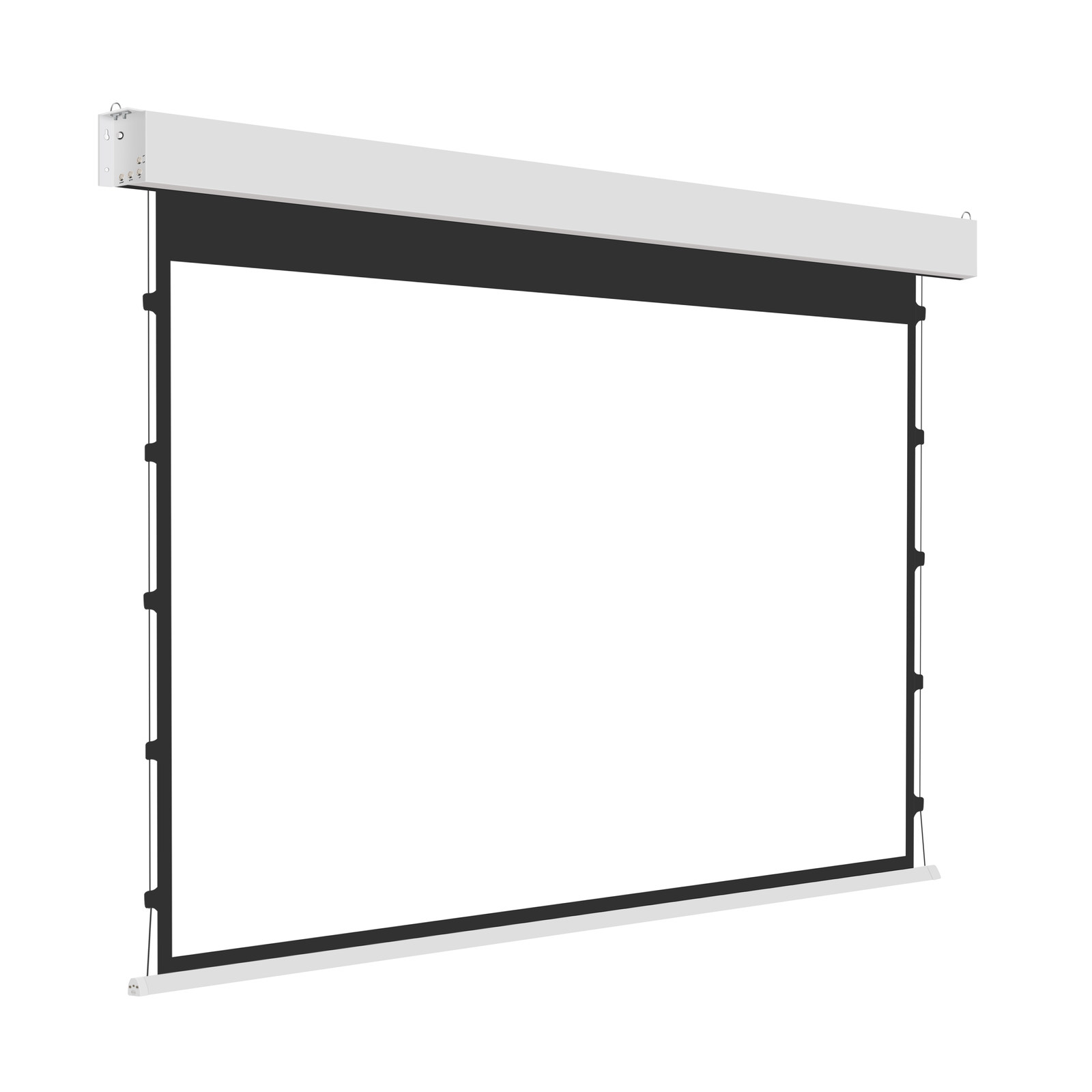

Left-Side Housing View

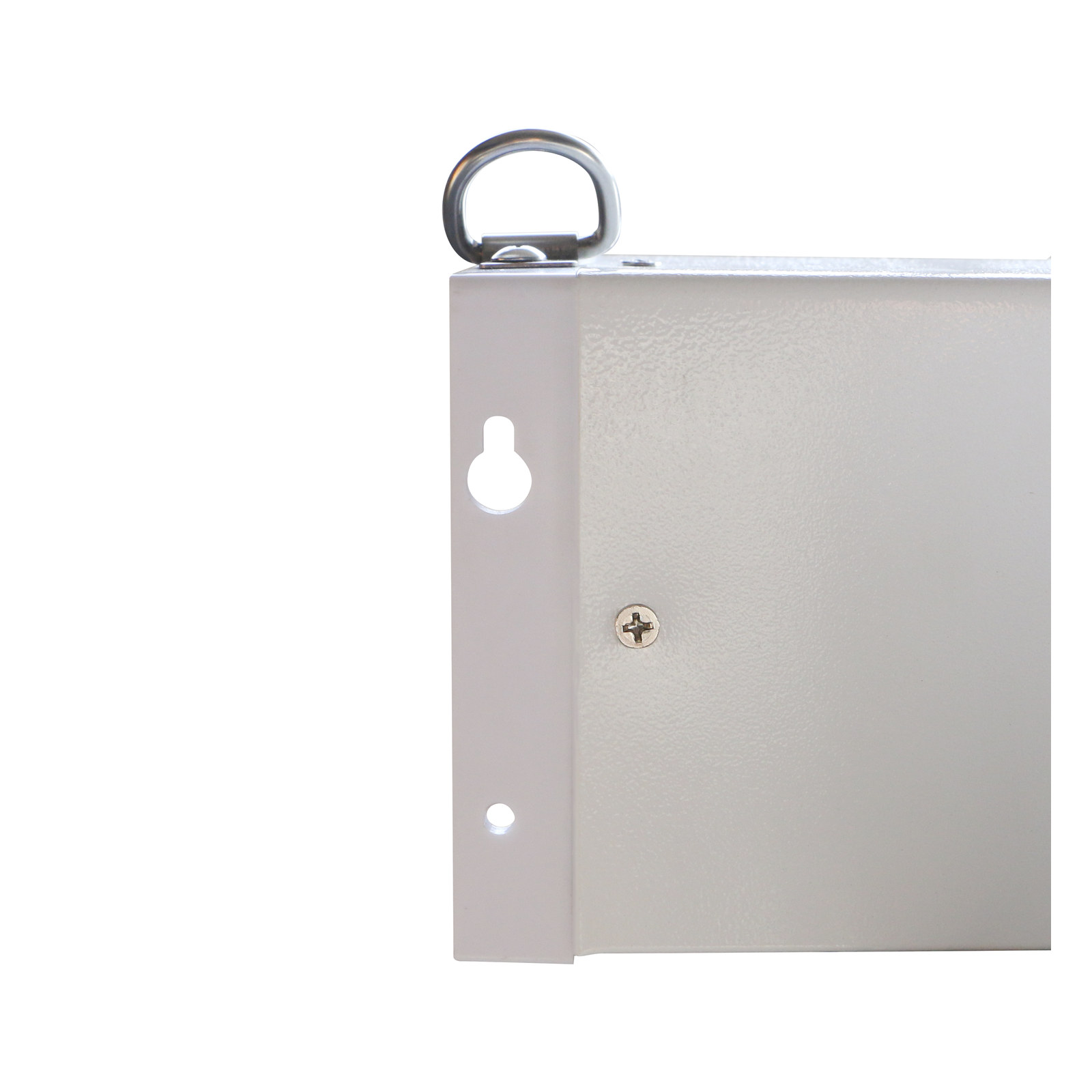

Mounting Hole Detail

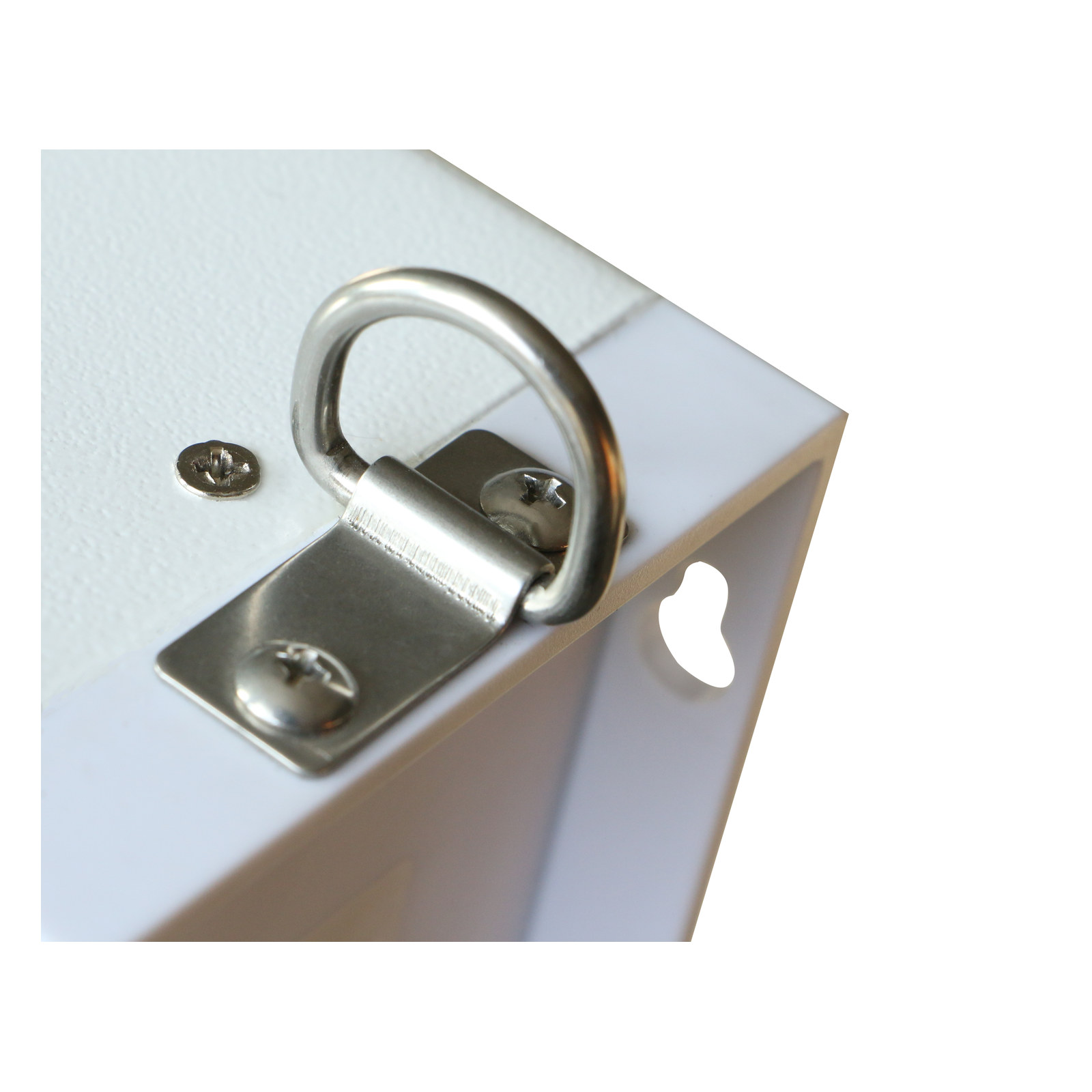

Ceiling Lifting Ring

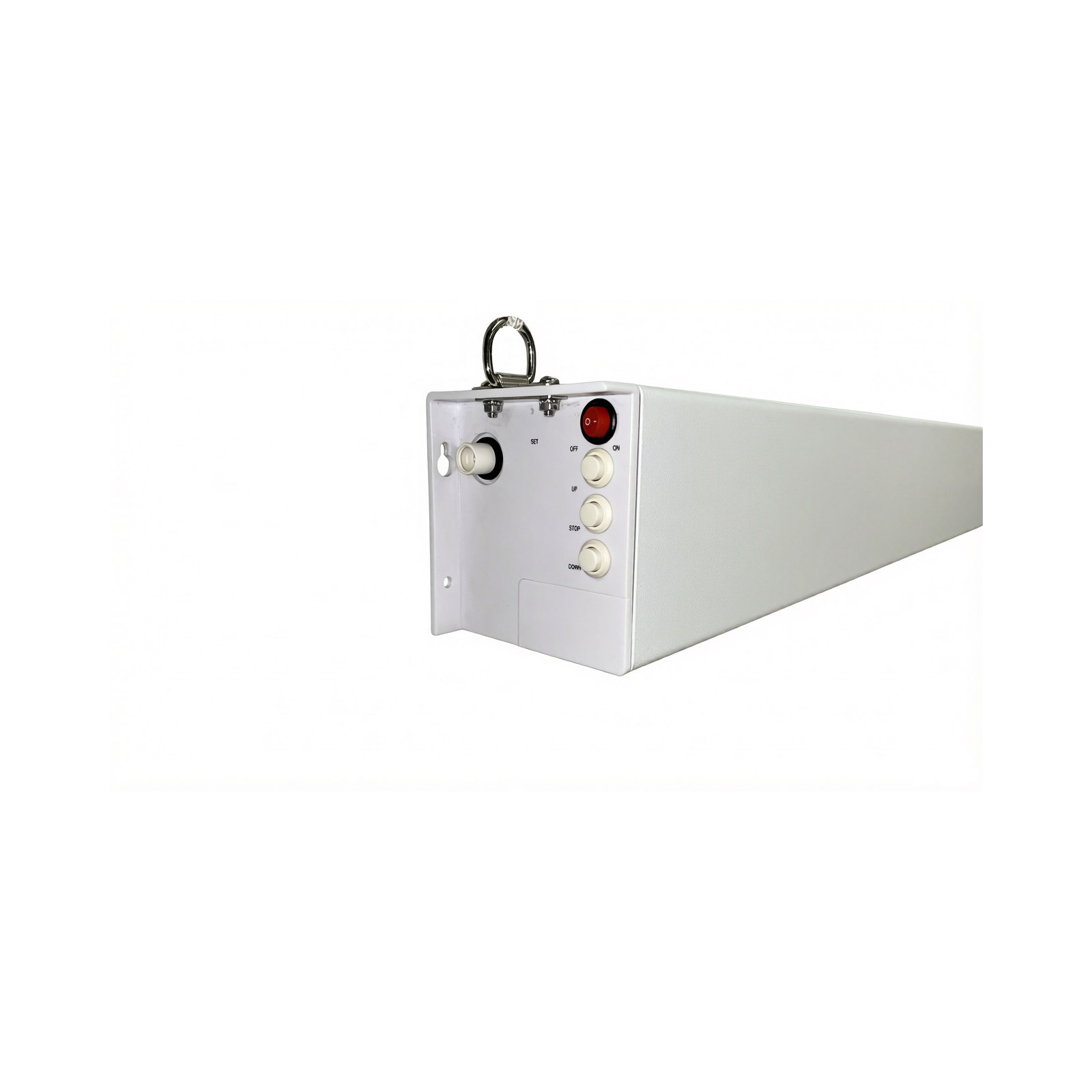

Local Control Panel
Product Highlights & Material Comparison
Explore the screen configuration and compare the available projection surfaces for your project.
Product Highlights
- Square housing for a clean, defined profile.
- Flat housing surfaces.
- Side tabs and tension cables support the projection surface.
- Replaceable battery support is listed for this model; confirm the supplied power configuration when ordering.
- Operate the screen with a wireless remote or external wired control box.
Compare Screen Materials
Compare the listed gain, viewing angle and surface features. Ask us to confirm the material for your projector and room before ordering.
| Screen material | Gain | Viewing angle | 4K | High contrast | ALR | Washable |
|---|---|---|---|---|---|---|
| PVC Front Projection Matte White | 1.05 | 165° | Yes | No | No | Yes |
| PVC Front Projection Matte Grey | 0.85 | 165° | Yes | Yes | Yes | Yes |
| PVC Front Projection Silver Grey | 1.5 | 120° | Yes | Yes | Yes | Yes |
| Grey Photon PET | 0.9 | 160° | Yes | Yes | Yes | Yes |
| White Photon PET | 1.8 | 178° | Yes | Yes | No | Yes |
ALR means ambient light rejection. Values apply to the listed surface and model configuration. Confirm projector compatibility and cleaning instructions with MGF.
Sizes, installation & controls
| Product Category | Tab-tension Projection Screens |
|---|---|
| Size Range | 72″, 84″, 92″, 100″, 110″, 120″, 135″, 150″ |
| Aspect Ratios | 1:1, 4:3, 16:9, 16:10 |
| Screen Surfaces | PVC Front Projection Matte White, PVC Front Projection Matte Grey, PVC Front Projection Silver Grey, Grey Photon PET, White Photon PET |
| Installation | Ceiling or wall mounted |
| Control Method | Wireless remote and external wired control box |
| Default Material | PVC Soft White Fabric |
| Power Support | Tubular motor |
Installation & Control
Installation
- Fixed indoor installation
- Wall-mounted or ceiling-suspended
- Mounting holes and lifting rings shown in the supplied details
Control Methods
- Remote operation
- Local up, stop and down controls
- Voltage and plug supplied for the destination market
Frequently Asked Questions
Which sizes and aspect ratios are available?
The supplied product table lists 72 to 150-inch sizes with 1:1, 4:3, 16:9 and 16:10 aspect-ratio options.
Can this screen be installed on a wall or ceiling?
Yes. The product record specifies fixed indoor wall-mounted or ceiling-suspended installation.
Which motor is listed for this screen?
The supplied product table lists a tubular motor. Confirm the destination-market electrical configuration when requesting a quotation.
Which screen surfaces are shown for this product?
The supplied material set includes FWB PVC Matte White, FGB PVC Matte Grey, FGG Silver Grey, PTB Grey Photon PET and PTC White Photon PET.
