MGF PRODUCT SERIES
ST Series Short Throw Projector Mount
Steel wall mount for short-throw projector installation with sliding position and multi-axis alignment adjustment.
- Steel wall mount for short-throw projector installation.
- Sliding projector mounting module along the pole.
- Multi-axis projector alignment adjustment.
1 / 4
FEATURES & BENEFITS
Built Around the Supplied Product Configuration
Steel wall mount for short-throw projector installation.
Sliding projector mounting module along the pole.
Multi-axis projector alignment adjustment.
TECHNICAL SPECIFICATIONS
Technical Specifications
| Available models | ST600, ST800, ST1000, ST1200, ST1500 |
|---|---|
| Fixed pole length | 545 mm, 745 mm, 945 mm, 1145 mm, 1445 mm by model |
| Pole material | Steel |
| Mounting-hole range | 95–350 mm |
| Adjustment | Pitch ±22.5°; roll ±15°; yaw ±25° |
| Maximum load | 25 kg |
PRODUCT DETAILS
Product Details

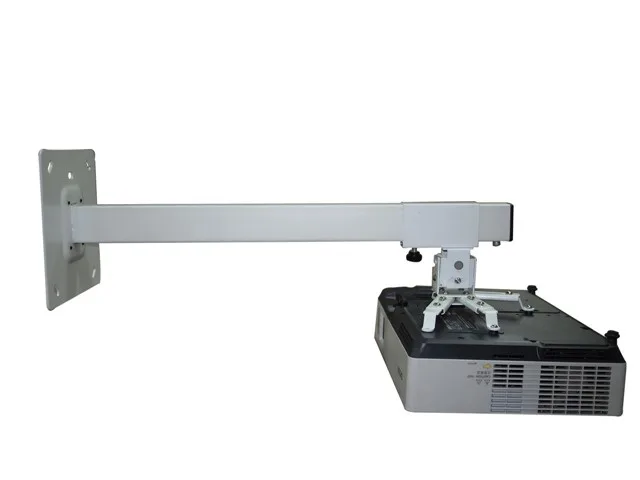

Front Product View

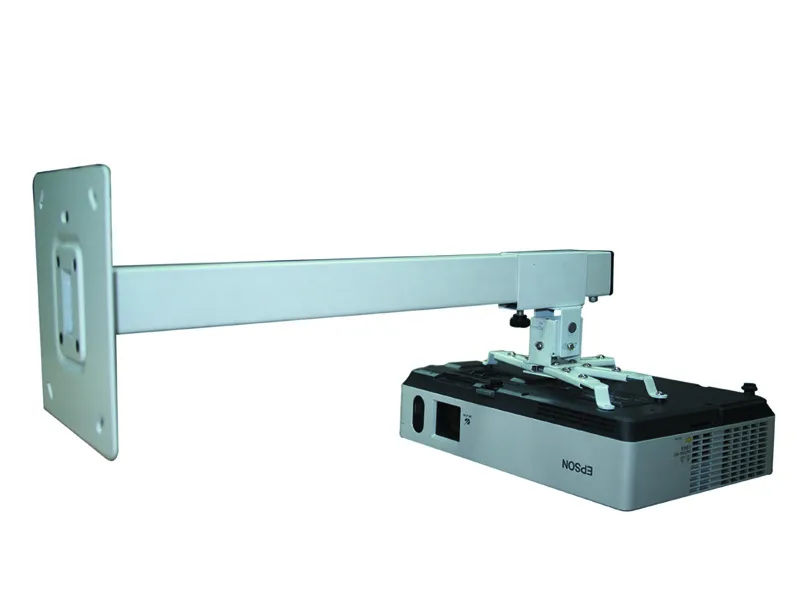

Installed Side View
Projector Mounting View

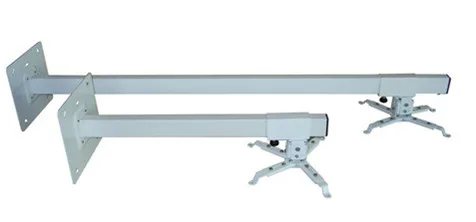

Model Length Comparison
INSTALLATION & CONTROL
Installation & Control
Installation
Confirm the installation method for the selected model.
Operation / Control
Manual adjustment as applicable.
Discuss Your Project Requirements
Send the model, installation conditions, projector information, quantity and destination for configuration review.
