Projection Screen Size and Aspect Ratio Guide for AV Projects

AV engineer measuring a projection screen for size and aspect ratio planning

The correct projection screen size starts with the content and room—not a diagonal number from a catalog. First choose the native aspect ratio for the main content, then calculate the visible image width and height. Check viewing distance, sightlines, projector throw and brightness, ceiling height, speaker or furniture conflicts, and the screen’s overall housing or frame dimensions.

For most video and home-cinema applications, 16:9 is the common starting point. Many business and education systems use 16:10, while 4:3 remains relevant for legacy content and selected installations. A custom project may require another format, but the projector, source and screen should be planned as one system.

In This Guide

    Screen Size Terms You Must Keep Separate

    Quotations and drawings can use several different dimensions. Confirm which one is being discussed.

    • Diagonal size: corner-to-corner measurement of the visible image area.
    • Viewing width: horizontal dimension of the projected image.
    • Viewing height: vertical dimension of the projected image.
    • Aspect ratio: relationship between viewing width and viewing height.
    • Overall screen size: includes borders, frame, housing, brackets or other structure.
    • Black drop: extra black material above the viewing area on selected retractable screens.
    • Ceiling opening: required cutout for a recessed housing; it is not the same as viewing width.

    A “120-inch screen” does not tell the installer the housing length, bracket spacing or ceiling opening. Always approve a dimensional drawing before construction or production.

    Common Projection Screen Aspect Ratios

    Aspect ratioTypical contentCommon applicationsMain caution
    16:9HD/UHD video, streaming, general video conferencingHome cinema, commercial display, meeting roomsPresentation content may use less vertical area
    16:10Widescreen computer presentationsCorporate, education, trainingConfirm projector and source output
    4:3Legacy presentations and video systemsExisting education or institutional systemsLess suitable for modern widescreen video
    1:1Flexible legacy presentation areaSelected manual/electric installationsUsually leaves unused area for widescreen content
    2.35:1 / 2.40:1Cinemascope filmDedicated cinemaRequires careful projector, masking and content planning

    MGF’s product information lists common 16:9, 16:10, 4:3 and selected 1:1 configurations across different screen families. Availability depends on product type and size; confirm the current model specification before quotation.

    Compare formats at the same image width

    For a hypothetical visible width of 240 cm, 16:9 gives a height of 240 × 9 ÷ 16 = 135 cm, while 16:10 gives 240 × 10 ÷ 16 = 150 cm. These are calculated image dimensions, not MGF product dimensions. They exclude frame, housing, borders and installation clearances.

    Review the projector and typical source formats as well as the outline. Confirm how different content shapes will be displayed, then check the selected product's approved drawing before committing to an opening or mounting position.

    How to Calculate Screen Width and Height

    For a screen with diagonal D, width W and height H:

    W = D × aspect-width / √(aspect-width² + aspect-height²)
    H = D × aspect-height / √(aspect-width² + aspect-height²)

    Approximate visible dimensions for common 16:9 screens are:

    DiagonalViewing widthViewing height
    84 in73.2 in / 1.86 m41.2 in / 1.05 m
    92 in80.2 in / 2.04 m45.1 in / 1.15 m
    100 in87.2 in / 2.21 m49.0 in / 1.25 m
    120 in104.6 in / 2.66 m58.8 in / 1.49 m
    150 in130.7 in / 3.32 m73.5 in / 1.87 m

    These are mathematical viewing-area approximations, not product overall dimensions. Borders, tensioning tabs, housings and brackets add to the installed size.

    Compare 16:9 and 16:10 Image Dimensions

    A screen's diagonal does not fully describe its shape. At the same diagonal, a 16:10 image is taller and slightly narrower than a 16:9 image. Compare the visible width and height against the content format, projector and available wall space.

    Visible diagonalAspect ratioApproximate image widthApproximate image height
    100 in16:987.2 in / 2214 mm49.0 in / 1245 mm
    100 in16:1084.8 in / 2154 mm53.0 in / 1346 mm
    120 in16:9104.6 in / 2657 mm58.8 in / 1494 mm
    120 in16:10101.8 in / 2585 mm63.6 in / 1615 mm
    135 in16:9117.7 in / 2989 mm66.2 in / 1681 mm
    135 in16:10114.5 in / 2908 mm71.5 in / 1817 mm
    150 in16:9130.7 in / 3321 mm73.5 in / 1868 mm
    150 in16:10127.2 in / 3231 mm79.5 in / 2019 mm

    Inch values are rounded to one decimal place and millimetre values to the nearest millimetre from the unrounded calculation. These are theoretical image dimensions, not a list of available MGF product sizes. Confirm the actual visible area and complete installed dimensions for the selected model.

    A Seven-Step Screen-Sizing Process

    Step 1: Identify the Primary Content

    List what users will display most often:

    • films and streaming video;
    • presentations and spreadsheets;
    • video conferencing;
    • classroom software;
    • digital signage or branded content;
    • mixed sources.

    Select the aspect ratio that minimizes routine unused image area or cropping. Do not choose a screen ratio only because a particular size is in stock.

    Step 2: Confirm Projector Image Format and Throw

    Record the projector model, native aspect ratio, lens or throw ratio, installation position and planned resolution. The throw ratio determines the relationship between image width and projector distance:

    Throw ratio = throw distance ÷ image width

    A wider image generally requires either a longer throw distance or a lens capable of the required ratio. Ultra-short-throw projectors have stricter geometry and surface requirements; use a screen material and structure specifically evaluated for that projector type.

    Lens shift, zoom and digital correction should not be treated as unlimited solutions. Confirm the projector can create the intended image at the actual mounting location.

    Step 3: Check Viewing Distance and Content Detail

    The farthest viewer must be able to read the smallest important content, while the nearest viewer should remain comfortable. A cinema audience and a spreadsheet audience do not have the same sizing requirement.

    For business and education rooms, test the actual slide template, spreadsheet, captions or user interface. Content legibility can require a larger image than video immersion alone suggests. Industry guidelines and display-image-height methods can be useful, but they should be applied to the specific content and room rather than used as a single universal ratio.

    Use the actual training spreadsheet

    Test the file, normal application scaling and smallest table cells that trainees need to read. Check the farthest and side seats with the usual room lighting. Record the file version, display layout, image dimensions and checked seats together. If the software adds menus, participant windows or toolbars, repeat the reading task in that layout instead of relying on a simplified full-screen slide.

    Step 4: Protect Sightlines

    Draw the seated eye positions, front-row location and potential obstructions. Check:

    • the bottom of the image above tables, lecterns and heads;
    • the top of the image below the ceiling and any housing;
    • viewing angles from side seats;
    • projector beam clearance;
    • speaker, camera, lighting and ventilation positions.

    Increasing diagonal size increases both width and height. In a low room, screen height can become the limit before wall width does.

    Step 5: Match Image Size to Projector Light Output

    As image area increases, the available light is spread over a larger surface. Room light, screen gain, projector output, lens position, calibration, image mode and aging all affect perceived brightness.

    Do not select a large screen using the projector’s headline lumen value alone. Have the AV designer calculate expected on-screen brightness for the real image size and operating conditions. A screen material cannot compensate for every projector or ambient-light limitation.

    Step 6: Choose the Screen Format and Material

    The room and workflow determine whether the image should use:

    • a fixed-frame screen for a permanent, tensioned surface;
    • an electric roll-down screen for frequent retractable use;
    • a tab-tensioned electric screen where flatter retractable performance is important;
    • a manual screen for simple, occasional use;
    • a portable screen for temporary presentation or events.

    Browse the MGF projection screen categories to compare formats. Material selection should then consider projector type, ambient light, viewing angle, color behavior, acoustic needs and whether the surface is compatible with the selected mechanism.

    Step 7: Verify Overall Dimensions and Installation

    Image Size Is Not Installation Size

    Once the visible image is chosen, request the approved drawing for the exact model and configuration. Coordinate the following dimensions before millwork, ceiling closure or projector mounting.

    Dimension or requirementWhat it determines
    Visible image width and heightThe area intended for projected content
    Borders and top dropThe relationship between the image, roller or frame, and final viewing height
    Overall housing or frame dimensionsThe complete product space, including relevant end caps and fittings
    Bracket positions and adjustmentHow the selected product connects to the supporting structure
    Ceiling opening or recessThe construction opening required for a recessed model; it is not the same as image size or housing cross-section
    Power and control entryCable routes and connection access for the selected electrical configuration
    Service clearanceSpace needed to access the parts identified in the product's service instructions
    Packaged dimensions and delivery routeWhether the product can reach the installation location

    The installation team should also confirm the suitability of the supporting wall, ceiling or structure. A calculated image size does not establish mounting capacity or installation fit.

    Read the ICE image and housing drawing key

    The ICE In-Ceiling Electric Screen drawing separates image width and height (W/H), black borders (B1/B2/B3), casing length (L) and overall product length (OL). The end view identifies casing width M and product cross-section CD/CH. These describe different boundaries; an image width cannot be used as a ceiling cutout or fixing dimension.

    MGF ICE drawing key showing image width and height, black borders, casing length and overall product dimensions
    ICE product drawing key. Open the image to enlarge. This reference image has no printed revision number; request the current drawing for the selected housing, size and material.

    For installation approval, request the mounting-point drawing, ceiling-opening dimensions, required top drop and service access. For a permanent wall installation, compare the fixed-frame format and its external frame and fixing dimensions instead.

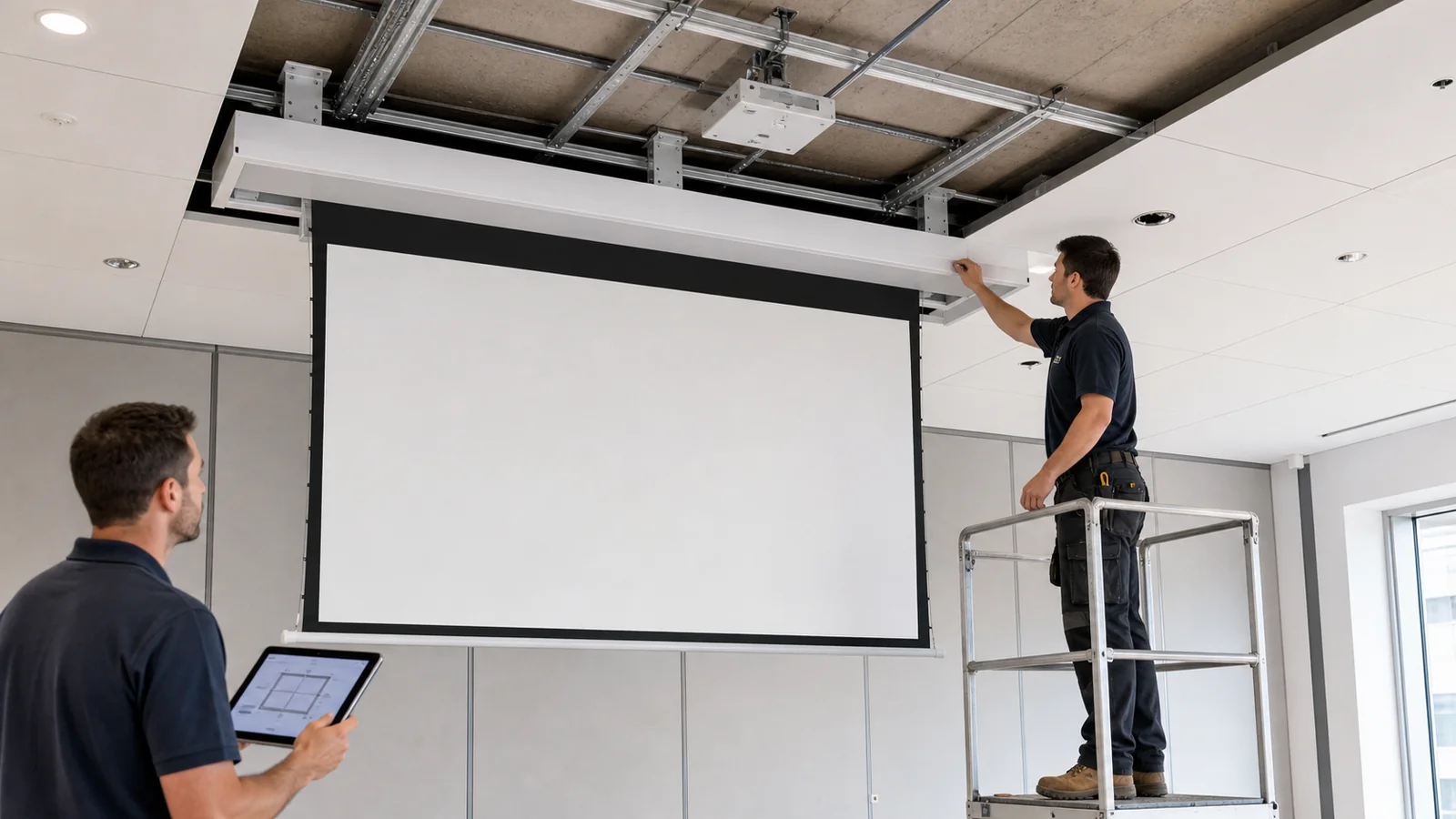

    Installer checking recessed projection screen dimensions and ceiling clearance

    Choosing Aspect Ratio by Application

    Conference rooms

    Start with the organization’s actual laptops, conferencing platform and presentation templates. 16:9 aligns well with modern video, while 16:10 can provide additional vertical presentation space when supported by the projector and sources. Review the conference room application guide and test readable content at the farthest seat.

    Education and training

    Legibility and sightlines are critical. Consider the last row, writing surfaces, teacher position and whether the screen must retract to expose a board. The education and classroom application can be paired with manual or electric formats depending on operating frequency and room standard.

    Home theater

    16:9 is a common versatile format for television and streaming content. Dedicated movie rooms may consider a wider cinema format, but projector lens capability, masking, subtitle position and mixed-content use must be planned. See MGF’s home theater application for relevant screen types.

    Commercial display and events

    Check source content, audience distance, venue lighting, rigging, transport and setup time. A larger image may improve visibility, but projector brightness and the physical delivery route can become constraints. See the commercial display application.

    Example: Sizing a Meeting-Room Screen

    Assume a project team is considering a 120-inch 16:9 screen. The approximate visible area is 104.6 × 58.8 inches (2.66 × 1.49 m).

    Before approving it, the integrator should still verify:

    1. whether 1.49 m of image height fits between the ceiling and required bottom sightline;
    2. whether the projector can create a 2.66 m-wide image from the available throw position;
    3. whether the farthest viewer can read the smallest critical content;
    4. whether brightness is sufficient at that image area;
    5. whether the screen housing, brackets and service clearance fit the ceiling or wall;
    6. whether 16:9 matches the room’s conferencing and presentation sources.

    If any of these checks fail, changing the diagonal alone may not solve the system problem. The projector position, room layout, screen format or content design may also need adjustment.

    View the filled 120-inch room planning example

    The downloadable example uses a hypothetical 6 × 8 m room with a 3 m finished ceiling, a 1 m image-bottom target, seats 3–6 m from the screen and a lens position 4 m from the image plane. Its plan and elevation distinguish assumed room inputs from calculated image geometry. The projector, screen model, housing and fixing dimensions remain to be selected and confirmed.

    Illustrative plan and elevation for a hypothetical 6 by 8 metre meeting room comparing a 120-inch image with the room and seating
    Illustrative planning geometry, not an installation drawing or a completed project. Open to enlarge; the filled Word example includes the 16:9 and 16:10 comparison.

    Common Sizing Mistakes

    • Selecting diagonal size before choosing aspect ratio;
    • confusing visible width with housing or frame width;
    • ignoring the extra space required by tensioning tabs or brackets;
    • planning projector throw from overall screen width instead of image width;
    • placing the bottom of the image behind furniture or audience heads;
    • choosing an oversized image without a brightness calculation;
    • assuming all “ALR” materials work with all projector throw types;
    • finalizing the ceiling before receiving the screen drawing;
    • using a generated room image as evidence of a completed installation.

    Information to Send for a Size Recommendation

    Provide:

    • room length, width and finished ceiling height;
    • seating plan and farthest viewing distance;
    • primary content and preferred aspect ratio;
    • projector model, lens and mounting position;
    • ambient-light conditions;
    • screen format and installation method;
    • required material or acoustic needs;
    • wall/ceiling restrictions;
    • quantity and destination market.

    Example: A 120-Inch Screen in Two Aspect Ratios

    For a 120-inch visible diagonal, the two formats produce different image dimensions:

    • 16:9: approximately 2,657 mm wide × 1,494 mm high.
    • 16:10: approximately 2,585 mm wide × 1,615 mm high.

    The 16:10 image is approximately 121 mm taller and 72 mm narrower. This is a geometric comparison at the same diagonal, not evidence that one format will improve readability in every room.

    For 16:9:

    Width = 120 × 16 ÷ √(16² + 9²) ≈ 104.6 in

    Height = 120 × 9 ÷ √(16² + 9²) ≈ 58.8 in

    For 16:10:

    Width = 120 × 16 ÷ √(16² + 10²) ≈ 101.8 in

    Height = 120 × 10 ÷ √(16² + 10²) ≈ 63.6 in

    Choose the format with the source content and projector in mind. A 16:9 image shown without cropping on a 16:10 surface may leave part of the surface unused; it does not automatically become a taller image with more content.

    After choosing the image format, use the projector and screen pairing guide to check the projector's lens range and installation position.

    FAQ

    Is a 16:9 or 16:10 projection screen better?

    Choose 16:9 when widescreen video is the primary content and the projector/source uses that format. Choose 16:10 when business or education presentation content benefits from added vertical image area and the AV system supports it.

    Does screen diagonal include the border or housing?

    Normally, advertised diagonal refers to the visible image area. Confirm this in the product drawing because overall frame or housing dimensions are larger.

    Can I use a 16:9 projector on a 16:10 screen?

    Yes, but some screen area may remain unused depending on image scaling and positioning. Decide whether the room regularly uses both formats and whether visible unused surface is acceptable.

    How large should a conference-room screen be?

    There is no single diagonal for every room. Base the decision on content legibility, farthest viewer, sightlines, ceiling height, projector throw and brightness. Test the actual presentation content when possible.

    Should I order the screen before finalizing the projector?

    The projector and screen should be designed together. Finalizing either one independently can create throw, brightness, geometry or material-compatibility problems.
