Training Room: A Concealed 135-inch Screen and Projector Lift for 12 Participants

A concealed screen and projector lift for presentations and flexible room use.

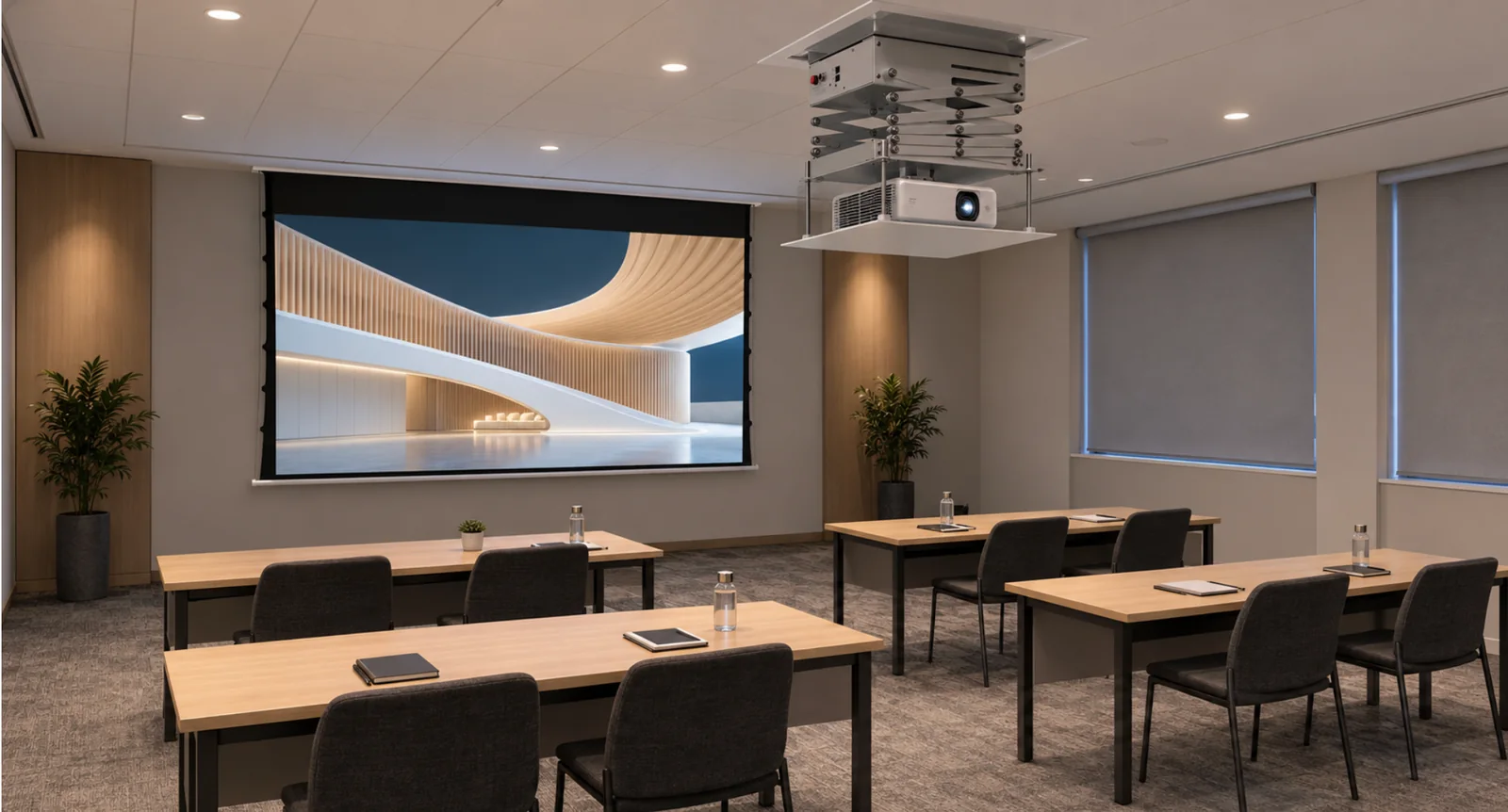

Training room with an in-ceiling screen and projector lift

Project Overview

This 12-person training room combines a 135-inch MGF ICT In-Ceiling Tab-Tension Electric Screen with an SX Series Projector Lift. The screen and projector deploy for presentations and retract between sessions, supporting demonstrations, discussion and client meetings in the same room.

12 people
Training room
135 in · 16:9
Screen format
Concealed
Screen and projector
ICT + SX
Screen and lift

Customer Challenges

Concealment adds coordination to the screen and projector selection.

  1. 01

    Support several room activities

    The customer needed a substantial image for training and review sessions, with the display put away for other activities.

  2. 02

    Conceal the screen and projector

    Both pieces of equipment needed to deploy for presentations and retract between sessions.

  3. 03

    Coordinate the complete installation

    The ceiling installation needed to accommodate the screen, lift, projector, wiring and access.

How the MGF Solution Works

01 / Image

A recessed 135-inch screen

The ICT screen combines a recessed housing and side tensioning for the training-room display.

02 / Ceiling

An SX projector lift

The lift lowers the projector into its operating position and retracts it for storage above the ceiling.

03 / Operation

A coordinated presentation setup

The screen and lift allow projection equipment to be deployed for presentations and put away for discussion and other room uses.

View project configuration and installation guidance
Project configuration

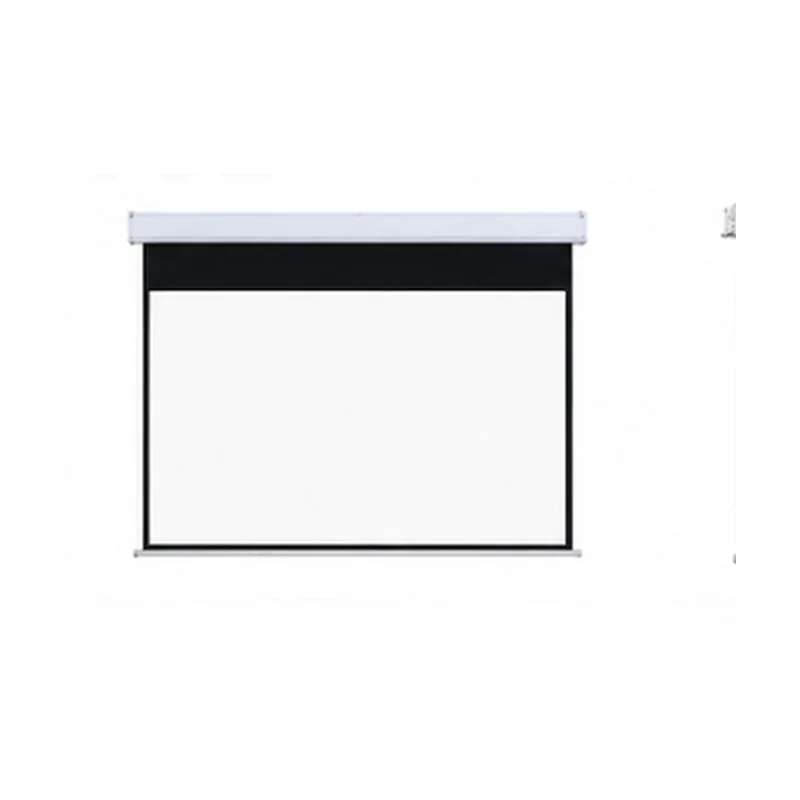

ScreenICT In-Ceiling Tab-Tension Electric Screen, 135-inch, 16:9.
SurfacePVC Soft White Fabric.
Projector supportSX Series Projector Lift.
Screen installationRecessed ceiling housing with side tensioning.
Audience12 participants.
Room activitiesTraining presentations, demonstrations, design reviews and group discussion.

For similar projects

Size the lift for the complete assembly

For a similar installation, check projector dimensions and weight, mounting accessories, stowed dimensions, cable movement, ventilation and service access against the selected SX model.

Confirm the usable ceiling space

Use a site survey and approved product drawings to coordinate the opening, structural support and complete stored assembly. A nominal void depth alone does not establish fit.

Specify each device’s controls

Confirm the screen, lift and projector interfaces separately. Agree deployment, projection, shutdown and storage procedures, including the projector’s cooling requirements.

SX lift planning guide · screen materials · conference-room solutions and the conference-room selection guide

Project Outcomes

How the screen configuration supports the room’s use.

  • A large-format training display

    The 135-inch screen provides a shared surface for training and review content.

  • Equipment concealed between sessions

    The screen retracts into its housing and the lift stores the projector above the ceiling.

  • Flexible use of the room

    The retractable equipment supports a change from presentations to demonstrations and group discussion.

Coordinate the Screen, Lift and Projector Separately

Two Devices, One Ceiling Plan

The 12-person training room uses a 135-inch, 16:9 ICT In-Ceiling Tab-Tension Screen in PVC Soft White Fabric and a separate SX Series Projector Lift. The screen provides the recessed viewing surface. The lift moves the projector between its operating position and storage above the ceiling. Their shared ceiling location calls for one coordinated review of housings, structural support, cable travel, ventilation and service access.

For a similar room, confirm the exact SX model and projector assembly against approved drawings. Specify the screen, lift and projector interfaces separately, including the projector cooling and shutdown sequence; a common ceiling does not establish one-button synchronized control.

Part of the system Role in the installation Information required for a similar project
ICT screen Provides the recessed, retractable viewing surface with side tension Selected size, material, housing drawing, screen position and control configuration
SX projector lift Supports movement of the projector between operating and stored positions Exact lift model, complete installed load, travel, stowed assembly and service access
Projector Produces the image on the deployed screen Projector and lens model, dimensions, installed weight, ventilation and shutdown requirements
Room control Defines how the separate devices are operated Supported interfaces for each device, required accessories and an agreed operating sequence

Using a screen and lift in the same room does not by itself establish one-button operation. Review each device's interface and the complete sequence before specifying combined control.

Review the ICT Screen · Review the SX Projector Lift

Plan Your Concealed Training-Room Display

Send the room and ceiling section, seating plan, required image size, projector and lens details, projector dimensions and complete installed weight. Include the proposed control system and the available maintenance route.

For a similar installation, agree the review points before the ceiling is closed:

Review pointWhat the project team should confirm
Stored assemblyThe screen housing, lift, projector, accessories and connections fit the coordinated drawings
DeploymentThe equipment can move through its full specified path without contact or cable strain
Image positionThe projector's operating position matches the screen and lens requirements
Operating sequenceDeployment, projection, shutdown and storage follow the requirements of all selected devices
MaintenanceRequired service points remain accessible after the room is finished

Projector cooling requirements and any control delays must come from the selected equipment documentation. They are not universal values for every screen-and-lift system.

Request a Screen and Lift Configuration Review

For preparation, use the SX projector lift planning guide.

FAQ

How much ceiling space does the lift need?

Use the selected lift and projector drawings to confirm the complete stowed assembly, mounting accessories, ventilation, connections and maintenance route. There is no single void depth that fits every configuration.

Does image height determine the ceiling opening?

No. Screen image position, housing dimensions, fixing points and the ceiling opening are separate requirements. Confirm them on the approved screen drawing.

Can the screen, lift and projector share one control?

That depends on their interfaces and supplied accessories. Confirm the selected equipment and operating sequence before specifying combined control.

What is needed for a similar screen-and-lift project?

Send the room and ceiling section, seating plan, image size, projector dimensions and installed weight, lens details and control requirements. Include structural support and service access.
