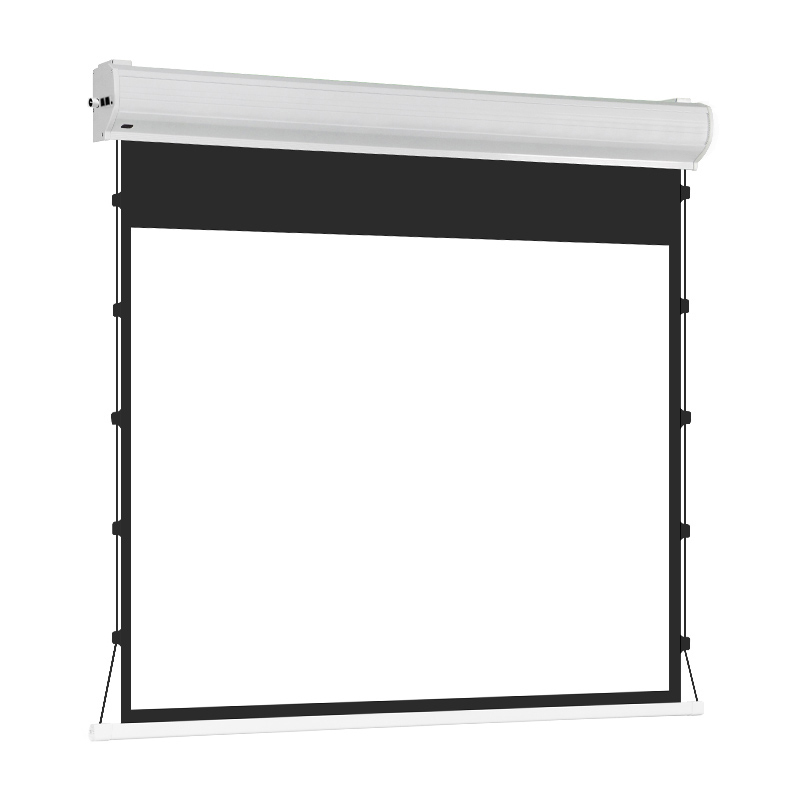

Premium Aluminum Casing Tab-Tension Electric Projection Screen
The Premium Aluminum Casing Tab-Tension Electric Projection Screen uses a white powder-coated aluminum alloy casing, quiet motor operation and an adjustable tab-tensioned surface for flat projection. The brochure lists ceiling mounting, wall mounting or ceiling hanging, with optional voice and mobile app control.
- White powder-coated aluminum casing
- Adjustable tab-tension system
- Heavy-duty silent motor
- Flexible installation and control

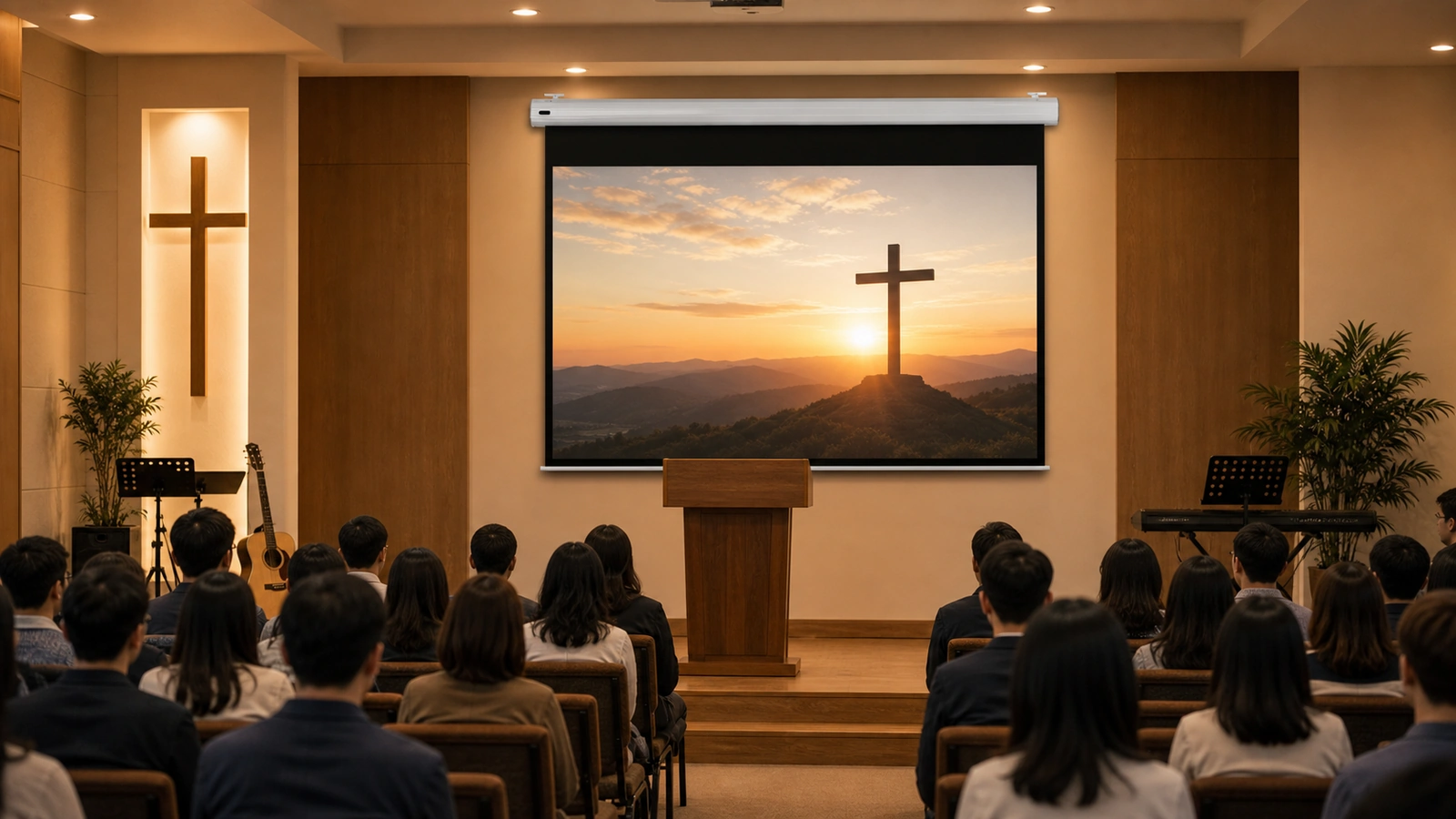

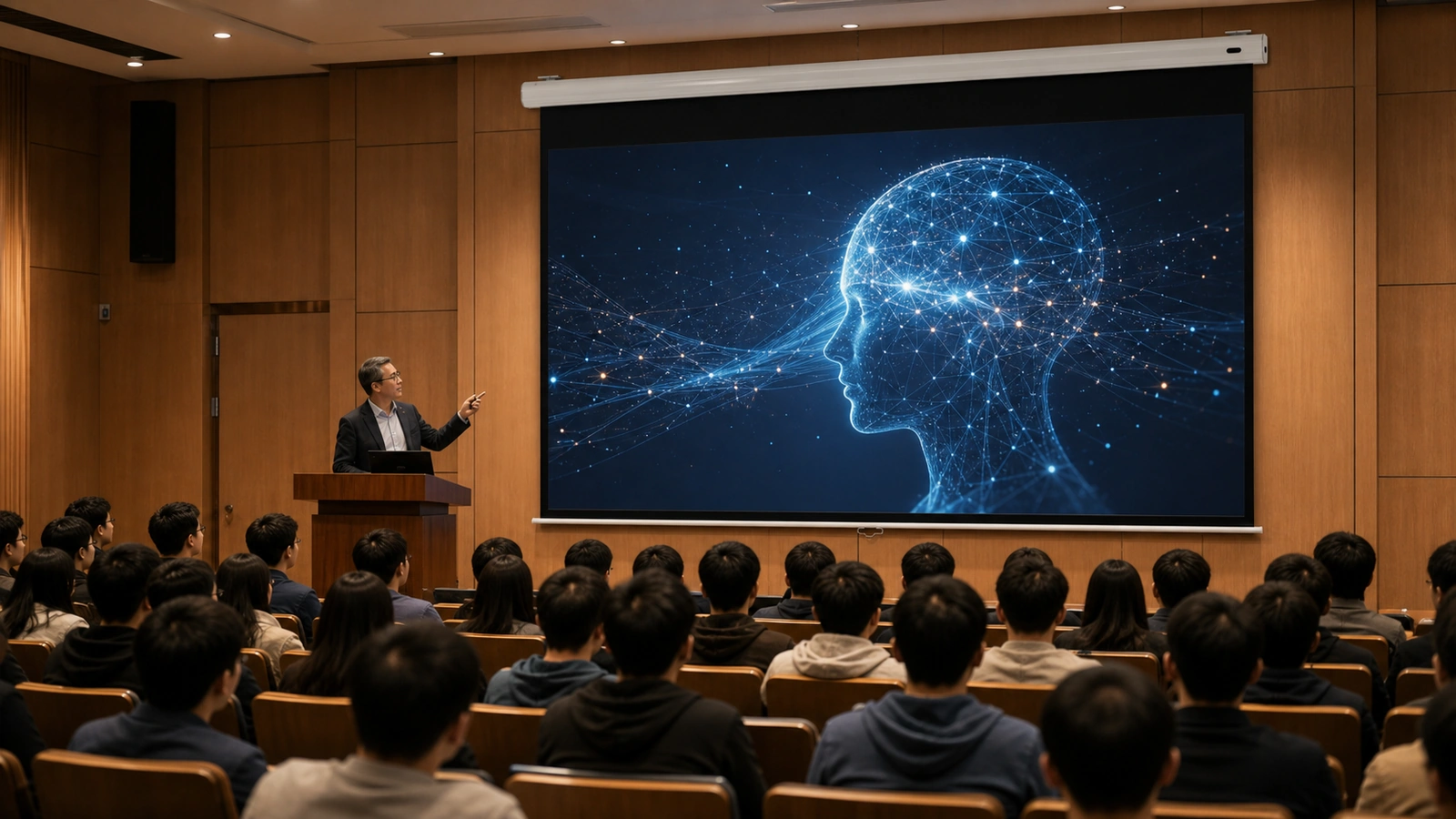

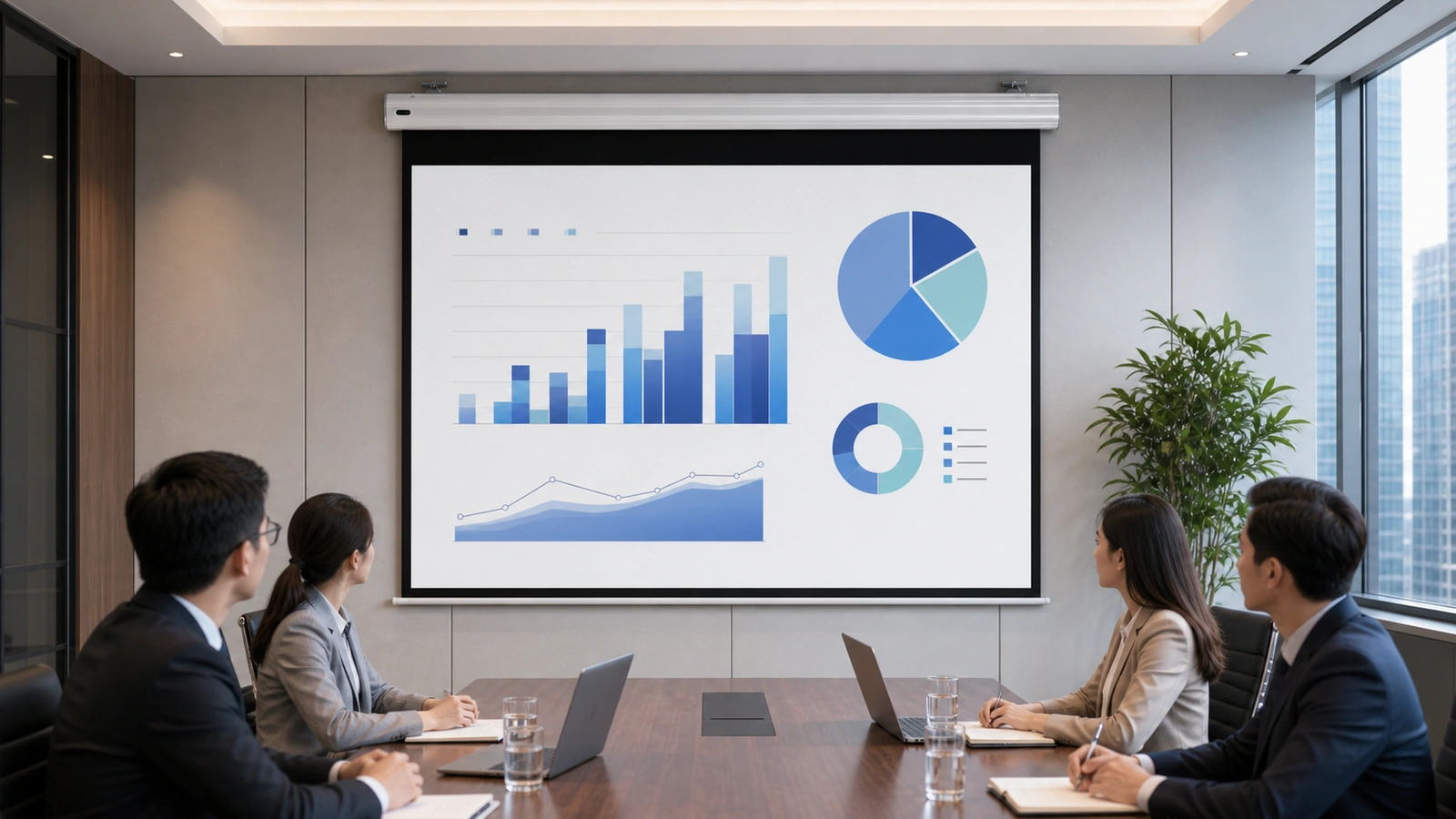

Best-fit Application Scenarios

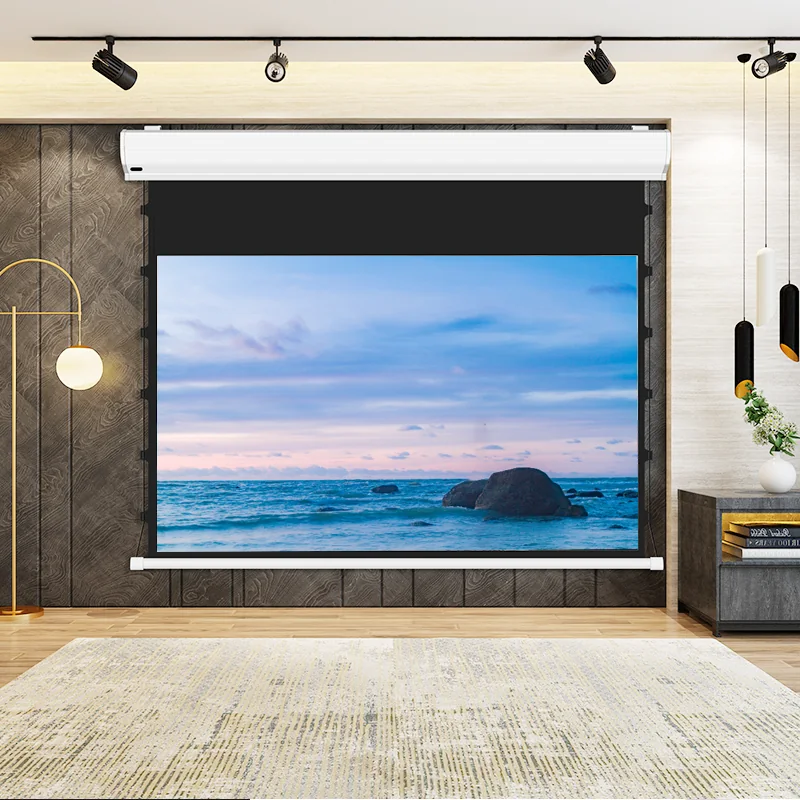

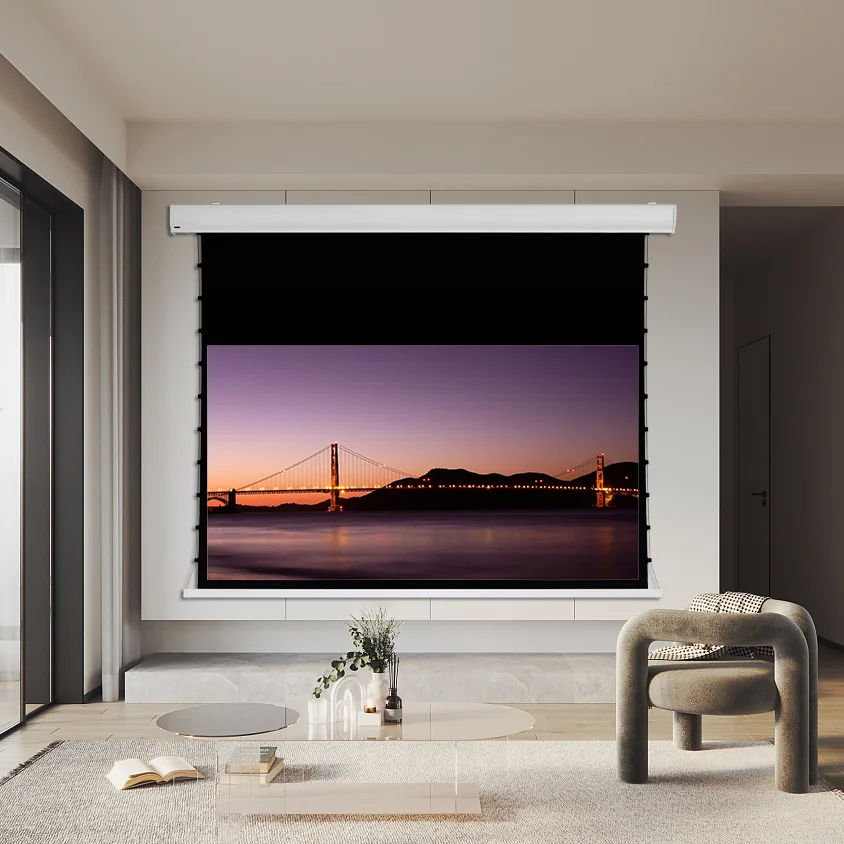

See the aluminum-casing tab-tension screen in a dedicated cinema and a shared living room.
Features & Benefits
White powder-coated aluminum casing
The aluminum alloy extruded frame is finished with white powder coating for a durable, clean housing.
Adjustable tab-tension system
Pull wires, elastic fabric and a weighted slat help keep the screen flat and reduce curling; the tab tension can be adjusted when necessary.
Heavy-duty silent motor
The brochure lists a heavy-duty silent motor with an integrated shock absorber and thermal overload cutout.
Flexible installation and control
Detachable brackets, detachable cable connection, central and manual control ports, built-in remote control and 12V trigger support are listed; Confirm optional voice or app controller availability for the destination market when requesting a quotation.

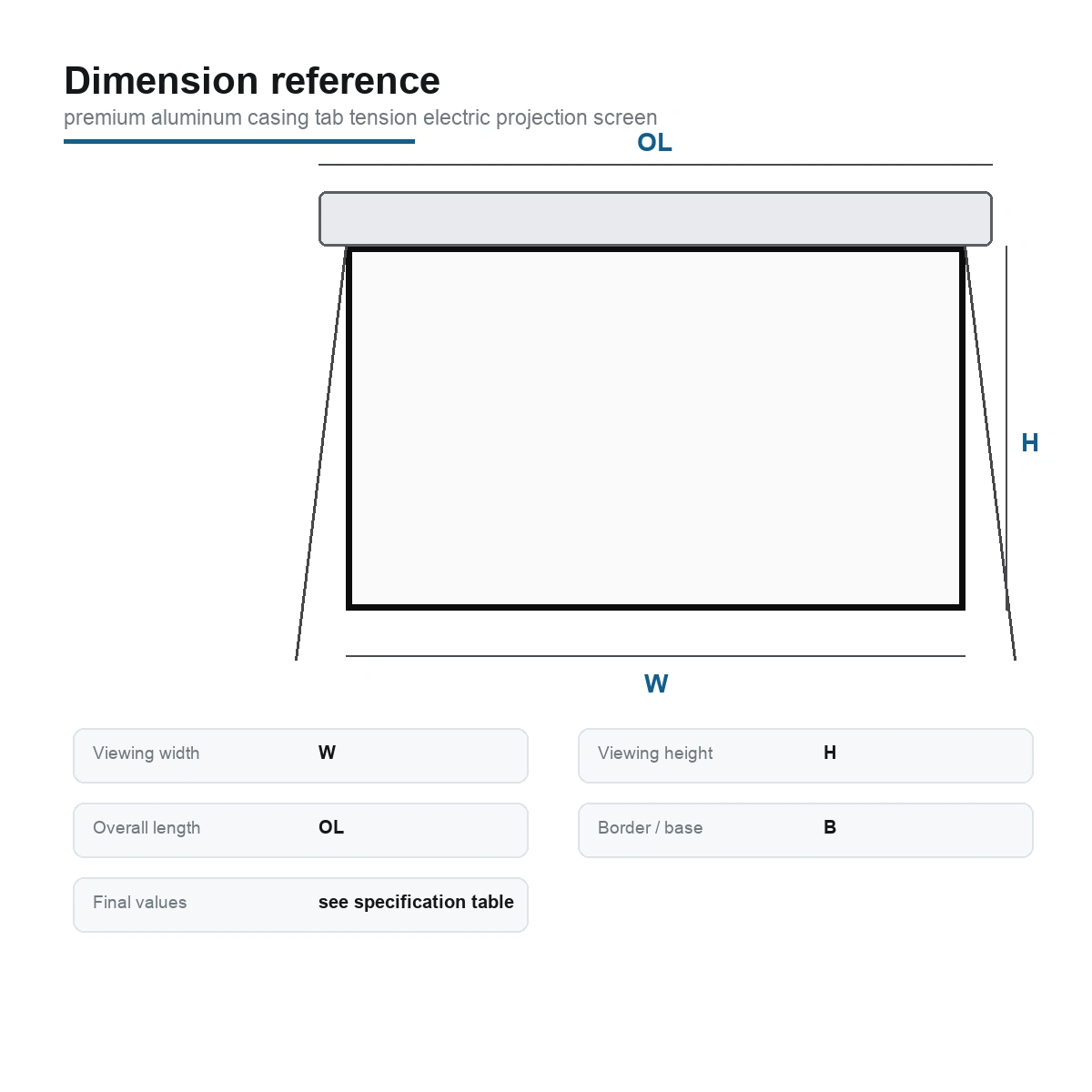

Technical Specifications
| Product Category | Tab-tension Projection Screens |
|---|---|
| Series | High Qualified Tab-tensioned Screen |
| Aspect Ratios | 4:3, 16:9 |
| 4:3 Screen Sizes | 100" (60"x80"), 120" (72"x96"), 150" (90"x120") |
| 16:9 Screen Sizes | 92" (45"x80"), 120" (59"x105"), 135" (66"x118"), 150" (74"x131") |
| Screen Surfaces | FWC: PVC Front Projection Matte White; FGG: PVC Front Projection Silver Grey; BCA: Woven Acoustic Transparent Front Projection Matte White; KGC: PVC Front Projection Silver Grey (Ambient Light Rejecting Series) |
| Casing / Frame | Aluminum alloy extruded frame with white powder coating |
| Installation | Ceiling mounted, wall mounted or ceiling hanging |
| Motor / Control | Heavy-duty silent motor; built-in remote control; central control and manual control ports; supports 12V trigger |
| Power / Operation | Electric projection screen |
| Procurement Confirmation | Confirm the final screen size, surface code and control configuration before approval. |
Product Details

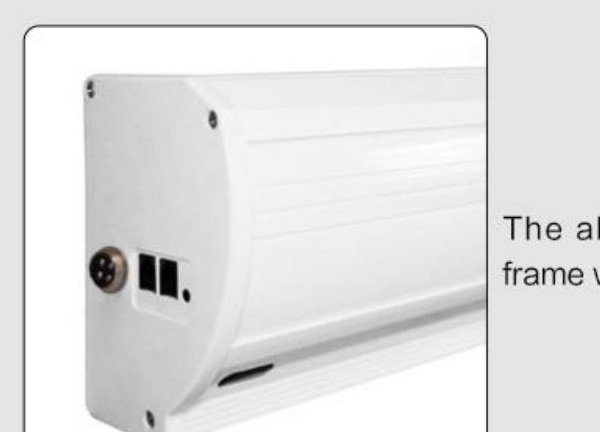

Aluminum casing

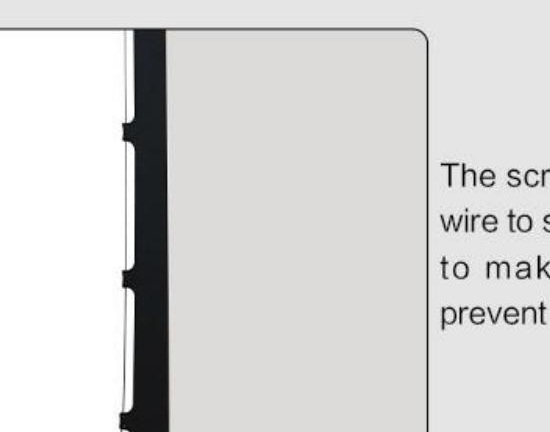

Tab-tension side profile

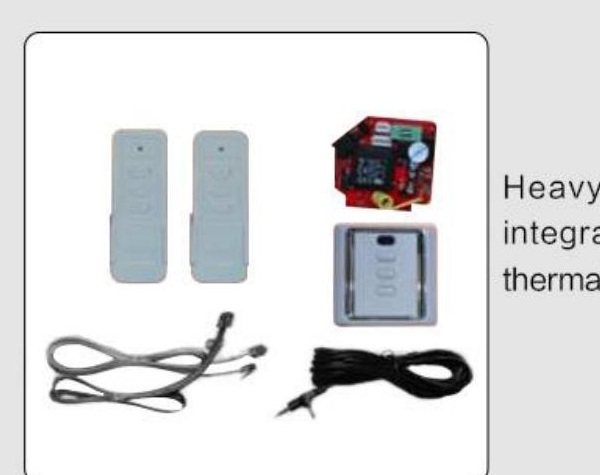

Motor and control accessories

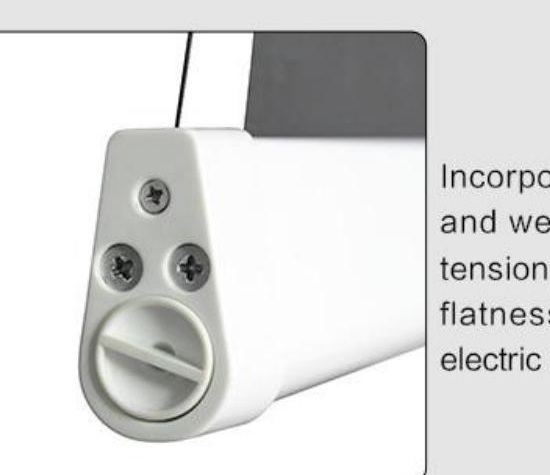

Bottom bar and tension system
Installation & Control
Installation
- Ceiling or wall mounted
Control Methods
- Wireless remote
- Optional voice controller — confirm availability by market
- Optional app controller — confirm availability by market
Downloads
FAQ
What screen sizes and formats are listed for this model?
The brochure lists 4:3 sizes of 100, 120 and 150 inches, plus 16:9 sizes of 92, 120, 135 and 150 inches.
What control options are listed?
The brochure lists built-in remote control, central and manual control ports and 12V trigger support; Confirm optional voice or app controller availability for the destination market when requesting a quotation.
