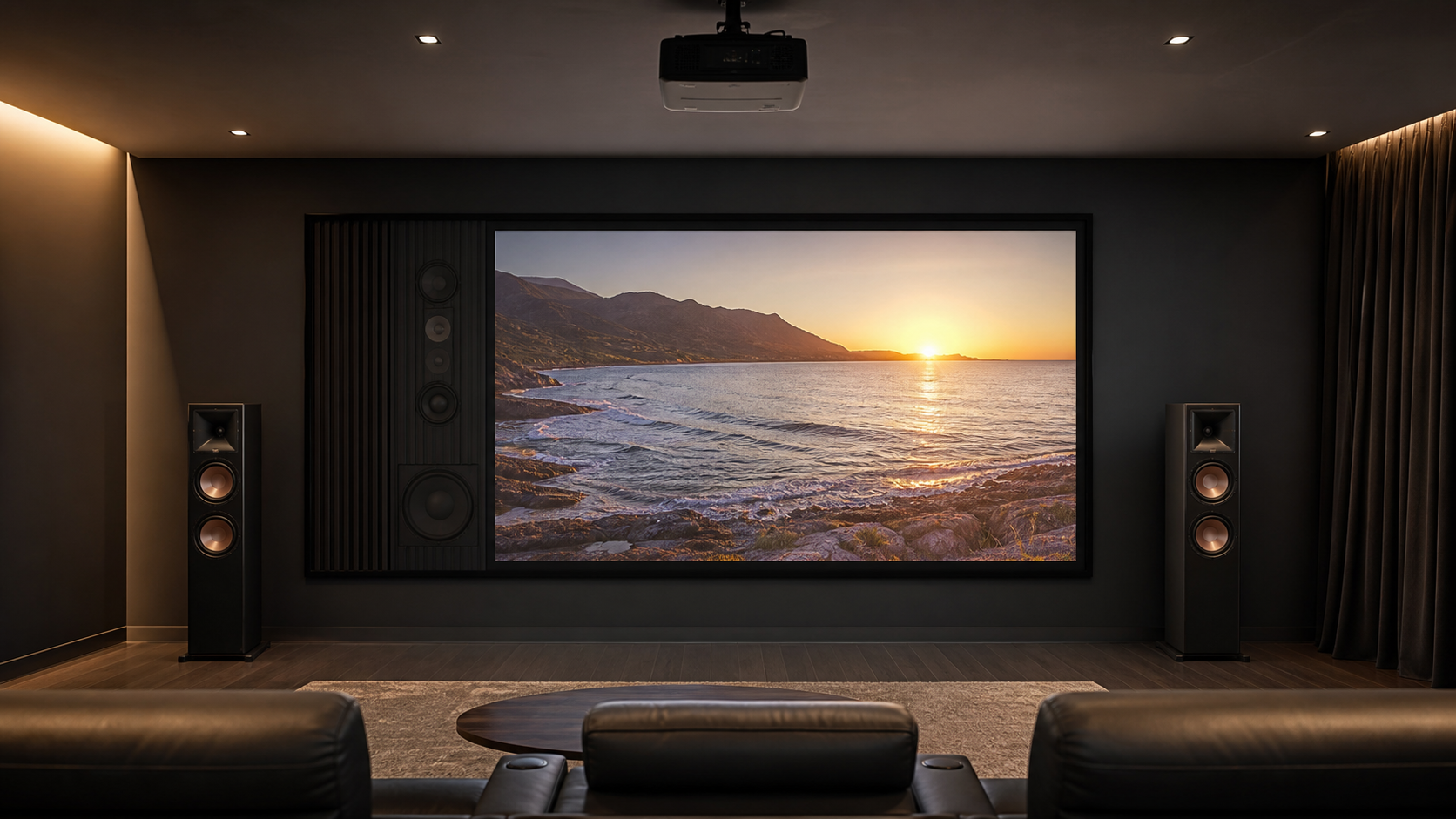

Acoustic Transparent vs Standard Fixed Frame Projection Screens

Quick Answer

Choose an acoustic transparent surface when the design requires a cinema-style speaker wall, a clean front elevation or a very wide image with left, center and right speakers aligned behind the screen. Choose a standard fixed frame surface when speakers can sit beside or below the image, the room needs a predictable wide viewing response, or the project values the simplest installation and replacement process.

The screen is one part of the front wall. Approve the screen, speakers, wall construction, projector and masking strategy as one system. MGF’s fixed frame projection screen range is a starting point for both directions; the exact surface and frame compatibility must be confirmed for the quoted model.

Who This Guide Is For

This guide is for AV integrators, distributors, contractors and project buyers who need a documented selection and project-planning path for this topic before requesting a quotation.

Compare Woven and Perforated Surfaces as Part of the Speaker Wall

Woven surfaces allow sound through gaps between fibres; perforated surfaces use openings formed in the material. Neither construction name establishes the best choice for a room. The proposal needs an acceptable picture from the intended seats and an acceptable audio arrangement behind the screen.

Texture can become visible at closer seats, and a regular surface pattern can interact with the projected image as moiré. Audio needs a separate review because the surface may affect frequencies differently. These are reasons to compare identified candidates under the intended conditions, rather than assign a universal viewing distance or acoustic-loss number. Technical background: Stewart Filmscreen.

Let a viewing task change the shortlist

Assume two candidates look acceptable from the rear seats, but one has distracting texture at the nearest row. That visual result can justify dropping it or reviewing seating. It does not decide the sound result. Similarly, a favourable audio evaluation does not approve image detail from every seat.

Avoid ranking all woven surfaces above all perforated surfaces, or the reverse. Keep the chosen material, screen structure and project conditions identifiable. A standard fixed-frame listing alone does not establish an acoustic configuration, and an unidentified demonstration swatch is not a confirmed supply item.

What a Standard Fixed Frame Screen Changes

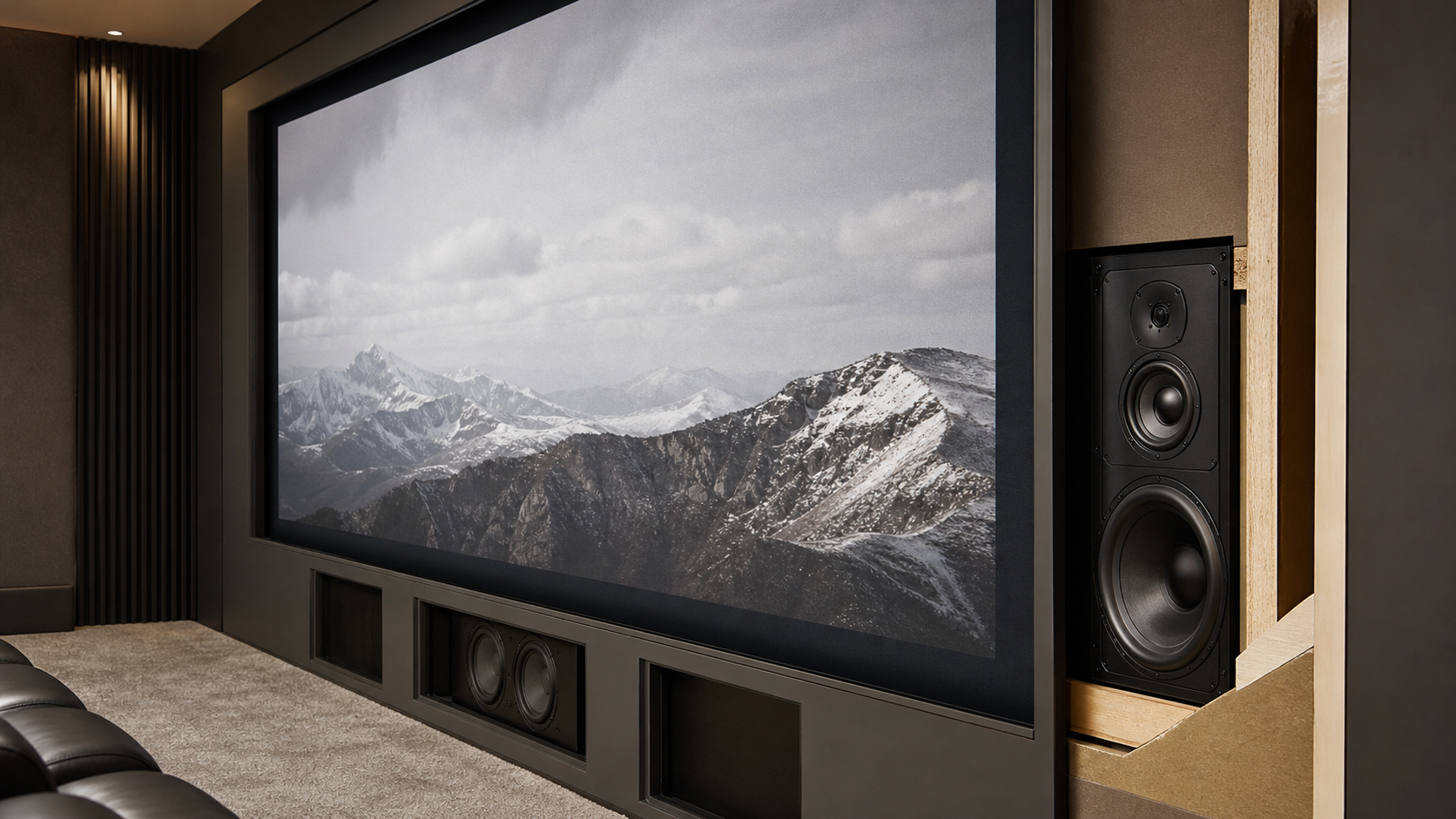

A standard fixed frame screen places the image surface on a rigid frame while speakers remain visible or are integrated into the wall outside the image. The design is often easier to coordinate with a conventional AV layout because the speaker path does not pass through the screen.

The key decision is not simply “standard versus premium.” It is whether the room benefits more from a predictable image surface or from the architectural freedom of a speaker wall. Review screen gain and viewing angle before selecting a material based on brightness alone.

Decision Table

Six Checks Before You Specify the Surface

1. Confirm the speaker wall. Draw the speaker positions, cabinet depth, screen plane and access route. A shallow cavity can change sound response or make service difficult.
2. Measure the closest seat. Texture and weave visibility depend on distance, image size and projector resolution. Test at the nearest and typical seats.
3. Match the projector. Record throw ratio, lens shift, image width, brightness and projector orientation. Short-throw and UST systems require especially careful surface matching; use the projector pairing guide.
4. Check frame compatibility. Confirm whether the chosen fabric can be mounted on the proposed fixed frame, how it is tensioned and how replacement fabric is handled.
5. Review room light. A material can be visually clean in a dark room yet lose contrast in a bright room. Compare samples under the intended lighting rather than a showroom light.
6. Define approval evidence. Keep the sample code, viewing distance, projector model, image size, room-light condition and approval date with the quotation.

Keep Picture and Audio Reviews Tied to One Assembly

Give both teams the same room section. Show the viewing side, screen plane, proposed backing, speakers and surrounding wall construction in order. Use actual project dimensions and applicable product guidance; do not invent one speaker-to-screen spacing for every material.

VIEWING SIDE -> SCREEN PLANE -> PROPOSED BACKING
             -> SPEAKER ARRANGEMENT -> WALL CONSTRUCTION

This is a layer map, not an installation layout. Exact positions and any backing depend on the reviewed assembly. A sample evaluated without those relationships may answer only part of the installed-system question.

Repeat the checks that a design change affects

Assume the picture was reviewed without backing, then a dark backing layer is added to address the proposed rear wall. The earlier result does not close the changed assembly. Reopen the affected layer reviews, rather than declaring the material approved or restarting every unrelated part of the project.

The audio designer should select appropriate measurements or listening checks for the brief. Tie any result to material identity, backing, equipment, method and conditions. For the picture, use representative content at the intended geometry and include the closest and important side seats. Keep sample selection separate from acceptance of the completed installation.

Close the decision with the visual reviewer, audio reviewer and exact screen configuration linked. If they evaluated different sections or layers, reconcile that difference before treating their approvals as one system result.

When MGF Should Be Involved

For a standard fixed frame, send visible image size, aspect ratio, wall condition, frame border preference and projector position. For an acoustic transparent build, add speaker type, speaker depth, cavity dimensions, closest seat distance and whether the project uses front or rear projection. MGF can then confirm material availability, frame compatibility and the information required for a controlled quotation. See Factory & Production for production context and the Partner Program for distributor planning.

MGF Product Direction

MGF can compare suitable product directions once the project brief confirms visible image size, aspect ratio, projector geometry, material direction, mounting condition, control requirements, quantity and destination market. The final quotation should identify the exact model, compatible material, drawing and approval information rather than treating a generic guide as a product specification.

Project / OEM Checklist

• visible image width, height and aspect ratio;
• projector model, lens position and image geometry;
• room or venue use, seating and ambient-light condition;
• proposed material, structure, mounting and service access;
• power, control and installation responsibility where relevant;
• required quantity, destination market, drawing revision and approval owner.

Continue Your Project Planning

• Screen Materials Guides
• Fixed Frame Projection Screens
• Home Theater Applications
• Factory & Production
• Acoustic Transparent Screen Guide
• Projection Screen Gain and Viewing Angle Guide
• Contact MGF Screens

FAQ

Does acoustic transparency reduce image quality?

It can introduce texture, moiré or some light loss depending on the surface and projector. Test the proposed material at the intended size and seating distance.

Can any fixed frame use an acoustic surface?

No. Confirm fabric dimensions, attachment method, tensioning and frame compatibility for the exact model.

Is acoustic transparent always better for a home theater?

Only when the speaker-behind-screen layout solves a real design requirement. If speakers can sit outside the image, a standard surface may be easier to approve and maintain.

What should be included in a material sample approval?

Record the sample identifier, projector, image size, lighting, viewing distance, speaker layout when relevant and approval owner.

Request a Screen and Speaker-Wall Review

Send MGF the projector, required image, nearest seats and speaker-wall section, including the proposed backing. Identify the material candidates or the layer change being reviewed. The enquiry can then address documented material/frame combinations while the audio and picture decisions stay tied to the same assembly.
