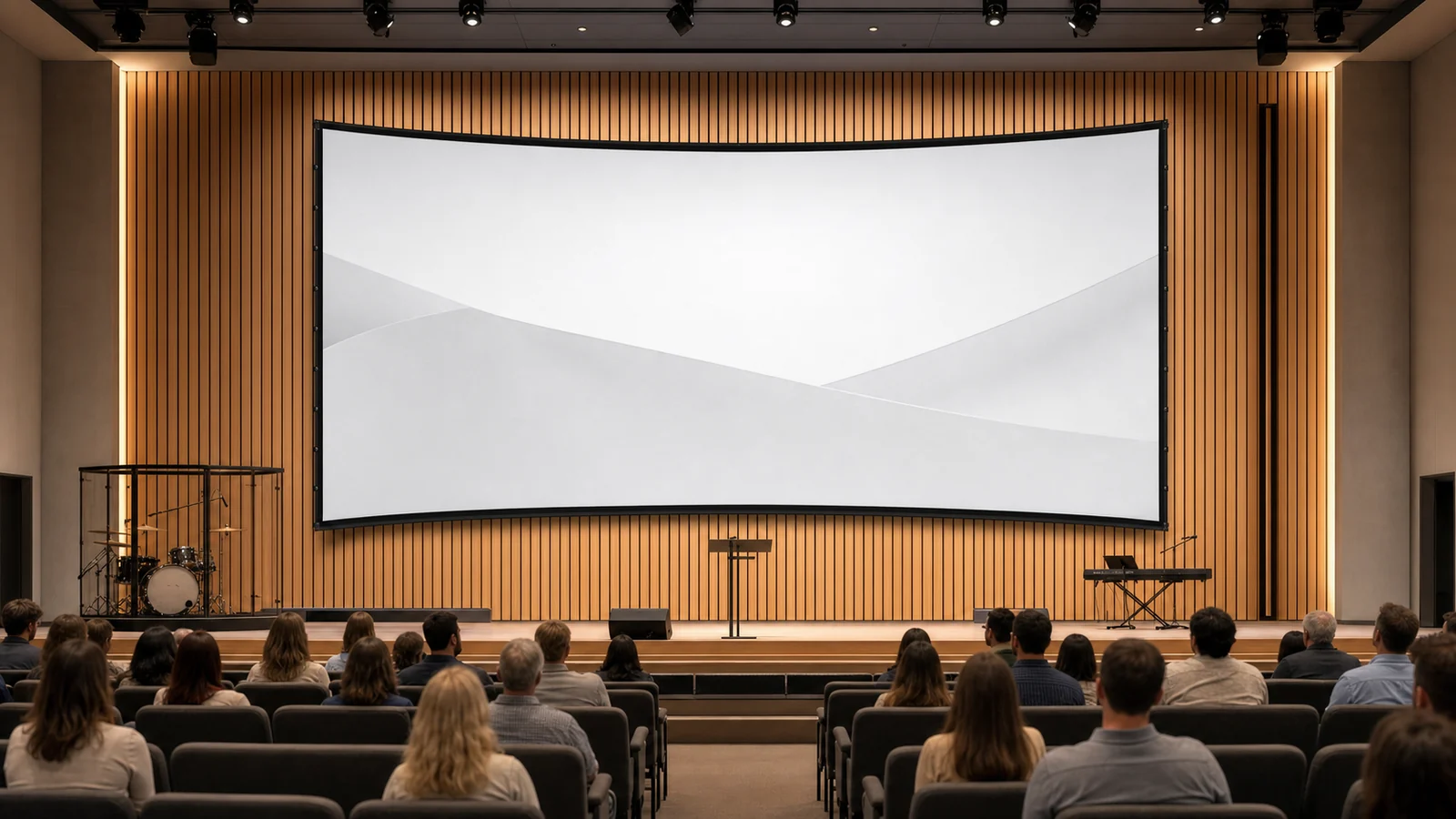

Church and Auditorium Projection Screen Selection Guide
A church projection screen must serve people across a wide, deep room. Lyrics, speaker notes, livestream video and detailed announcements all place different demands on image size and readability. The screen also has to coexist with architecture, lighting, loudspeakers and safe access—often for years.
Use this sequence to turn “we need a large screen” into a specification an AV integrator and manufacturer can verify.
In This Guide
Start With Content and the Farthest Viewer
List the smallest content that must remain readable: lyric lines, scripture, presentation text, captions or wayfinding. Test that content from the farthest and widest occupied seats. A cinematic image that feels large can still be too small for text.
Define visible image width and height, not diagonal alone. Confirm aspect ratio against the content system and projector. Our screen size and aspect-ratio guide provides the basic workflow.
Large products require engineering beyond simply scaling a small model. Confirm the offered size, frame or roller structure, fixing points, access and packaging for the exact configuration.
A delivered two-screen hall and the checks for your seating plan
The 120-seat church project uses two 150-inch, 16:9 Standard Electric screens with MWE White PVC Fabric, one for each seating block. Each screen has separate wired control. Shared video does not establish synchronized screen movement.
The public case does not publish a minimum font size or measured rear-seat result. For your hall, save the actual lyric/scripture slide, smallest essential text and line count; test the rear and side seats of both blocks with the stage in use. Record image-bottom position, standing people/lectern obstructions, lighting scene, reviewer and any content enlargement required.
Screen direction
Selection condition
Reason to exclude or revise
Fixed frame
Permanent image wall with coordinated speaker and frame space
The platform needs the image wall clear between services.
Retractable electric
Approved overhead support, screen travel and service access
Travel or housing conflicts with stage activity or access.
Large curved frame
A reviewed radius, seating plan and lens/material combination
Room size alone supplies no reason to choose curvature.
Send seating/lectern plans, the smallest required slide text, projector/lens, lighting, speakers and installation conditions. Use the existing hall checklist below to record project values. Review Your Hall and Content.
Review each use of a multipurpose hall
Prepare separate layouts for presentations, performances and non-projection activities. Mark occupied seats, furniture, circulation, stored equipment and the deployed image. Record which layout governs the image requirement and who changes the room between uses. Approve the screen against those layouts rather than assuming that a successful presentation setup covers every activity in the hall.
Protect Sightlines

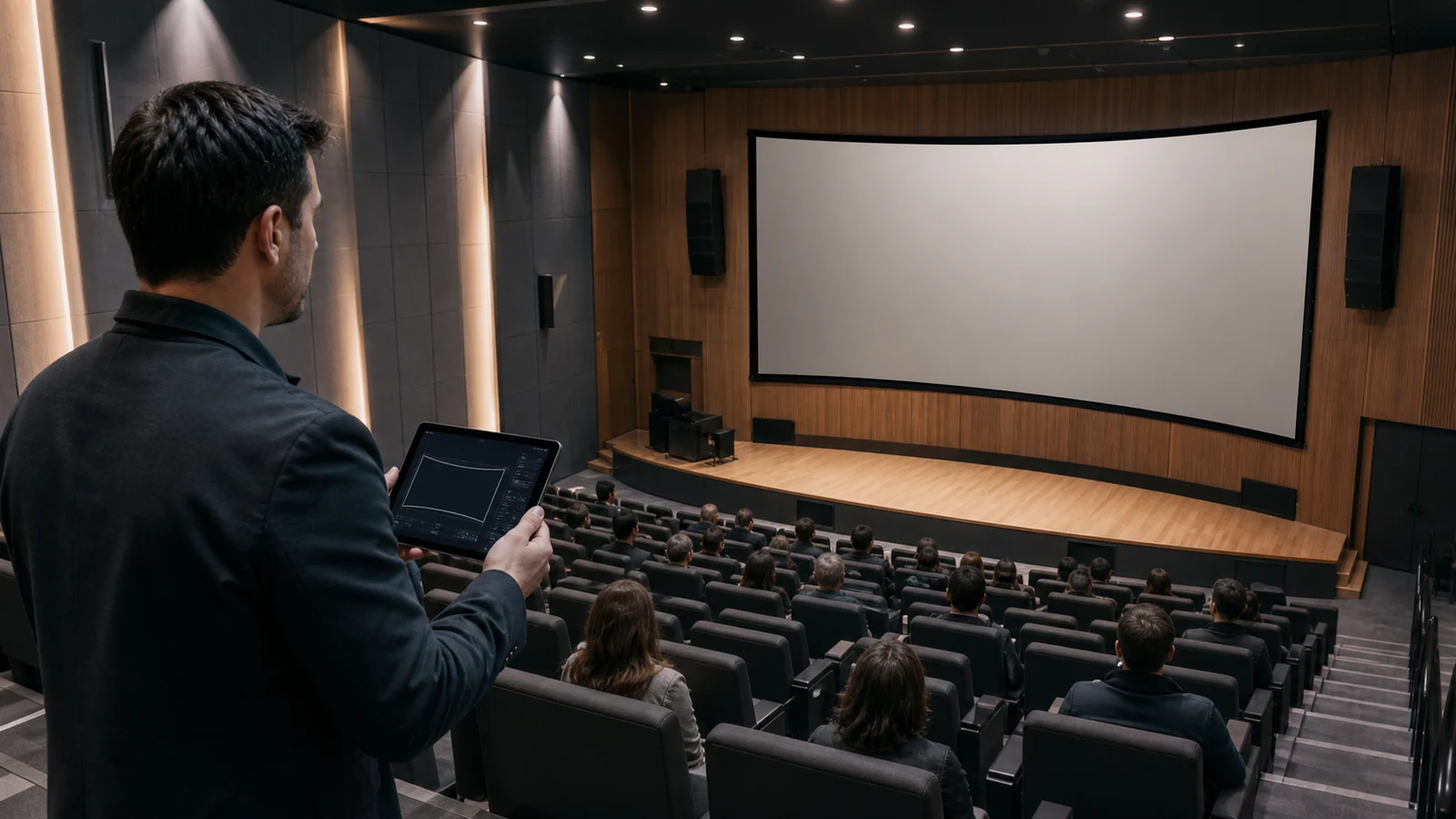

Check the bottom of the visible image against standing presenters, musicians, lecterns and front-row heads. Check the top against balcony overhangs and comfortable viewing angles. Side seats must not be blocked by columns, decorative elements or speaker arrays.
When one central image cannot serve the complete seating plan, two correctly placed screens may work better than one oversized screen. That is a room-design decision, not a screen-material problem.
Coordinate Projector and Light
Map stage lighting, daylight, house lights and livestream fixtures. Keep direct light off the viewing surface wherever possible. Then verify throw ratio, lens position, brightness against image area and mounting access using our projector pairing guide.
Matte white supports wide seating in controlled light. Grey or selected ALR materials can be considered where light control is limited, but viewing width and projector geometry must be tested. A material name does not replace an on-site sample.
Plan Around Loudspeakers
If the front speakers must sit behind the image, evaluate an acoustic transparent surface and the full speaker-wall design. Test texture, moiré, light loss and sound behavior with the intended system. Our acoustic transparent screen guide explains the approval process.
If speakers sit beside or above the screen, protect both the image sightline and sound coverage. Do not enlarge the screen until it conflicts with the loudspeaker design.
Installation and Service Checklist
Structural support verified for the exact product and building condition;
Housing or frame location coordinated with architecture and fire systems;
Power and control planned before finishes close;
Safe access provided for screen, motor, projector and controls;
Screen travel kept clear of stage equipment and people;
Operating instructions available to staff and volunteers;
Surface cleaning and fault response documented;
Model, wiring and approved material recorded at handover.
Provide room drawings, seating depth and width, balcony information, smallest content, projector model, light conditions, speaker locations, target visible size, installation preference and quantity. MGF offers fixed-frame, curved fixed-frame, electric, tab-tension and portable screen families; exact large-size and material combinations are confirmed per project.
FAQ
What screen type is best for a church sanctuary?
A fixed frame suits a dedicated image wall; a motorized screen suits a multipurpose platform. The choice depends on architecture, speaker placement, flatness and service access.
How large should an auditorium projection screen be?
Size it from the farthest viewer and smallest required content, then verify sightlines, projector geometry and available structure. Diagonal size alone is not enough.
Should a church use an acoustic transparent screen?
Use one when placing the main speakers behind the image materially improves sound and layout. Test the exact surface with projector, seating and speaker system.
Is ALR suitable for an auditorium?
It can help in compatible light and projector geometry, but directional behavior may affect wide seating. Control direct light first and approve a sample from center and side seats.
Can a large screen be recessed into the ceiling?
Selected systems can, but structure, housing size, access, power, controls and screen travel must be coordinated before construction closes.
Plan the Screen as Part of the Venue
Ready to define a worship-space purchase? Use the Church and House of Worship solution to connect seating, installation and operating requirements to product review and an enquiry.
Send MGF your room, seating, content, projector and installation information for a project-based screen recommendation.
Inputs MGF Needs for a Church or Auditorium Review
Image and audience
Visible image width/height and aspect ratio
Nearest, furthest and widest seating positions
Projector model, throw geometry and intended mounting point
Text size, camera/IMAG use and typical content
Building and operation
Ceiling/structure type, mounting height and verified load path
Power side, controller location and required control interface
Safe maintenance access and a route for removal/replacement
Door, lift, stair and loading limits for transport to the room
High-ceiling, service and control notes
Confirm the support structure, electrical isolation, cable routing and service platform before production. Where a retractable screen is considered, available controls may include wall/manual control, remote control, trigger or central-control interfaces, but availability must be confirmed for the applicable model and order. Follow the approved installation manual; structural, electrical, fire and accessibility compliance remains subject to the project engineer and local authority.
Case-study boundary: a named venue, product configuration, projector or result will be added only after the project record and image authorization are verified.
