Floor-Rising Projection Screen Guide: When to Choose It and How to Specify

Designing a Cabinet Around a Motorized Floor-Rising Screen — illustrative room setting
Illustrative scene; confirm the accepted product configuration and project installation details.

A floor-rising projection screen is a retractable screen that deploys upward from a base enclosure. It is useful where the ceiling or wall cannot carry a screen, the room needs a clean sightline when the screen is stored, or furniture can integrate the base. It is not automatically portable: the enclosure, power, controls, lifting structure, clear deployment path and service access must all be planned before the model is selected.

In This Guide

    Where a Floor-Rising Screen Is the Right Answer

    Who This Fits—and Who It Does Not

    Good fitNot a fit until resolved

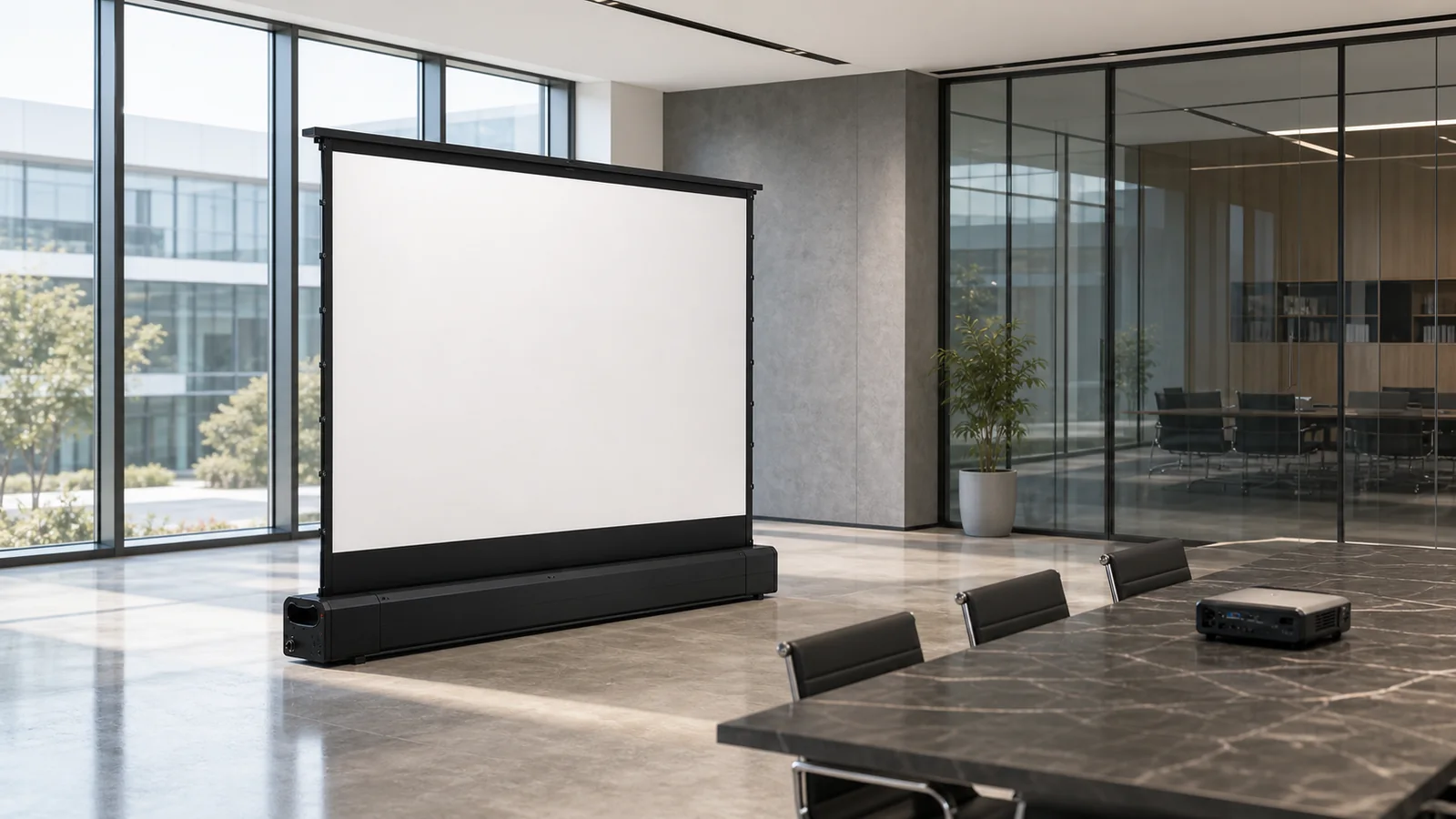

    Glass walls, restricted ceiling work or spaces that cannot support overhead installationA deployment path crossed by people, doors, movable furniture or cables
    Rooms where the screen must disappear below the viewing lineNo stable, level location for the base enclosure
    Custom furniture or credenza projects with coordinated drawings and ventilationFurniture specified before the enclosure, lid travel and service access are known
    Fixed-room use with planned power and controlsA frequent carry-in/carry-out use that needs a genuinely portable format

    Start with the Floor-Rising Screens family, then compare the exact model, material and deployment height against the room drawing.

    Floor-Rising vs Ceiling-Mounted vs Portable Folding

    Five-Format Comparison

    FormatBest starting conditionMain planning issue
    Motorized floor-risingPermanent room without suitable overhead mountingBase footprint, upward path, power, controls and service access
    Recessed ceiling motorizedIntegrated architecture with ceiling accessStructure, recess, power, access panel and drop position
    Surface-mounted wall or ceiling motorizedPermanent retractable use with an available support surfaceBracket load path, housing alignment and visual integration
    Manual floor pull-upSimple occasional use without motorized controlManual setup, storage, handling and verified image height
    Portable foldingEvents or repeated temporary setupAssembly labor, clear floor area, transport cases and anchoring

    If the main decision is powered operation versus occasional manual setup, compare motorized vs manual projection screens before choosing the installation format. For repeated event setup, review the portable screen selection page alongside the floor-rising model.

    How Floor-Rising Screens Are Built

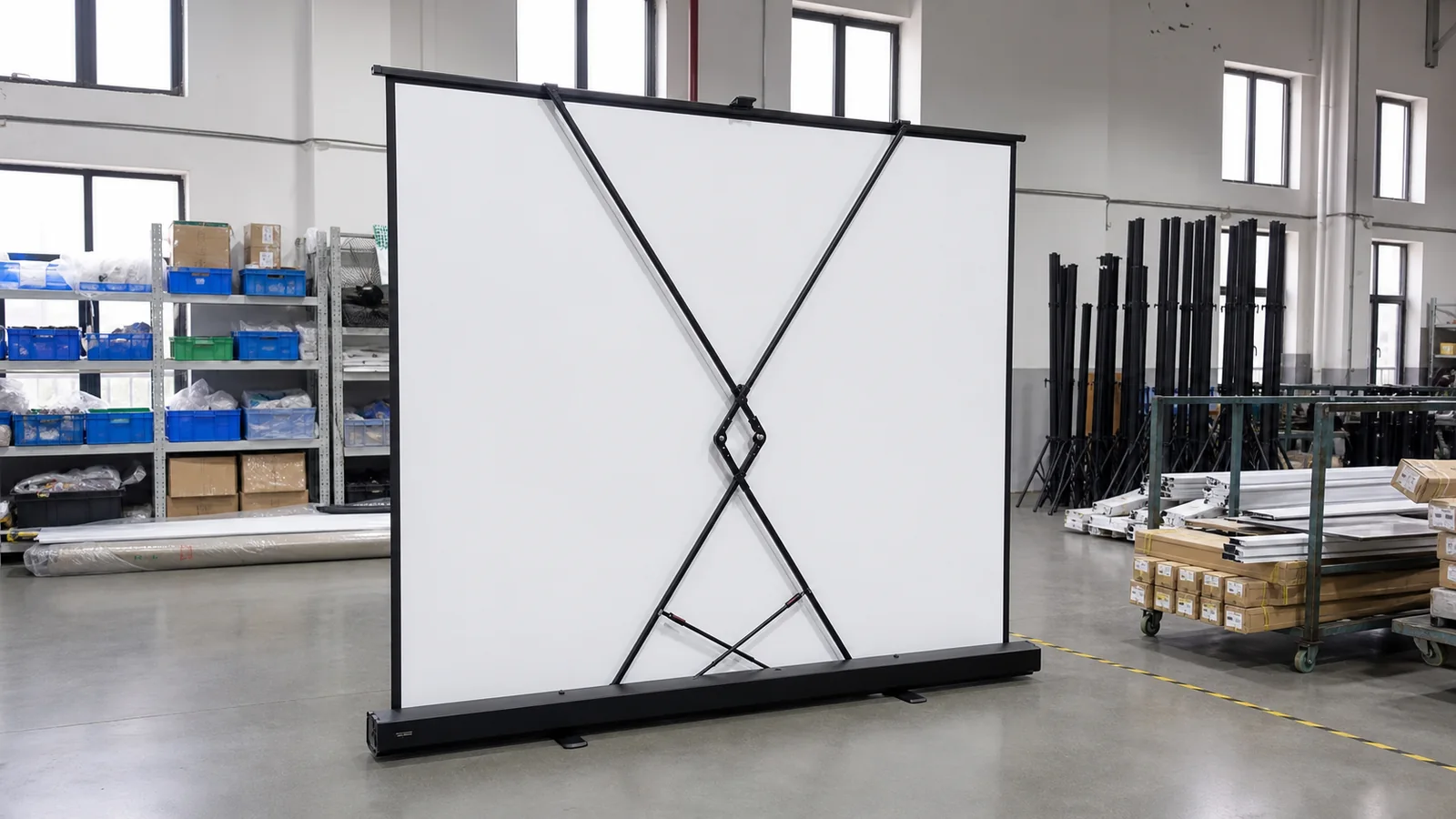

    The system combines a base enclosure, internal roller and surface, lifting or support structure, top bar, motor or manual mechanism, control components and model-specific safety features. In tab-tensioned versions, side-tension components work with the support structure and material to manage surface planarity.

    The enclosure is part of the installation, not packaging. Its footprint, lid or slot, cable entry, ventilation, anchoring, level condition and removable service areas must match the furniture and floor. Review the current drawing for the Motorized Floor Rising Tab-Tension Projection Screen before finalizing millwork.

    Planning the Room Around a Floor Unit

    Coordinate the visible image, projector sightline and enclosure before the cabinet or floor finish is released. Confirm that nothing can enter the moving path and that users can reach approved controls without touching the surface.

    Release Furniture Only After the Complete Product Layout Is Known

    A cabinet must accommodate the stored body, full operating envelope and authorised service route of the exact floor-rising screen. The visible image opening cannot replace those three reviews. If an envelope is unresolved, retain a reversible concept or hold the final joinery detail rather than treating a clean rendering as approval.

    Designing a Cabinet Around a Motorized Floor-Rising Screen — Use a section that contains the whole decision
    Illustrative scene; confirm the accepted product configuration and project installation details.
    SIDE SECTION — variables to show
    Deployed image plane
    Cabinet opening / projecting lips / removable boundaries
    Actual full travel envelope and screen body
    Support plane, connections and authorised removal direction

    PLAN — add internal dividers, speaker bases and surrounding furniture.


    This is a design-variable sketch, not an MGF mechanism or lid path. Use the ordered model's actual geometry. The Motorized Floor Rising Tab-Tension Projection Screen is the product direction when floor-level retraction serves the room; it does not establish cabinet approval or UST compatibility.

    A cabinet decision table

    ConditionRelease decision
    Stored body, movement and service routes reviewedProceed to the coordinated furniture detail
    Only body outside dimensions knownHold final slot, permanent trim and internal dividers
    Opening lip or divider enters travelRevise furniture or placement before fabrication
    Insertion works only before a fixed worktop is fittedResolve later extraction/service before accepting the sequence
    Screen and projector geometry conflictResolve the optical layout with the furniture arrangement

    Assume a 2,500 mm body in a 2,600 mm cavity. It leaves 100 mm total, or 50 mm per side when centred. These are hypothetical dimensions, not a product size or clearance. The result only describes stored-body fit. An end service task or an operating component outside that body can change the decision.

    An open bay can retain access while leaving more enclosure visible. A removable top/front detail can support concealment where it serves the reviewed route. Permanent enclosure needs demonstrated operation and extraction in the completed furniture. Choose the concept from those conditions, not appearance alone.

    Fixing requires a permitted product interface

    A desire for a permanent location does not establish permission to drill the case or use unlabelled holes.

    Product-document statusDesign response
    Defined method applies to the exact versionCoordinate the permitted points/accessory with approved site support
    Another documented placement method appliesAssess it against the room objective
    Proposed fixing is prohibited or not establishedChange the concept or hold the detail pending review

    The product interface and receiving floor/cabinet are separate. A permitted product point does not approve a substrate, anchor or load design. In an assumed drawing, two bolts pass through an unlabelled casing area. Remove that unconfirmed detail from release and obtain the applicable interface rather than treating the joinery sketch as permission. Include movement and service consequences in any approved restraint.

    Keep the exact supply and control requirements, cable entry and local control/integration schedule with the approved layout. Confirm required ventilation and separation from heat sources from the supplier instruction before furniture release. For the separate optical review, use the ALR, CLR and UST pairing guide.

    Preserve Service Routes and Coordinate Surrounding Audio Equipment

    Normal deployment can work while service is blocked. Draw the authorised access/extraction path separately, with the task and direction identified for the supplied configuration.

    Planning Speakers Around a Floor-Rising Screen — A filled overlap example
    Illustrative scene; confirm the accepted product configuration and project installation details.

    Removable furniture must remain removable

    Possible authorised direction/taskFurniture interface to review
    Identified end approachSide wall, divider and adjacent cabinet
    Identified top accessWorktop, removable lid and permanent trim
    Identified front removalFront panel, drawers and room preparation
    Complete unit extractionFull envelope and route through the completed room

    These are conditional directions, not MGF service claims. Apply only the actual model procedure. Identify each affected furniture panel's removal direction and owner. A panel labelled “removable” can be locked by surrounding trim after installation.

    Assume the unit enters before a permanent worktop closes. If the authorised service route uses that opening later, a closed top plus closed ends/front traps the intended route. A genuinely removable detail with a reviewed extraction path creates a different design outcome. A movable table can be part of a documented preparation plan; destructive removal of fixed joinery should not be an undocumented maintenance method.

    Separate travel overlap from acoustic distance

    Overlay the complete speaker cabinets, stand bases, brackets and cables with the screen's approved operating envelope. Add height/projections in section; a narrow speaker column does not represent its base.

    Assume a layout reserves a screen envelope from x = -1.40 to +1.40 m. A right speaker base spans +1.30 to +1.65 m in the same depth zone. The 0.10 m overlap identifies a physical conflict in that hypothetical plan. It supplies no universal gap or actual MGF envelope.

    Audio layoutPhysical/access reviewSeparate audio review
    Speakers beside the imageFull base, bracket and cable outside travelAudience coverage and equipment requirements
    Centre speaker belowTop projection and image sightlineIntended sound position
    Speaker behind imageShared operation and service spaceExact surface and complete sound-transmission arrangement
    Subwoofer in nearby furnitureEnclosure and access clear of movementSuitability of the location for the acoustic brief

    Tab tension does not establish acoustic transparency. A speaker behind the image requires its own material/audio assessment. Repositioning a base to solve an overlap still requires the other equipment's requirements and service check.

    Keep the Reviewed Room Layout Available at Every Use

    Furniture and temporary equipment can return to the travel zone after the installation is accepted. Carry the final layout into a short facilities card.

    Discussion / stored → room host restores the reviewed layout
    Presentation → operating zone clear; supplied operating procedure applies
    Workshop / other use → temporary equipment in its own storage location
    Changed screen-use layout → AV review before use

    Pre-use checkCommon changing objectResponse
    Travel areaChair, bag or spare tableRestore the approved position
    Projecting itemCabinet door, board or curtainRestore the accepted room condition
    Cable/temporary equipmentSpeaker lead or demonstration kitResponsible person restores the reviewed route
    Visible conditionDamage or unusual conditionFollow model/site support guidance and hold affected use

    Do not operate to push an obstruction away or repeatedly run a fault. The room host owns the start check and reset. An assumed spare table parked against the stored case needs a designated storage position; original installation acceptance cannot prevent tomorrow's layout change.

    Specifying a Floor-Rising Screen for Purchase

    The RFQ should connect room geometry to a named configuration. For repeated dealer or OEM orders, keep the approved drawing, finish, controls, packaging and acceptance method under revision control.

    Dealer/OEM fieldRequired project information
    Image requirementVisible width and height, aspect ratio, black border/drop and viewing height
    Projector and materialProjector model, throw type, position, surface direction and sample status
    Enclosure integrationBase dimensions, finish, furniture/floor interface and service clearance
    OperationPower, controls, trigger/integration, user access and deployment frequency
    Commercial scopeQuantity, destination, branding, manuals, packaging and spare-part discussion
    AcceptanceDrawing revision, sample or finish approval, functional check and responsible sign-off

    For repeat sourcing, define the approved model, material, finish, controls, quantity and destination in your OEM inquiry. Review Factory & Production and OEM & ODM Projection Screens for supplier context; the project quotation and approved drawing remain controlling records.

    Use the screen materials and sample options to identify the surface for review, then use the motorized screen control integration guide to describe the required interface. Confirm the exact material and controller against the selected floor-rising model before approval.

    Review a Model and a Room Application

    For a powered floor-rising installation, review the Motorized Floor Rising Tab-Tension Projection Screen. Confirm the enclosure, deployment height, material and operating requirements for the size you need.

    Configuration reference: MFR, 100-inch, 16:9

    The 100-inch size is listed in the current model range. The product page lists a tubular motor, wireless remote and USB trigger; surface options include PVC Soft White, PVC Grey, Grey 3D Metallic, UST Black Grid ALR and Photon White. Confirm the selected surface and projector together.

    • Size and movement document: request the selected-size drawing number, revision and date, with stored enclosure length/width/height, normal deployed image height and full operating envelope. A cross-section alone does not define the furniture opening.
    • Placement and service document: identify the permitted support/retention method, authorised access direction and complete-unit extraction route in the finished furniture.
    • Power and control document: confirm the supplied voltage/frequency and rated input, controller version, connection diagram and ordered interfaces. The remote/USB listing does not complete that electrical record.

    The revisioned size and service drawing remains to be confirmed before joinery release; this reference does not supply cabinet cut-out or maintenance-clearance dimensions.

    The Garden Room Cinema case provides an application to review alongside the model information. Use the case to understand the room arrangement; use the current model drawing and specification to approve your own installation.

    Room requirement → published configuration. The homeowner wanted a cinema image without a permanent screen occupying the wall, while coordinating glazing, the projector and nearby furniture. The published three-seat solution uses a 100-inch, 16:9 MFR floor-rising screen with UST Black Grid ALR material, a nearby UST projector, wireless remote operation and adjustable shading. Retraction restores the room for everyday use.

    The case does not publish the projector brand/model, dimensioned furniture section, complete travel/service envelope or technical acceptance results. For a similar room, mark the actual nearest/side-seat sightlines, projector light path and removable service panels on your section. Do not derive cabinet dimensions or a universal UST placement from the case image.

    If the requirement is frequent transport between rooms, also compare the manual floor pull-up screen. A manually carried setup and a furniture-integrated motorized unit have different handling and installation requirements.

    Common Mistakes With Floor-Rising Screens

    • Treating the unit as portable without checking weight, handling and intended duty.
    • Designing the furniture opening before receiving the current model drawing.
    • Ignoring the top bar, lid and surface path when checking clearance.
    • Allowing chairs, doors, cables or décor to enter the deployment zone.
    • Specifying screen size without coordinating viewing height and projector geometry.
    • Hiding the enclosure so completely that service access is lost.

    When to Stop Operation, Request Service or Consider Replacement

    Observed conditionSafe next step
    Obstruction, trapped cable or furniture contactStop operation, isolate the cause and do not force the screen
    Uneven travel, unusual noise, repeated stalling or unstable supportStop repeated cycles and request model-specific service guidance with photos or video
    Damaged surface, top bar, support arm, enclosure or control cableKeep the unit out of service until the supplier or qualified technician reviews it
    Changed room, image size, projector geometry or furnitureRe-check fit; modification may be unsuitable even if the existing unit still operates
    Repair cannot restore safe travel or the required image conditionCompare authorized repair with replacement using the current room and acceptance requirements

    Do not pull the surface, bypass safety behavior or adjust internal tension without the current model instructions.

    FAQ

    Is a floor-rising screen portable?

    Not necessarily. Many models are intended for a stable room position or furniture integration; verify handling and intended use for the exact model.

    Can the base be fully hidden in furniture?

    Only when the model drawing, movement, ventilation, cable entry and service access are coordinated with the furniture design.

    Is a floor-rising screen suitable for UST?

    Only when the exact screen construction, surface and projector geometry are confirmed together.

    What should be approved before an OEM order?

    Approve the named configuration, drawing revision, material, finish, controls, branding, packaging and written acceptance method.

    Check a Floor-Rising Model Against Your Room

    Send MGF the selected size and combined furniture/room section with the limiting operating, fixing and service questions marked. Close those product questions before the joinery release, then retain the approved layout and daily reset card with the room's instructions.

    Request Floor-Rising Model Documents and a Furniture Review.
